2311776 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

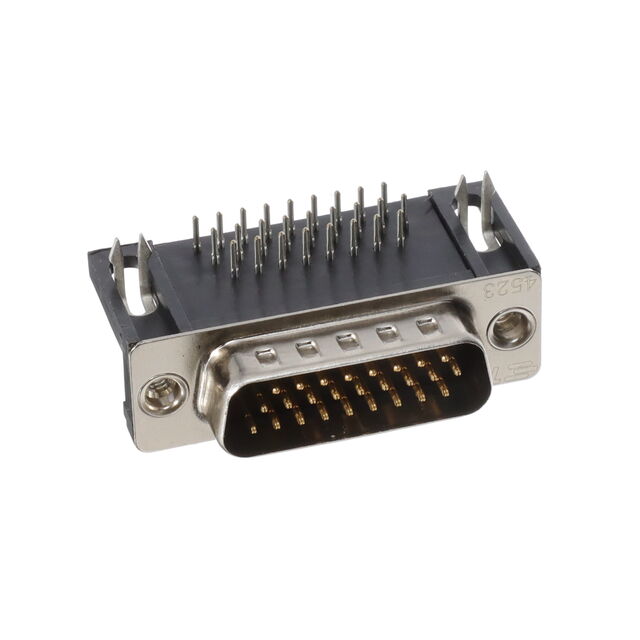

CONN D-SUB HD PLUG 26P R/A SLDR
| Part | Contact Material | Connector Style | Flange Feature | Backset Spacing | Backset Spacing | Shell Size, Connector Layout | Shell Size, Connector Layout | Number of Positions | Mounting Type | Number of Rows | Color | Shell Material, Finish | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Connector Type | Material Flammability Rating | Dielectric Material | Termination | Features | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Brass | D-Sub High Density | Housing/Shell (4-40) | 8.89 mm | 0.35 in | 2 | (DA A) High Density | 26 | Through Hole Right Angle | 3 | Black | Nickel Plated Steel | 85 °C | -55 °C | Gold | Male Pins Plug | UL94 V-0 | Polybutylene Terephthalate (PBT) Glass Filled | Solder | Board Lock Grounding Indents | Signal |
