TX25-60P Series

Catalog

CONN PLUG 60POS VERT GOLD

Part	Features	Mounting Type	Pitch	Pitch	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Number of Rows [custom]	Height Above Board [z]	Height Above Board [z]	Contact Finish

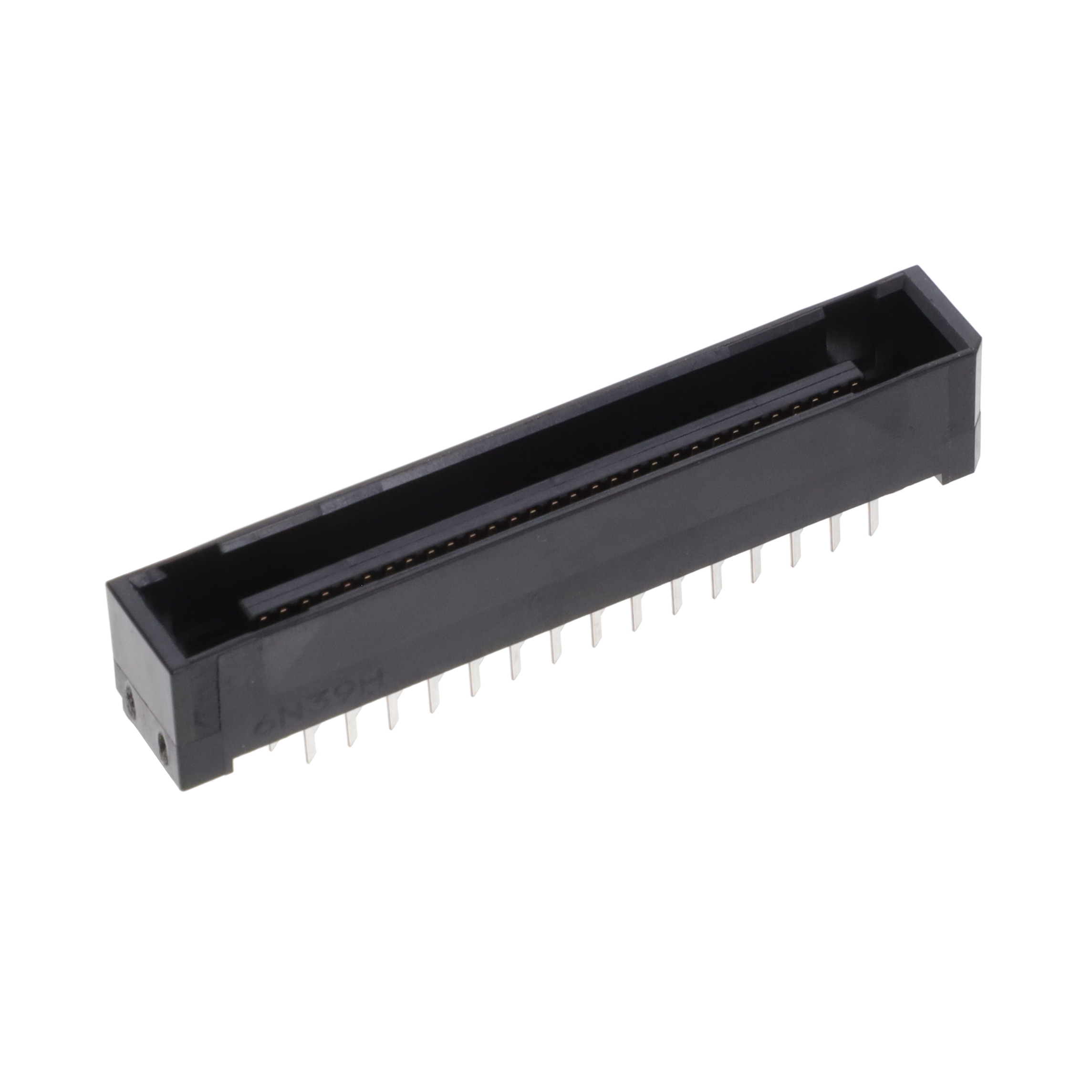

JAE Electronics TX25-60P-6ST-H1E	Board Lock	Through Hole	0.05 in	1.27 mm	60	0.1 Ám	4 Áin	12 mm 16 mm 18 mm	2	0.362 in	9.2 mm	Gold

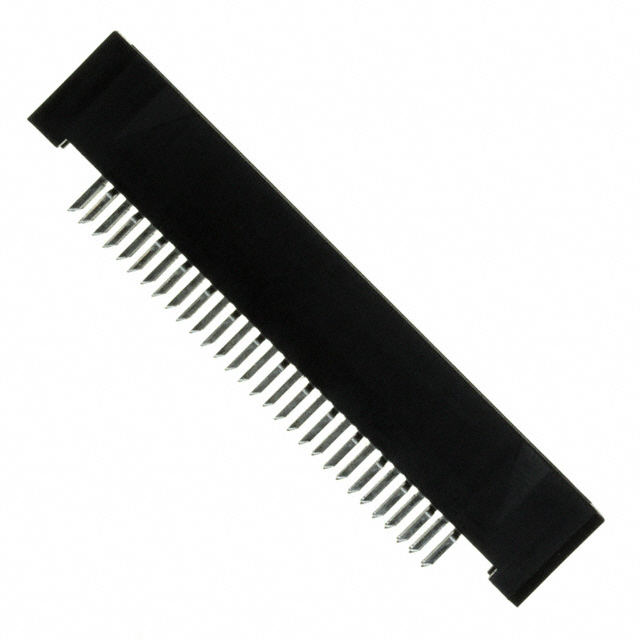

JAE Electronics TX25-60P-6ST-N1E		Through Hole	0.05 in	1.27 mm	60	0.1 Ám	4 Áin	12 mm 16 mm 18 mm	2	0.362 in	9.2 mm	Gold

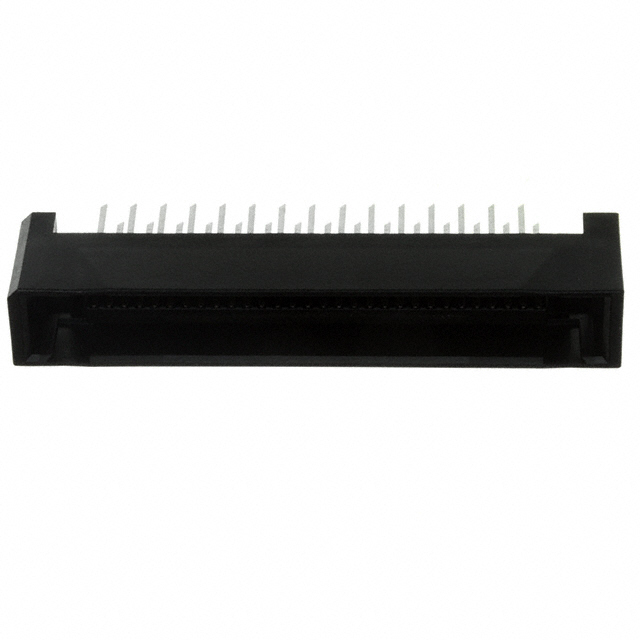

JAE Electronics TX25-60P-8ST-H1E	Board Lock	Through Hole	0.05 in	1.27 mm	60	0.1 Ám	4 Áin	14 mm 18 mm 20 mm	2	0.441 in	11.2 mm	Gold

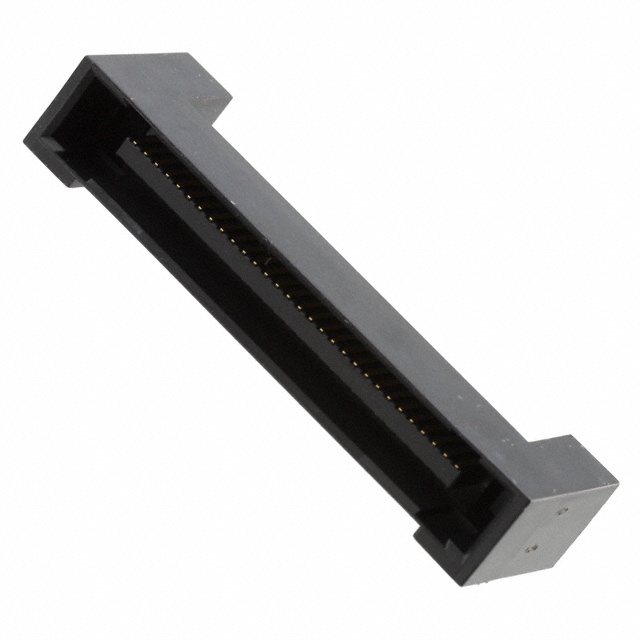

JAE Electronics TX25-60P-LT-H1E	Board Lock	Right Angle Through Hole	0.05 in	1.27 mm	60	0.1 Ám	4 Áin		2	0.354 in	9 mm	Gold

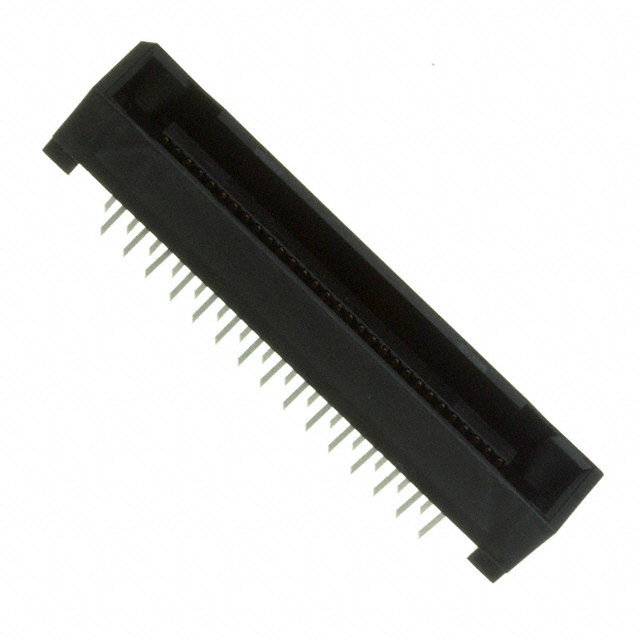

JAE Electronics TX25-60P-8ST-N1E		Through Hole	0.05 in	1.27 mm	60	0.1 Ám	4 Áin	14 mm 18 mm 20 mm	2	0.441 in	11.2 mm	Gold
JAE Electronics TX25-60P-LT-N1E		Right Angle Through Hole	0.05 in	1.27 mm	60	0.1 Ám	4 Áin		2	0.354 in	9 mm	Gold
JAE Electronics TX25-60P-12ST-H1E	Board Lock	Through Hole	0.05 in	1.27 mm	60	0.1 Ám	4 Áin	18 mm 22 mm 24 mm	2	0.598 "	15.2 mm	Gold
