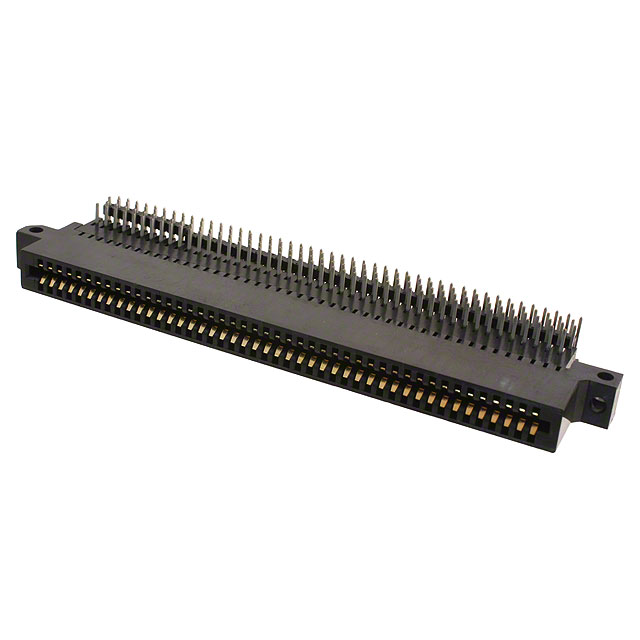

ACB90 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN EDGE DUAL FML 180POS 0.050

Part	Material - Insulation	Gender	Number of Rows [custom]	Number of Positions	Termination	Read Out	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Finish	Color	Card Type	Pitch	Pitch	Contact Material	Number of Positions/Bay/Row	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Card Thickness	Card Thickness	Features
Sullins Connector Solutions ACB90DHLD	Polyphenylene Sulfide (PPS)	Female	2	180	Solder	Dual	150 °C	-65 ░C	Through Hole	Gold	Black	Non Specified - Dual Edge	0.05 in	1.27 mm	Beryllium Copper	90	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "	Hairpin Bellows	30 Áin	0.76 Ám	1.57 mm	0.062 in
Sullins Connector Solutions ACB90DHRT	Polyphenylene Sulfide (PPS)	Female	2	180	Solder	Dual	150 °C	-65 ░C	Board Edge Straddle Mount	Gold	Black	Non Specified - Dual Edge	0.05 in	1.27 mm	Beryllium Copper	90	4-40 Flush Mount Threaded Insert Top Opening			Hairpin Bellows	30 Áin	0.76 Ám	1.57 mm	0.062 in	Card Extender
Sullins Connector Solutions ACB90DYRN-S1355	Polyphenylene Sulfide (PPS)	Female	2	180	Solder	Dual	150 °C	-65 ░C	Board Edge Straddle Mount	Gold	Black	Non Specified - Dual Edge	0.05 in	1.27 mm	Beryllium Copper	90				Cantilever	30 Áin	0.76 Ám	1.57 mm	0.062 in	Card Extender
Sullins Connector Solutions ACB90DYRD	Polyphenylene Sulfide (PPS)	Female	2	180	Solder	Dual	150 °C	-65 ░C	Board Edge Straddle Mount	Gold	Black	Non Specified - Dual Edge	0.05 in	1.27 mm	Beryllium Copper	90	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "	Cantilever	30 Áin	0.76 Ám	1.57 mm	0.062 in	Card Extender
Sullins Connector Solutions ACB90DHHR	Polyphenylene Sulfide (PPS)	Female	2	180	Solder Staggered	Dual	150 °C	-65 ░C	Through Hole	Gold	Black	Non Specified - Dual Edge	0.05 in	1.27 mm	Beryllium Copper	90				Hairpin Bellows	30 Áin	0.76 Ám	1.57 mm	0.062 in	Board Lock
Sullins Connector Solutions ACB90DHNT	Polyphenylene Sulfide (PPS)	Female	2	180	Solder	Dual	150 °C	-65 ░C	Through Hole	Gold	Black	Non Specified - Dual Edge	0.05 in	1.27 mm	Beryllium Copper	90	4-40 Flush Mount Threaded Insert Top Opening			Hairpin Bellows	30 Áin	0.76 Ám	1.57 mm	0.062 in
Sullins Connector Solutions ACB90DYRT	Polyphenylene Sulfide (PPS)	Female	2	180	Solder	Dual	150 °C	-65 ░C	Board Edge Straddle Mount	Gold	Black	Non Specified - Dual Edge	0.05 in	1.27 mm	Beryllium Copper	90	4-40 Flush Mount Threaded Insert Top Opening			Cantilever	30 Áin	0.76 Ám	1.57 mm	0.062 in	Card Extender
Sullins Connector Solutions ACB90DHHT	Polyphenylene Sulfide (PPS)	Female	2	180	Solder Staggered	Dual	150 °C	-65 ░C	Through Hole	Gold	Black	Non Specified - Dual Edge	0.05 in	1.27 mm	Beryllium Copper	90	4-40 Flush Mount Threaded Insert Top Opening			Hairpin Bellows	30 Áin	0.76 Ám	1.57 mm	0.062 in
Sullins Connector Solutions ACB90DHLT	Polyphenylene Sulfide (PPS)	Female	2	180	Solder	Dual	150 °C	-65 ░C	Through Hole	Gold	Black	Non Specified - Dual Edge	0.05 in	1.27 mm	Beryllium Copper	90	4-40 Flush Mount Threaded Insert Top Opening			Hairpin Bellows	30 Áin	0.76 Ám	1.57 mm	0.062 in
Sullins Connector Solutions ACB90DHAN	Polyphenylene Sulfide (PPS)	Female	2	180	Solder Staggered	Dual	150 °C	-65 ░C	Right Angle Through Hole	Gold	Black	Non Specified - Dual Edge	0.05 in	1.27 mm	Beryllium Copper	90				Hairpin Bellows	30 Áin	0.76 Ám	1.57 mm	0.062 in
