094030 Series

Manufacturer: Molex

Catalog

CONN QC RCPT 14-16AWG 0.187

Part	Termination	Contact Material	Length - Overall	Length - Overall	Terminal Type	Tab Thickness	Tab Thickness	Tab Length	Tab Length	Mounting Type	Insulation	Tab Width	Tab Width	Gender	Insulation Diameter [Max]	Insulation Diameter [Min]	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Length - Overall [x]	Length - Overall [x]	Tab Length	Width - Outer Edges [y]	Width - Outer Edges [y]	Stud/Tab Size	Thickness	Thickness

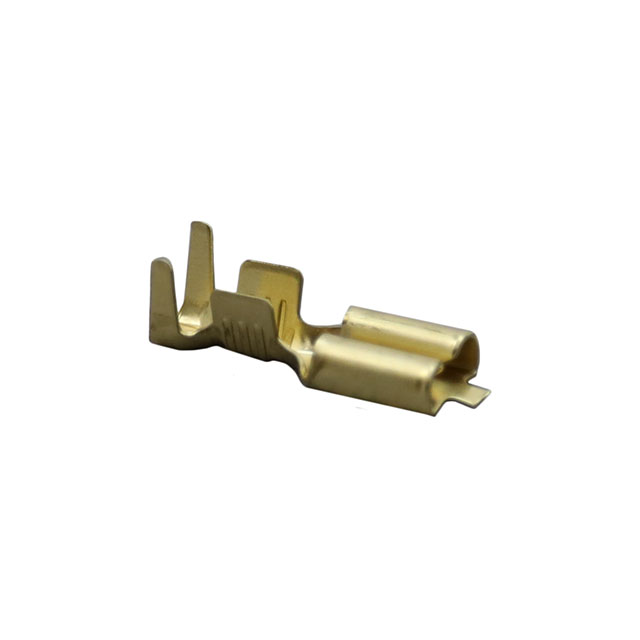

Molex 0940304030	Crimp	Brass	15.09 mm	0.594 in	Standard	0.032 in	0.81 mm	0.248 in	6.3 mm	Free Hanging (In-Line)	Non-Insulated	4.75 mm	0.187 in	Female	0.169 in 4.29 mm	0.106 " 2.69 mm
Molex 0940304021	Crimp	Brass	15.09 mm	0.594 in	Standard	0.032 in	0.81 mm	0.248 in	6.3 mm	Free Hanging (In-Line)	Non-Insulated	4.75 mm	0.187 in	Female	0.13 in	0.079 in	Tin	24 AWG	17.5 AWG	2 mm	3.3 mm
Molex 0940304071	Crimp	Brass			Standard	0.032 in	0.81 mm	15.7 mm		Free Hanging (In-Line)	Non-Insulated	6.35 mm	0.25 in	Male	0.13 in	0.079 in	Tin	20 AWG	17.5 AWG	2 mm	3.3 mm	1.102 in	27.99 mm	0.618 in
Molex 0940302690
Molex 0940303961

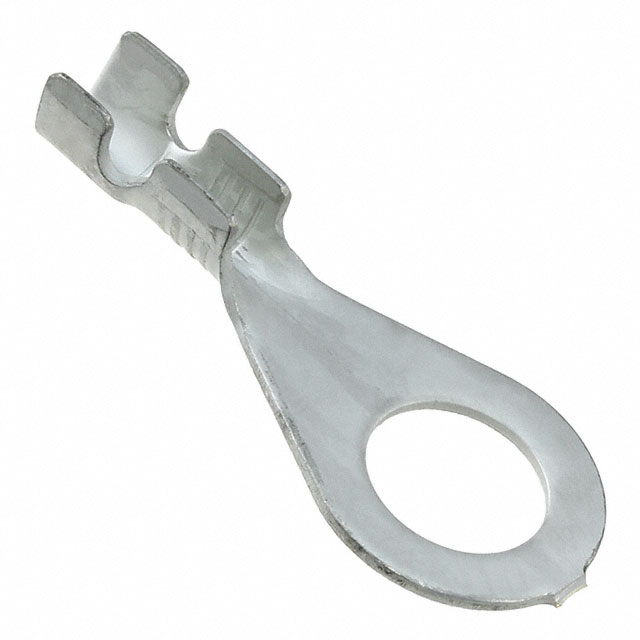

Molex 0940306980	Crimp	Brass			Circular					Free Hanging (In-Line)	Non-Insulated						Tin	18 AWG	12 AWG			1.26 in	32 mm		0.551 in	14 mm	0.3125 Stud	0.81 mm	0.032 in
Molex 0940305000	Crimp	Brass			Angled - 90° Flag	0.032 in	0.81 mm	7.6 mm		Free Hanging (In-Line) Right Angle	Non-Insulated	6.35 mm	0.25 in	Female	0.13 in	0.079 in		24 AWG	17.5 AWG	2 mm	3.3 mm			0.299 in
Molex 0940306970
Molex 0940306990	Crimp	Brass			Circular					Free Hanging (In-Line)	Non-Insulated						Tin	8 AWG	4 AWG			1.26 in	32 mm		0.551 in	14 mm	0.3125 Stud	0.81 mm	0.032 in
Molex 0940304921	Crimp	Brass			Standard	0.02 "	0.51 mm			Free Hanging (In-Line)	Non-Insulated	2.79 mm	0.11 "	Female	0.169 in	0.079 in	Tin	24 AWG	16 AWG	2 mm	4.29 mm
