OPA2992-Q1 Series

Automotive, dual, 40V, 10MHz rail-to-rail input and output low-noise operational amplifier

Catalog

Automotive, dual, 40V, 10MHz rail-to-rail input and output low-noise operational amplifier

Part	Package / Case	Package / Case [custom]	Package / Case	Gain Bandwidth Product	Qualification	Voltage - Input Offset	Grade	Mounting Type	Voltage - Supply Span (Min) [Min]	Current - Input Bias	Number of Circuits	Voltage - Supply Span (Max) [Max]	Current - Output / Channel	Amplifier Type	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Current - Supply	Slew Rate	Supplier Device Package	Package / Case [y]	Package / Case [x]

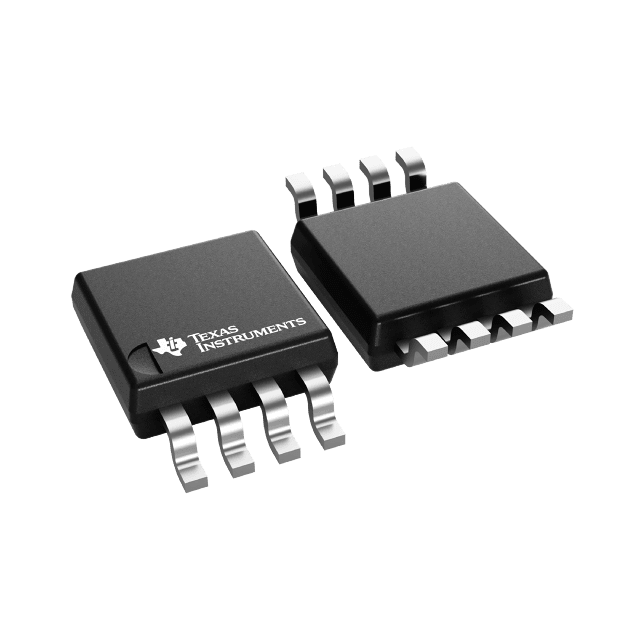

Texas Instruments OPA2992QDGKRQ1	8-MSOP 8-TSSOP	0.118 in	3 mm	10.6 MHz	AEC-Q100	210 µV	Automotive	Surface Mount	2.7 V	10 pA	2	40 V	65 mA	General Purpose	-40 °C	125 °C	Rail-to-Rail	2.4 mA	32 V/çs
Texas Instruments OPA2992QDRQ1	8-SOIC			10.6 MHz	AEC-Q100	210 µV	Automotive	Surface Mount	2.7 V		2	40 V	65 mA	General Purpose	-40 °C	125 °C	Rail-to-Rail	2.4 mA	32 V/çs	8-SOIC	3.9 mm	0.154 in

Catalog

Automotive, dual, 40V, 10MHz rail-to-rail input and output low-noise operational amplifier

Key Features

• AEC-Q100 qualified for automotive applicationsTemperature grade 1: –40°C to +125°C, TADevice HBM ESD classification level 2ADevice CDM ESD classification level C6Low offset voltage: ±210µVLow offset voltage drift: ±0.25µV/°CLow noise: 7nV/√Hz at 1kHz, 4.4nV/√Hz broadbandHigh common-mode rejection: 115dBLow bias current: ±10pARail-to-rail input and outputMUX-friendly/comparator inputsAmplifier operates with differential inputs up to supply railAmplifier can be used in open-loop or as comparatorWide bandwidth: 10.6MHz GBW, unity-gain stableHigh slew rate: 32V/µsLow quiescent current: 2.4mA per amplifierWide supply: ±1.35V to ±20V, 2.7V to 40VRobust EMIRR performanceAEC-Q100 qualified for automotive applicationsTemperature grade 1: –40°C to +125°C, TADevice HBM ESD classification level 2ADevice CDM ESD classification level C6Low offset voltage: ±210µVLow offset voltage drift: ±0.25µV/°CLow noise: 7nV/√Hz at 1kHz, 4.4nV/√Hz broadbandHigh common-mode rejection: 115dBLow bias current: ±10pARail-to-rail input and outputMUX-friendly/comparator inputsAmplifier operates with differential inputs up to supply railAmplifier can be used in open-loop or as comparatorWide bandwidth: 10.6MHz GBW, unity-gain stableHigh slew rate: 32V/µsLow quiescent current: 2.4mA per amplifierWide supply: ±1.35V to ±20V, 2.7V to 40VRobust EMIRR performance

Description

The OPAx992-Q1 family (OPA992-Q1, OPA2992-Q1, and OPA4992-Q1) is a family of high voltage (40V) general purpose operational amplifiers. These devices offer excellent DC precision and AC performance, including rail-to-rail input or output, low offset (±210µV, typical), low offset drift (±0.25µV/°C, typical) and low noise (7nV/√Hz at 1kHz, 4.4nV/√Hz at 10kHz). Features such as differential and common-mode input voltage ranges to the supply rails, high short-circuit current (±65mA), and high slew rate (32V/µs) make the OPAx992-Q1 a flexible, robust, and high-performance op amp for high-voltage automotive applications. The OPAx992-Q1 family of op amps is available in standard packages (such as SOIC, TSSOP, VSSOP, SOT-23, and SC70), and is specified from –40°C to 125°C. The OPAx992-Q1 family (OPA992-Q1, OPA2992-Q1, and OPA4992-Q1) is a family of high voltage (40V) general purpose operational amplifiers. These devices offer excellent DC precision and AC performance, including rail-to-rail input or output, low offset (±210µV, typical), low offset drift (±0.25µV/°C, typical) and low noise (7nV/√Hz at 1kHz, 4.4nV/√Hz at 10kHz). Features such as differential and common-mode input voltage ranges to the supply rails, high short-circuit current (±65mA), and high slew rate (32V/µs) make the OPAx992-Q1 a flexible, robust, and high-performance op amp for high-voltage automotive applications. The OPAx992-Q1 family of op amps is available in standard packages (such as SOIC, TSSOP, VSSOP, SOT-23, and SC70), and is specified from –40°C to 125°C.
