C052H3 Series

Manufacturer: KEMET

Catalog

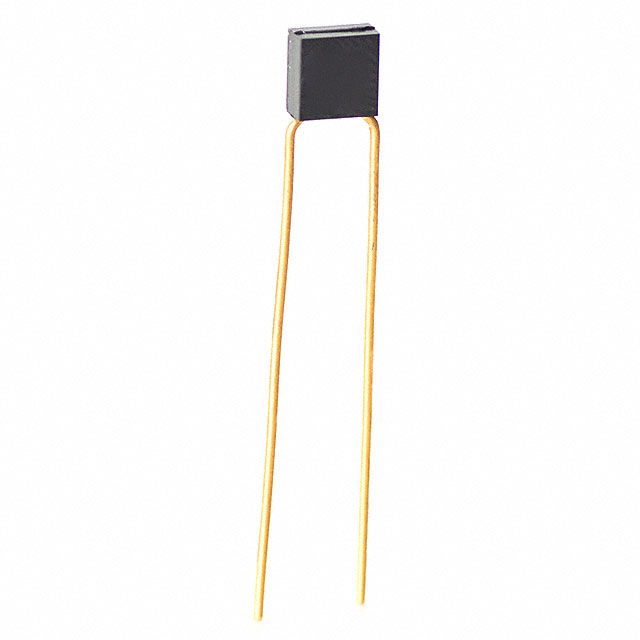

CAP CER 0.033UF 100V C0G/NP0 RAD

Part	Mounting Type	Features	Lead Spacing	Lead Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Lead Style	Tolerance	Package / Case	Height - Seated (Max)	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Temperature Coefficient	Applications	Voltage - Rated	Capacitance
KEMET C052H333F1G5GA	Through Hole	High Temperature Low ESL	0.2 in	5.08 mm	200 °C	-55 C	Formed Leads	1 %	Radial	6.22 mm	0.245 "	2.29 mm	4.83 mm	0.09 "	0.19 "	C0G NP0	General Purpose	100 V	0.033 çF
KEMET C052H331J2G5GA7301	Through Hole	High Temperature Low ESL	0.2 in	5.08 mm	200 °C	-55 C	Formed Leads	5 %	Radial	6.22 mm	0.245 "	2.29 mm	4.83 mm	0.09 "	0.19 "	C0G NP0	General Purpose	200 VDC	330 pF
KEMET C052H331J2G5GAT500	Through Hole	High Temperature Low ESL	0.2 in	5.08 mm	200 °C	-55 C	Formed Leads	5 %	Radial	6.22 mm	0.245 "	2.29 mm	4.83 mm	0.09 "	0.19 "	C0G NP0	General Purpose	200 VDC	330 pF
