6309 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

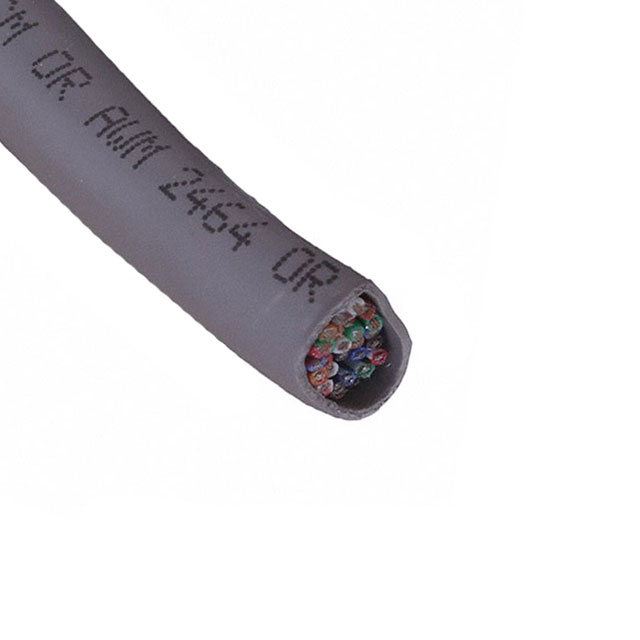

CABLE 25COND 24AWG SHLD 500'
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Material | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Voltage | Conductor Insulation | Wire Gauge | Number of Conductors [custom] | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Length | Length | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | Slate | 300 VDC | Poly-Vinyl Chloride (PVC) | 24 AWG | 25 | UL Style 2464 | 7 | 32 AWG | Multi-Conductor | Foil | 0.813 mm | 0.032 in | Drain Wire | 152.4 m | 500 ft | Copper Tinned |
