M4 Series

Manufacturer: Serpac

Catalog

BOX ABS BLACK 2.8"L X 2.2"W

Part	Weight [custom]	Weight [custom]	Features	Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Color	Area (L x W)	Area (L x W)	Material Flammability Rating	Container Type	Height [z]	Height [z]	Thickness	Thickness	Ratings	Area (L x W) [custom]	Area (L x W) [custom]

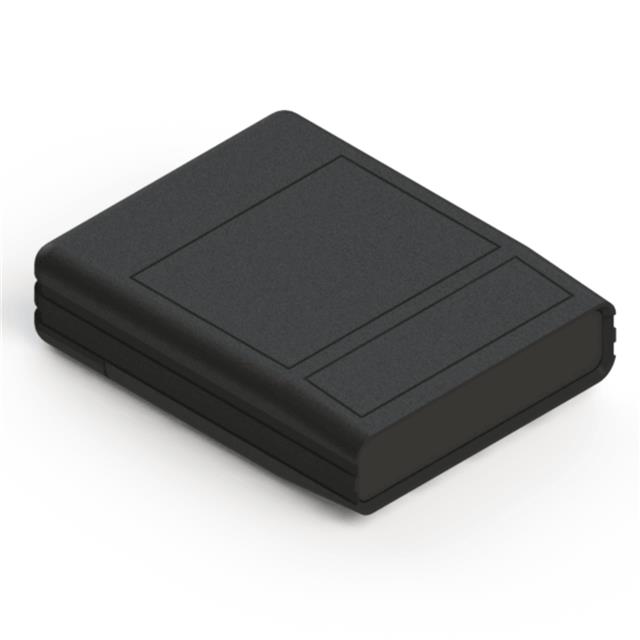

Serpac M4,BK	21.77 g	0.048 lb	AA Battery Compartment	ABS Plastic	55.88 mm	71.12 mm	2.8 in	2.2 "	Black	39.7 cm²	6.15 in²	UL94 HB	Box	0.71 in	18.03 mm	2.54 mm	0.1 in	IP40

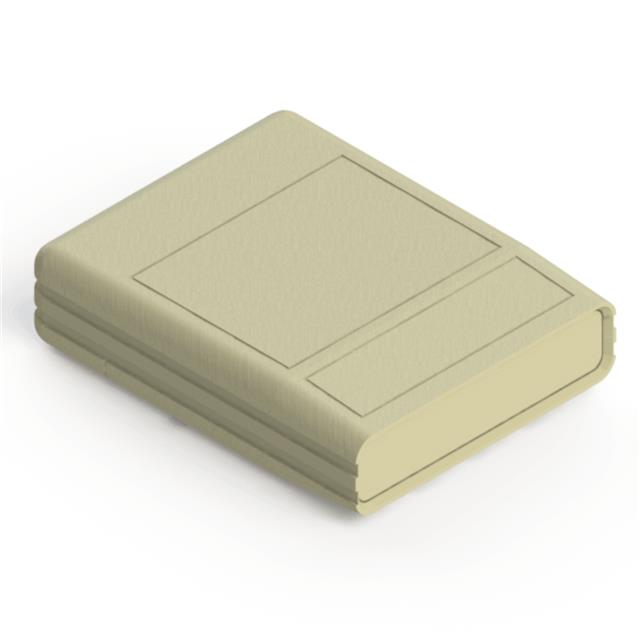

Serpac M4,AL	21.77 g	0.048 lb	AA Battery Compartment	ABS Plastic	55.88 mm	71.12 mm	2.8 in	2.2 "	Almond	39.7 cm²	6.15 in²	UL94 HB	Box	0.71 in	18.03 mm	2.54 mm	0.1 in	IP40	39.7 cm˛	6.15 in˛

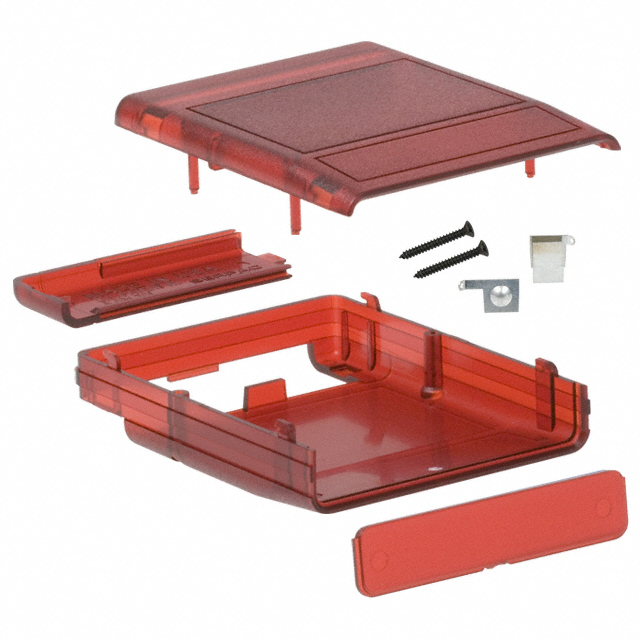

Serpac M4,TRRD	21.77 g	0.048 lb	AA Battery Compartment	ABS Plastic	55.88 mm	71.12 mm	2.8 in	2.2 "	Translucent - Red	39.7 cm²	6.15 in²	UL94 HB	Box	0.71 in	18.03 mm	2.54 mm	0.1 in	IP40	39.7 cm˛	6.15 in˛

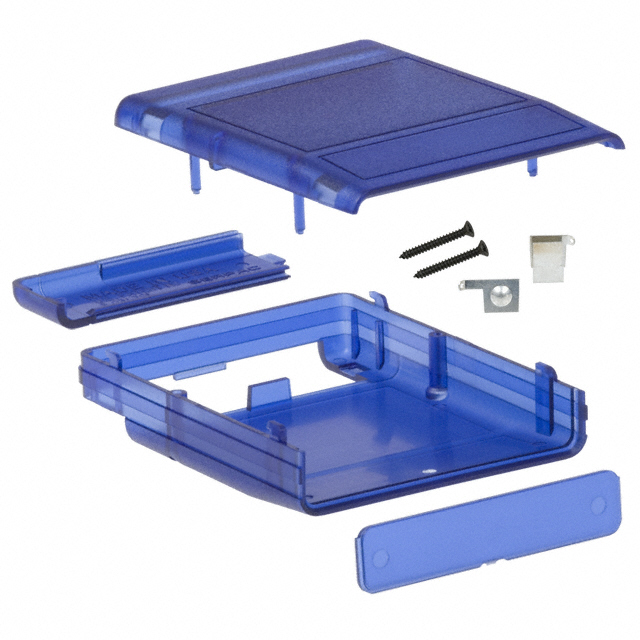

Serpac M4,TRBL	21.77 g	0.048 lb	AA Battery Compartment	ABS Plastic	55.88 mm	71.12 mm	2.8 in	2.2 "	Translucent - Blue	39.7 cm²	6.15 in²	UL94 HB	Box	0.71 in	18.03 mm	2.54 mm	0.1 in	IP40	39.7 cm˛	6.15 in˛

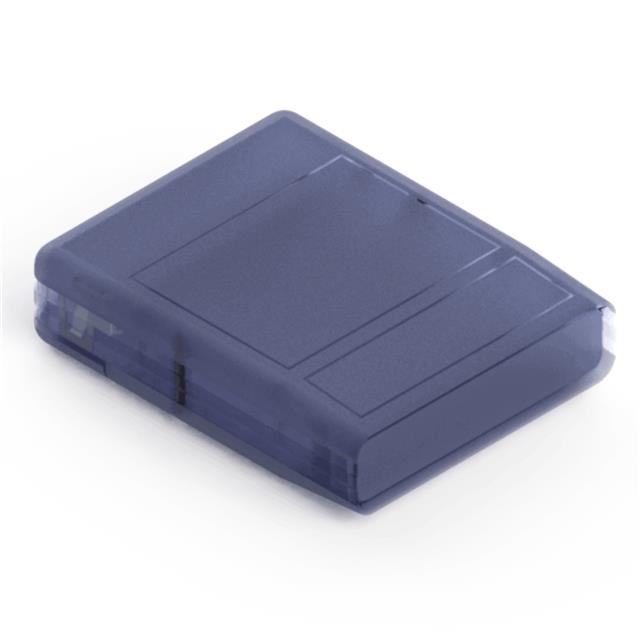

Serpac M4,TRGY	21.77 g	0.048 lb	AA Battery Compartment	ABS Plastic	55.88 mm	71.12 mm	2.8 in	2.2 "	Translucent - Gray	39.7 cm²	6.15 in²	UL94 HB	Box	0.71 in	18.03 mm	2.54 mm	0.1 in	IP40

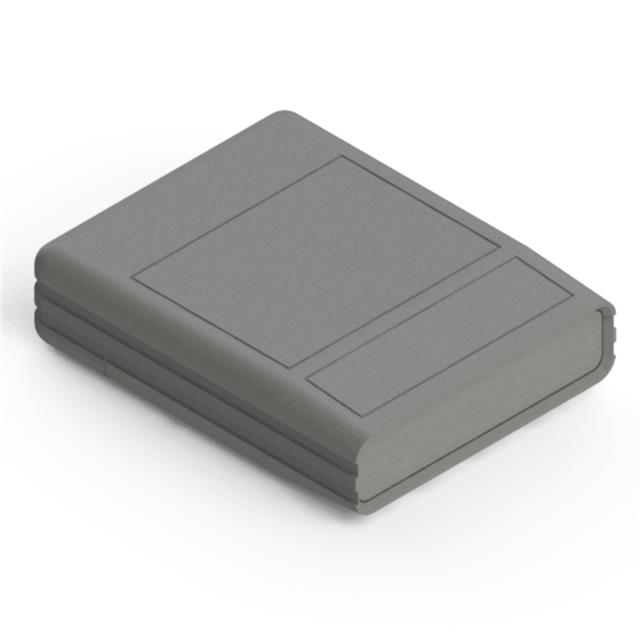

Serpac M4,GY	21.77 g	0.048 lb	AA Battery Compartment	ABS Plastic	55.88 mm	71.12 mm	2.8 in	2.2 "	Gray	39.7 cm²	6.15 in²	UL94 HB	Box	0.71 in	18.03 mm	2.54 mm	0.1 in	IP40	39.7 cm˛	6.15 in˛

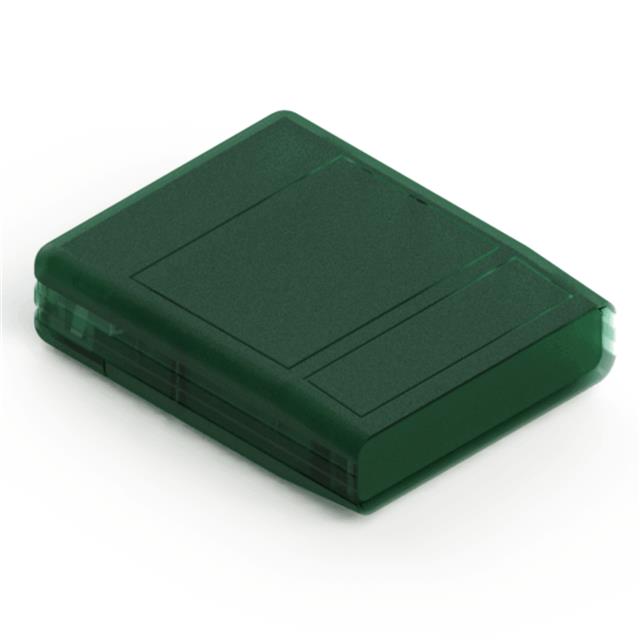

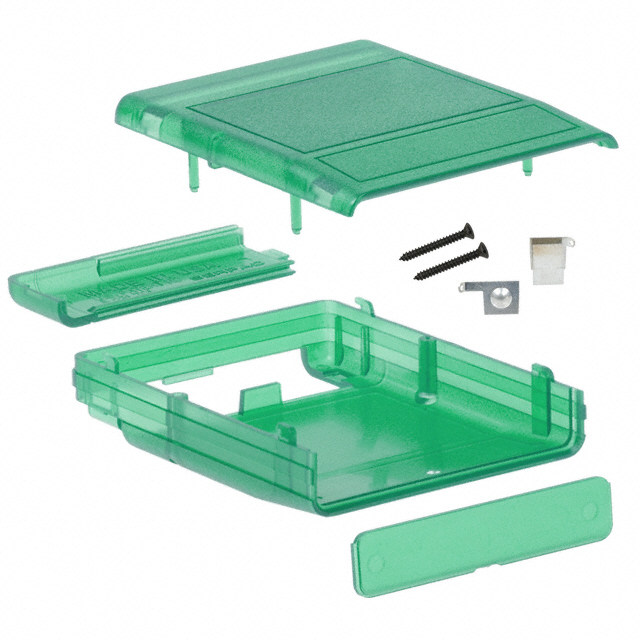

Serpac M4,TRGR	21.77 g	0.048 lb	AA Battery Compartment	ABS Plastic	55.88 mm	71.12 mm	2.8 in	2.2 "	Translucent - Green	39.7 cm²	6.15 in²	UL94 HB	Box	0.71 in	18.03 mm	2.54 mm	0.1 in	IP40
