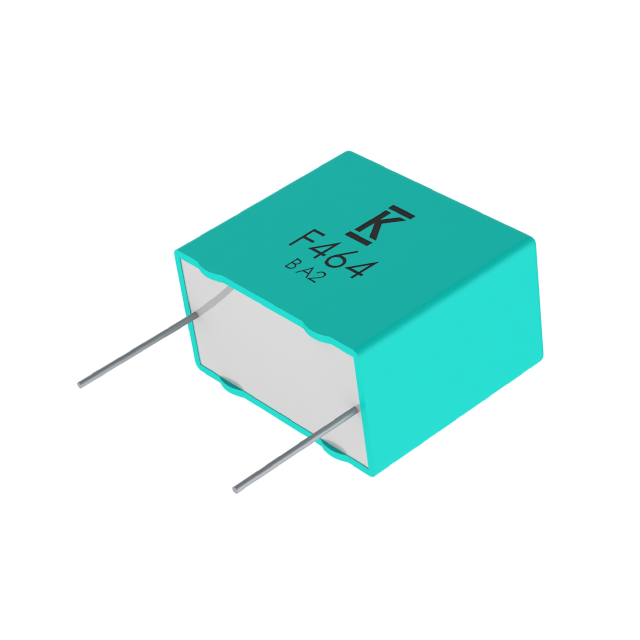

F464BY Series

Manufacturer: KEMET

Catalog

CAP FILM 0.022UF 5% 2.5KVDC RAD

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Termination	Applications	Tolerance	Capacitance	Mounting Type	Dielectric Material	Voltage Rating - AC	Voltage Rating - DC	Voltage Rating - DC
KEMET F464BY223J2K5L	0.748 in	19 mm	15 mm	0.591 in	Radial	-55 C	105 ░C	0.709 in	0.433 in	18 mm	11 mm	PC Pins	DV/DT High Pulse	5 %	0.022 µF	Through Hole	Polypropylene (PP) Metallized	900 V	2.5 kV	2500 V
