XZMDKVG59 Series
Manufacturer: SunLED
Beta
⌘K

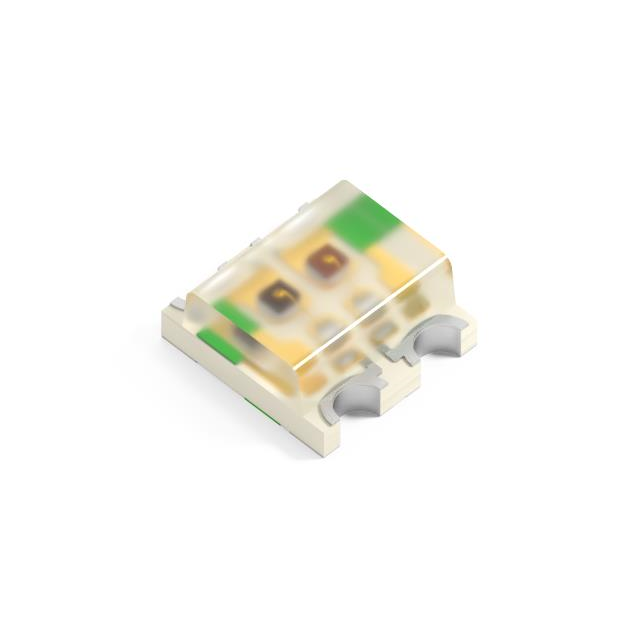

LED GREEN/RED CLEAR CHIP SMD
| Part | Current - Test [custom] | Current - Test [custom] | Size / Dimension [y] | Size / Dimension [x] | Color | Viewing Angle | Lens Transparency | Package / Case | Voltage - Forward (Vf) (Typ) | Millicandela Rating [custom] | Millicandela Rating [custom] | Lens Color | Wavelength - Dominant | Lens Style | Lens Size [y] | Lens Size [x] | Configuration | Mounting Type | Height (Max) [Max] [z] | Wavelength - Peak | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SunLED | 20 mA | 20 mA | 1.5 mm | 1.6 mm | Green Red | 150 ° | Clear | 0606 (1616 Metric) | 1.95 V 2.1 V | 198 mcd | 49 mcd | Colorless | 570nm Green 630nm Red | Rectangle with Flat Top | 1.2 mm | 1.5 mm | Independent | Surface Mount | 0.9 mm | 574 nm 645 nm | Chip LED |
