HSMS-C191 Series
Manufacturer: Broadcom Limited
Beta
⌘K

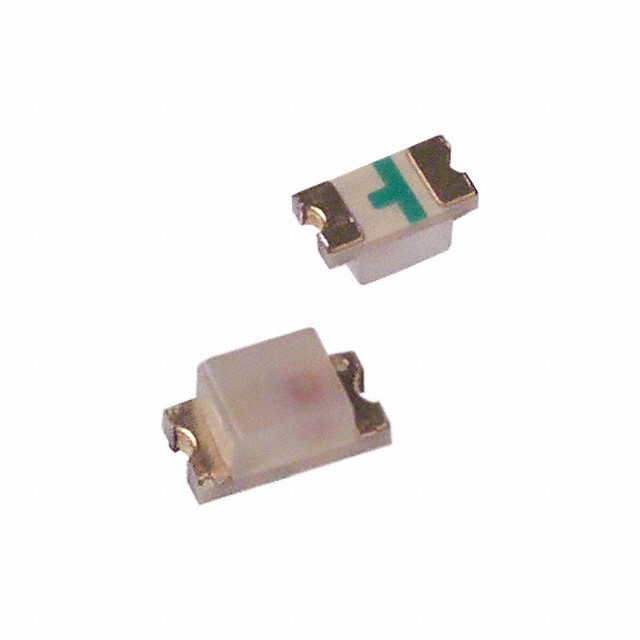

LED RED DIFFUSED CHIP SMD
| Part | Mounting Type | Lens Style | Package / Case | Package / Case | Lens Color | Viewing Angle | Configuration | Voltage - Forward (Vf) (Typ) | Millicandela Rating | Size / Dimension [x] | Size / Dimension [y] | Wavelength - Peak | Lens Transparency | Lens Size [x] | Lens Size [y] | Current - Test | Wavelength - Dominant | Height (Max) [z] | Supplier Device Package | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | Surface Mount | Rectangle with Flat Top | 1608 Metric | 0603 | White | 170 ° | Standard | 2.1 V | 10 mcd | 1.6 mm | 0.8 mm | 630 nm | Diffused | 1 mm | 0.8 mm | 20 mA | 626 nm | 0.6 mm | Chip LED | Red |
