HSDNARPP Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

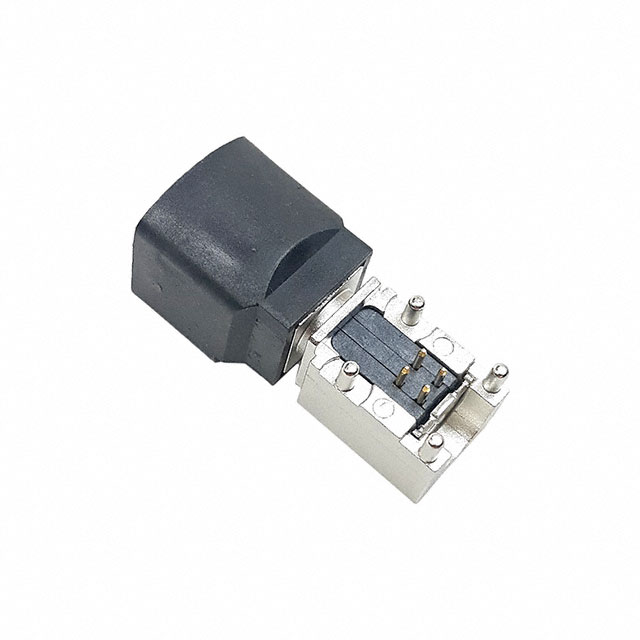

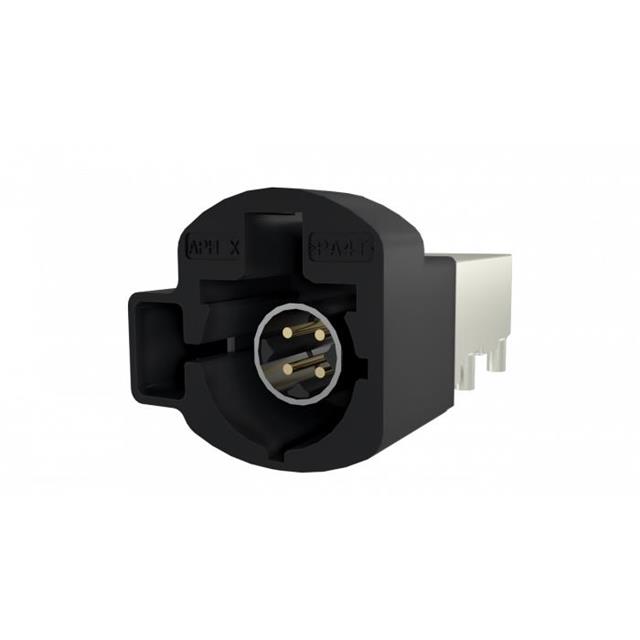

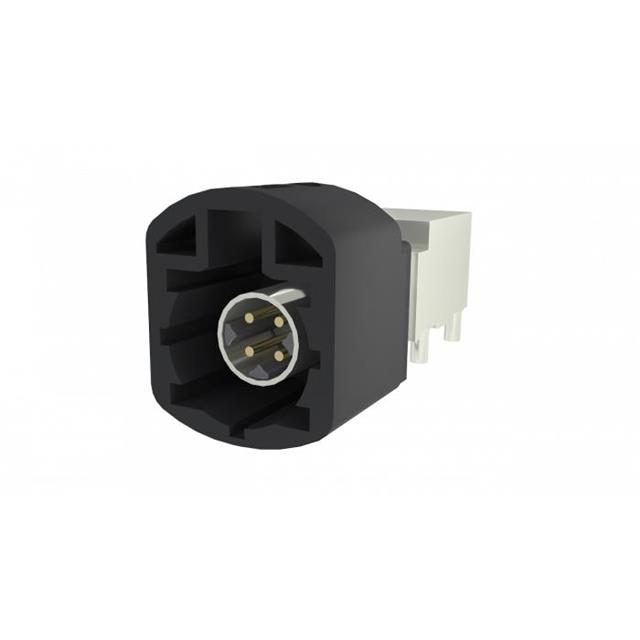

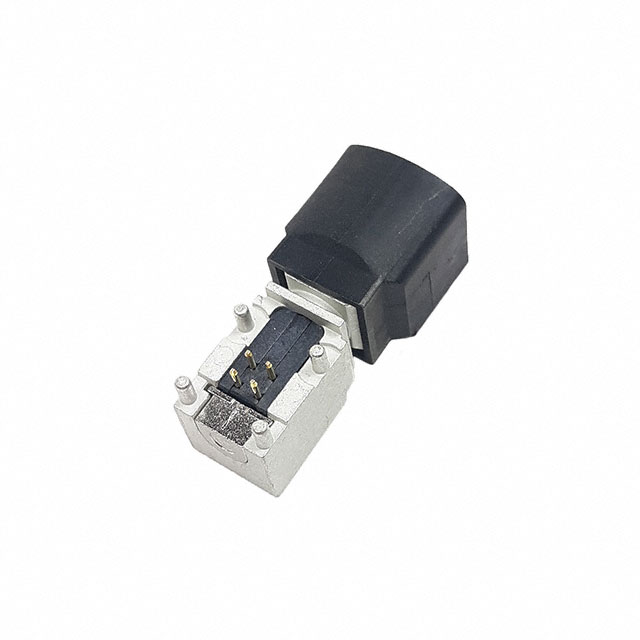

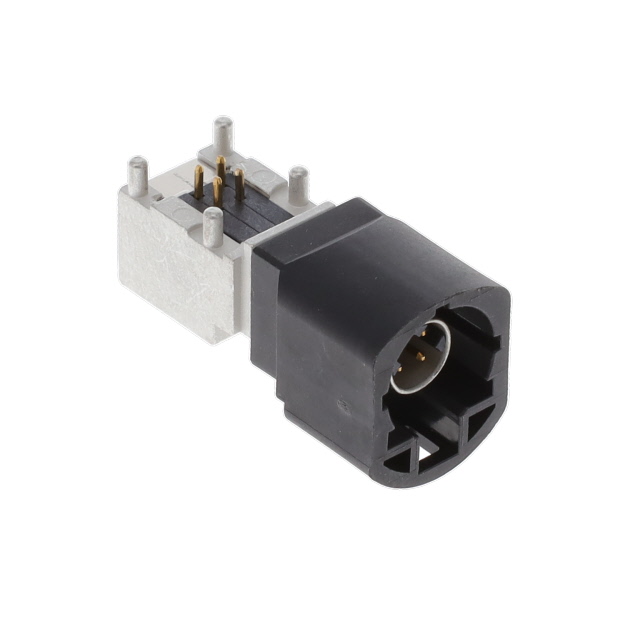

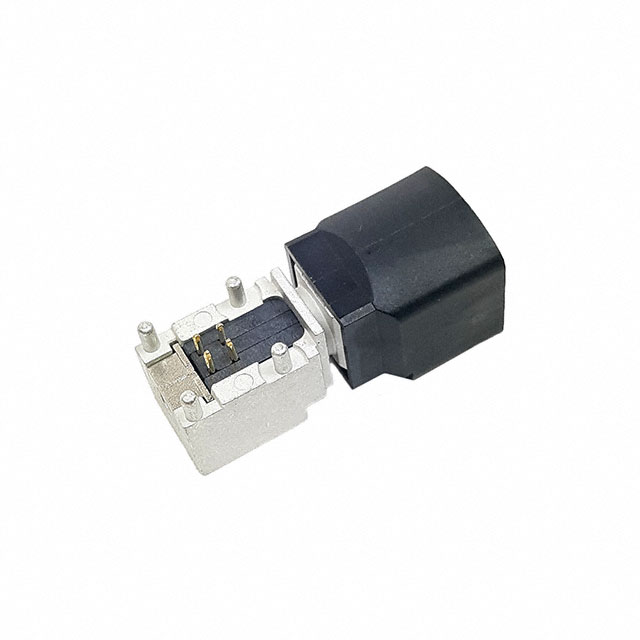

CONN HSD+0 R/A PLUG A CODE
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Finish | Body Material | Center Contact Plating | Fastening Type | Connector Type | Number of Ports | Contact Termination | Housing Color | Mounting Type | Connector Style | Center Contact Material | Impedance | Shield Termination | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Thermoplastic | -40 C | 105 ░C | 25 | Tin | Zinc Alloy | Gold | Latch Lock | Plug Male Pin | 1 | Solder | Black | Right Angle Through Hole | Fakra HSD® Quadraxial | Copper Alloy | 100 Ohms | Solder | Code A |
 Amphenol ICC (Commercial Products) | Thermoplastic | -40 C | 105 ░C | 25 | Stainless Steel | Gold | Latch Lock | Plug Male Pin | 1 | Solder | Black | Right Angle Through Hole | Fakra HSD® Quadraxial | Copper Alloy | 100 Ohms | Solder | Code A | |
 Amphenol ICC (Commercial Products) | Thermoplastic | -40 C | 105 ░C | 25 | Tin | Zinc Alloy | Gold | Latch Lock | Plug Male Pin | 1 | Solder | Black | Right Angle Through Hole | Fakra HSD® Quadraxial | Copper Alloy | 100 Ohms | Solder | Code A |
 Amphenol ICC (Commercial Products) | Thermoplastic | -40 C | 105 ░C | 25 | Nickel | Zinc Alloy | Gold | Latch Lock | Plug Male Pin | 1 | Solder | Black | Right Angle Through Hole | Fakra HSD® Quadraxial | Copper Alloy | 100 Ohms | Solder | Code A |
 Amphenol ICC (Commercial Products) | Thermoplastic | Tin | Zinc Alloy | Gold | Latch Lock | Plug Male Pin | 1 | Solder | Black | Right Angle Through Hole | Fakra HSD® Quadraxial | Copper Alloy | Solder | Code A | ||||
 Amphenol ICC (Commercial Products) | Thermoplastic | Tin | Zinc Alloy | Gold | Latch Lock | Plug Male Pin | 1 | Solder | Black | Right Angle Through Hole | Fakra HSD® Quadraxial | Copper Alloy | Solder | Code A |
