MC25LCS Series

Catalog

SWITCH CAPACITIVE DPST ON-OFF

Part	Mechanical Life	Electrical Life	Type	Current Rating (Amps)	Actuator Type	Ingress Protection	Illumination Voltage (Nominal)	Switch Function	Voltage Rating - DC	Termination Style	Mounting Type	Illumination Type, Color	Circuit	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking

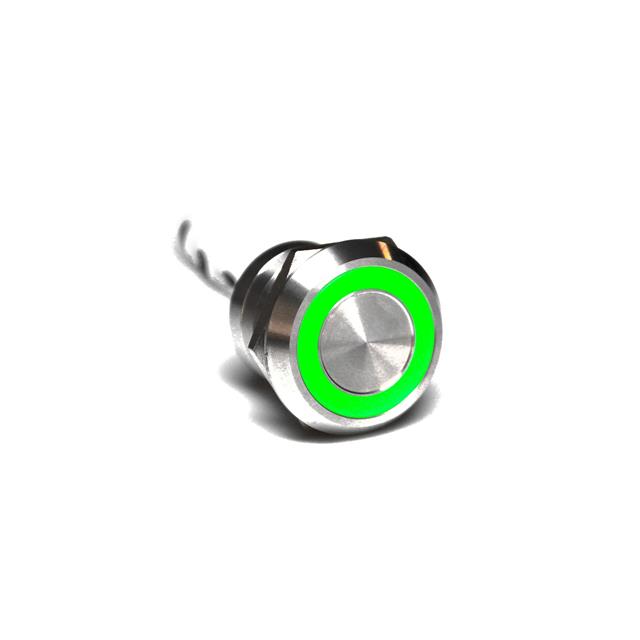

BULGIN LIMITED MC25LCSGN	50000000 Cycles	50 000 000	Capacitive Illuminated	500 mA	Button Flush Round	IP68 IP69K	12 VDC	On-Off	24 V	Wire Leads	Panel Mount Front	Green LED	SPST-NC	Silver	25.2 mm	55 °C	-25 °C
BULGIN LIMITED MC25LCSGR	50000000 Cycles	50 000 000	Capacitive Illuminated	500 mA	Button Flush Round	IP68 IP69K		On-Off	12 V	Wire Leads	Panel Mount Front	Green/Red LED	SPST-NC	Silver	25.2 mm	55 °C	-25 °C	No Marking

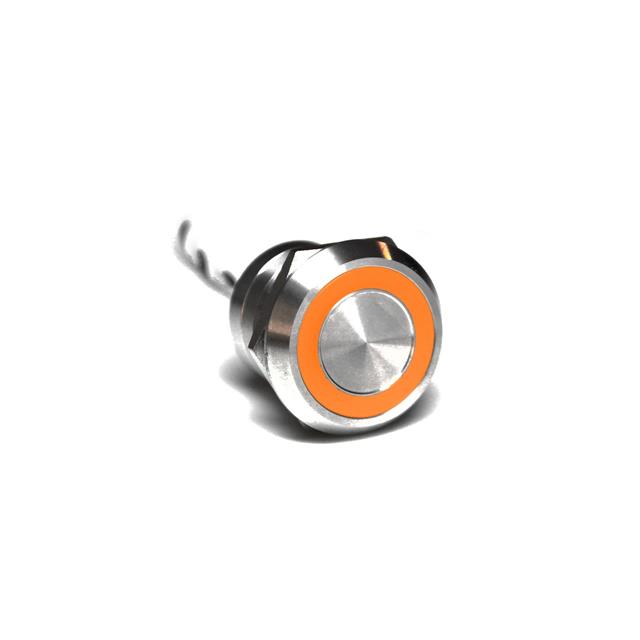

BULGIN LIMITED MC25LCSAM	50000000 Cycles	50 000 000	Capacitive Illuminated	500 mA	Button Flush Round	IP68 IP69K	12 VDC	On-Off	24 V	Wire Leads	Panel Mount Front	Amber LED	SPST-NC	Silver	25.2 mm	55 °C	-25 °C
