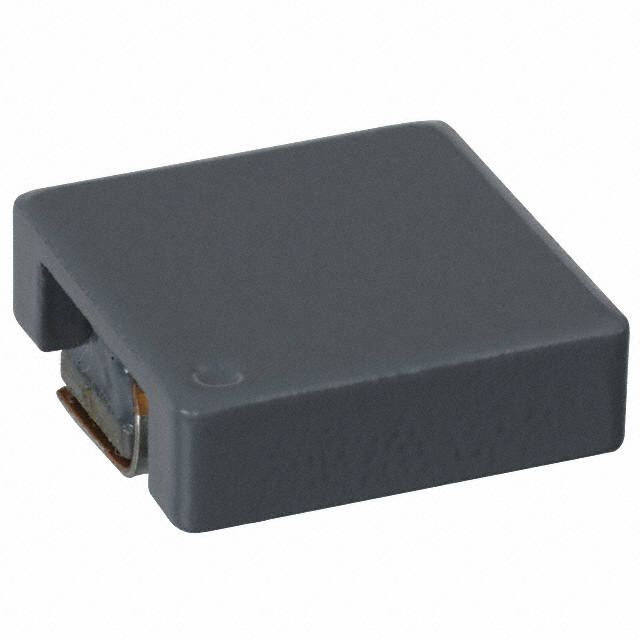

PM12639S Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 670NH 23A 1.4 MOHM SMD
| Part | Inductance | Tolerance | Current Rating (Amps) | Inductance Frequency - Test | DC Resistance (DCR) | Operating Temperature [Min] | Operating Temperature [Max] | Type | Shielding | Package / Case | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Height - Seated (Max) | Height - Seated (Max) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 670 nH | 20 % | 23 A | 100 kHz | 1.4 mOhm | -40 C | 150 °C | Wirewound | Shielded | Nonstandard | 0.547 in | 13.9 mm | 0.531 in | 13.5 mm | 3.7 mm | 0.146 in | Surface Mount |
