LHA Series

Catalog

SWITCHING POWER SUPPLIES 19.8W 3.3V 6A WITH POTENTIOMETER

...

Part	Mounting Type	Current - Output 1	Approval Agency	Type	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Number of Outputs	Standard Number	Efficiency	Applications	Voltage - Output 1	Voltage - Isolation	Features	Voltage - Output 1 [custom]
Cosel USA, Inc. LHA30F-3R3-Y	Chassis Mount	6 A	CE cURus DEMKO UL	Open Frame	20 W	70 °C	-10 °C	23.6 mm	87.4 mm	1.97 in	50 mm	0.93 "	3.44 in	1	62368-1	85.5 %	ITE (Commercial)	3.3 V	3000 V	Adjustable Output Universal Input
Cosel USA, Inc. LHA300F-48-SN	Chassis Mount	6.3 A	CE cURus DEMKO TUV	Enclosed	302 W	70 °C	-10 °C	47 mm	212.1 mm	3.7 in	94 mm	1.85 in	8.35 in	1	62368-1	94 %	ITE (Commercial)	48 V	3000 V	Adjustable Output Universal Input

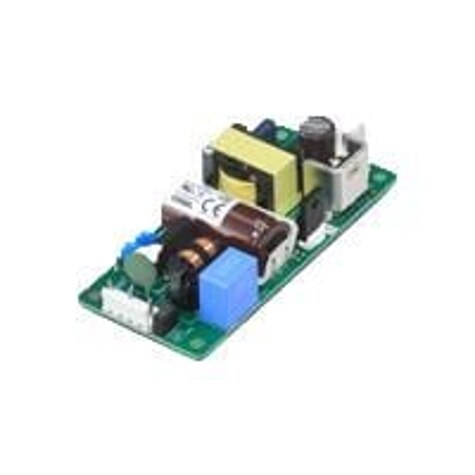

Cosel USA, Inc. LHA50F-5	Chassis Mount	8 A	CE cURus DEMKO UL	Open Frame	40 W	70 °C	-10 °C	23.6 mm	112 mm	1.97 in	50 mm	0.93 "	4.41 "	1	62368-1	86.5 %	ITE (Commercial)	5 V	3000 V	Adjustable Output Universal Input
Cosel USA, Inc. LHA50F-48-Y	Chassis Mount	1.1 A	CE cURus DEMKO TUV UKCA	Enclosed	53 W	70 °C	-10 °C	23.6 mm	112 mm	1.97 in	50 mm	0.93 "	4.41 "	1	62368-1	90 %	ITE (Commercial)	48 V	3000 V	Adjustable Output PFC Remote On/Off Remote Sense Universal Input
Cosel USA, Inc. LHA75F-48-Y	Chassis Mount	1.6 A	CE cURus DEMKO TUV UKCA	Enclosed	77 W	70 °C	-10 °C	23.6 mm	150.1 mm	1.97 in	50 mm	0.93 "	5.91 in	1	62368-1		ITE (Commercial)	48 V	3000 V	Adjustable Output PFC Remote On/Off Remote Sense Universal Input

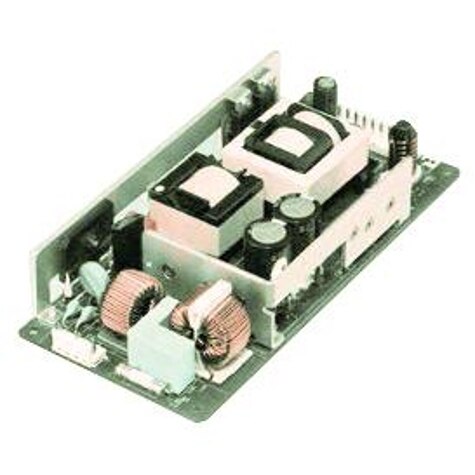

Cosel USA, Inc. LHA300F-36-R2
Cosel USA, Inc. LHA50F-5-J4	Chassis Mount	8 A	CE cURus DEMKO UKCA	Open Frame	40 W	70 °C	-10 °C	23.6 mm	112 mm	1.97 in	50 mm	0.93 "	4.41 "	1	62368-1	86.5 %	ITE (Commercial)	5 V	3000 V	PFC Universal Input

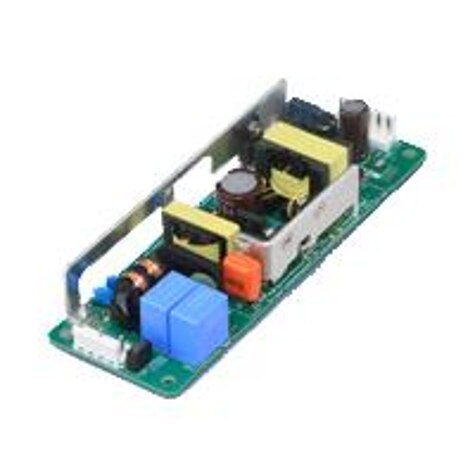

Cosel USA, Inc. LHA75F-3R3-Y	Chassis Mount	12 A	CE cURus DEMKO UL	Open Frame	40 W	70 °C	-10 °C	23.6 mm	150.1 mm	1.97 in	50 mm	0.93 "	5.91 in	1	62368-1	75 %	ITE (Commercial)	3.3 V	3000 V	Adjustable Output Universal Input
Cosel USA, Inc. LHA150F-36-S	Chassis Mount	4.2 A	CE cURus DEMKO TUV UKCA	Enclosed	151 W	70 °C	-10 °C	27.2 mm	160 mm	2.95 "	74.9 mm	1.07 in	6.3 in	1	62368-1	92.5 %	ITE (Commercial)		3000 V	PFC Remote On/Off Remote Sense Universal Input	36 V
Cosel USA, Inc. LHA50F-36-C	Chassis Mount	1.4 A	CE cURus DEMKO UKCA	Open Frame Conformal Coated	50 W	70 °C	-10 °C	23.6 mm	112 mm	1.97 in	50 mm	0.93 "	4.41 "	1	62368-1	90 %	ITE (Commercial)		3000 V	PFC Universal Input	36 V
