86832 Series

Catalog

CONN HEADER VERT 42POS 2.54MM

Part	Contact Shape	Connector Type	Voltage Rating	Number of Rows	Current Rating (Amps)	Material Flammability Rating	Contact Type	Number of Positions	Number of Positions Loaded	Insulation Color	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Fastening Type	Mounting Type	Contact Finish - Post	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Finish - Mating
Amphenol ICC (FCI) 86832-442HLF	Square	Header	110 VDC	2	5 A	UL94 V-0	Male Pin	42	All	Black	0.525 in	13.34 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	Push-Pull	Through Hole	Tin	Unshrouded	2.54 çm	100 çin	Solder	0.1 in	2.54 mm	2.54 mm	0.1 in	Phosphor Bronze	8.26 mm	0.325 in
Amphenol ICC (FCI) 86832-140HLF	Square	Header	110 VDC	2	5 A	UL94 V-0	Male Pin	40	All	Black	0.525 in	13.34 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	Push-Pull	Through Hole		Unshrouded	0.76 Ám	30 Áin	Solder	0.1 in	2.54 mm	2.54 mm	0.1 in	Phosphor Bronze	8.26 mm	0.325 in	Gold or Gold GXT™
Amphenol ICC (FCI) 86832-272HLF	Square	Header	110 VDC	2	5 A	UL94 V-0	Male Pin	72	All	Black	0.525 in	13.34 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	Push-Pull	Through Hole		Unshrouded	0.38 µm	15 µin	Solder	0.1 in	2.54 mm	2.54 mm	0.1 in	Phosphor Bronze	8.26 mm	0.325 in	Gold or Gold GXT™
Amphenol ICC (FCI) 86832-166HLF	Square	Header	110 VDC	2	5 A	UL94 V-0	Male Pin	66	All	Black	0.525 in	13.34 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	Push-Pull	Through Hole		Unshrouded	0.76 Ám	30 Áin	Solder	0.1 in	2.54 mm	2.54 mm	0.1 in	Phosphor Bronze	8.26 mm	0.325 in	Gold or Gold GXT™
Amphenol ICC (FCI) 86832-422HLF	Square	Header	110 VDC	2	5 A	UL94 V-0	Male Pin	22 positions	All	Black	0.525 in	13.34 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	Push-Pull	Through Hole	Tin	Unshrouded	2.54 çm	100 çin	Solder	0.1 in	2.54 mm	2.54 mm	0.1 in	Phosphor Bronze	8.26 mm	0.325 in
Amphenol ICC (FCI) 86832-456HLF	Square	Header	110 VDC	2	5 A	UL94 V-0	Male Pin	56	All	Black	0.525 in	13.34 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	Push-Pull	Through Hole	Tin	Unshrouded	2.54 çm	100 çin	Solder	0.1 in	2.54 mm	2.54 mm	0.1 in	Phosphor Bronze	8.26 mm	0.325 in

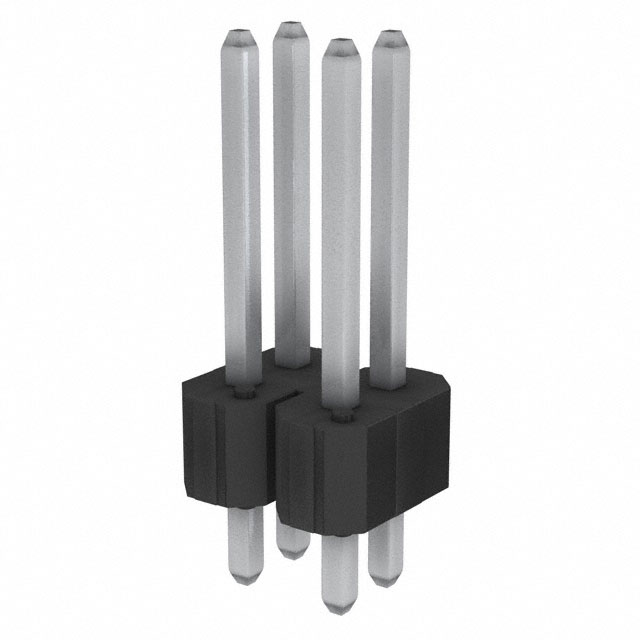

Amphenol ICC (FCI) 86832-404HLF	Square	Header	110 VDC	2	5 A	UL94 V-0	Male Pin	4	All	Black	0.525 in	13.34 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	Push-Pull	Through Hole	Tin	Unshrouded	2.54 çm	100 çin	Solder	0.1 in	2.54 mm	2.54 mm	0.1 in	Phosphor Bronze	8.26 mm	0.325 in
Amphenol ICC (FCI) 86832-158HLF	Square	Header	110 VDC	2	5 A	UL94 V-0	Male Pin	58	All	Black	0.525 in	13.34 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	Push-Pull	Through Hole		Unshrouded	0.76 Ám	30 Áin	Solder	0.1 in	2.54 mm	2.54 mm	0.1 in	Phosphor Bronze	8.26 mm	0.325 in	Gold or Gold GXT™
Amphenol ICC (FCI) 86832-452HLF	Square	Header	110 VDC	2	5 A	UL94 V-0	Male Pin	52	All	Black	0.525 in	13.34 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	Push-Pull	Through Hole	Tin	Unshrouded	2.54 çm	100 çin	Solder	0.1 in	2.54 mm	2.54 mm	0.1 in	Phosphor Bronze	8.26 mm	0.325 in
Amphenol ICC (FCI) 86832-142HLF	Square	Header	110 VDC	2	5 A	UL94 V-0	Male Pin	42	All	Black	0.525 in	13.34 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	Push-Pull	Through Hole		Unshrouded	0.76 Ám	30 Áin	Solder	0.1 in	2.54 mm	2.54 mm	0.1 in	Phosphor Bronze	8.26 mm	0.325 in	Gold or Gold GXT™
