002215 Series

Manufacturer: Molex

Catalog

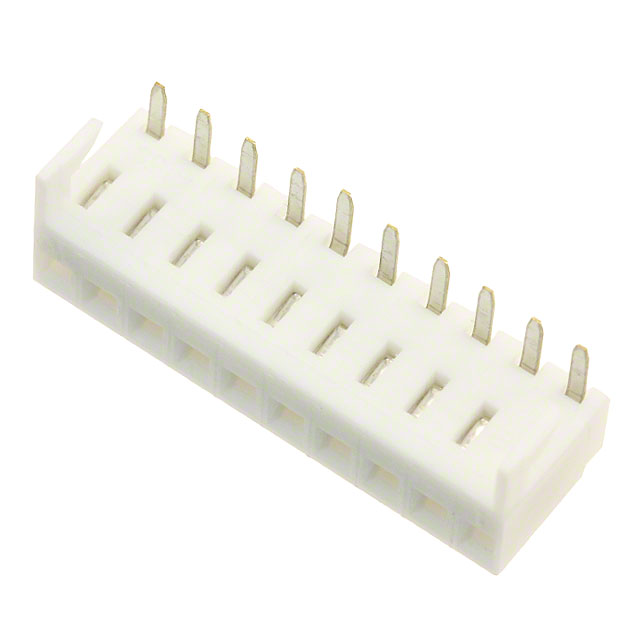

CONN RCPT 10POS 0.1 TIN PCB R/A

Part	Contact Shape	Applications	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Positions	Material Flammability Rating	Mounting Type	Style	Current Rating (Amps)	Termination	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Insulation Color	Voltage Rating	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Finish - Post	Connector Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Connector/Contact Type	Housing Material	Height Above Board [z]	Height Above Board [z]	Contact Finish	Cable End Type	FFC, FCB Thickness	Flat Flex Type	Pitch	Pitch
Molex 0022154102	Square	Automotive General Purpose Medical Telecommunications	Brass	2.54 µm	100 µin	Cat Ear Female Non-Gendered	Nylon Polyamide (PA)	100 çin	2.54 çm	Push-Pull	10	UL94 V-0	Right Angle Through Hole	Board to Board Cable	2.5 A	Solder	All	0.185 in	4.7 mm	White	250 VAC	0.1 "	2.54 mm	1	Tin	Receptacle	Board Hooks	80 °C	-40 C	0.132 in	3.35 mm
Molex 0022153103			Phosphor Bronze								10	UL94 V-0	Right Angle Through Hole			Solder					200 V						Low Insertion Force (LIF)	105 ░C	-40 C			Contacts Bottom	Polyester	6.6 mm	0.26 in	Tin	Straight	0.3 mm	FFC	0.1 "	2.54 mm

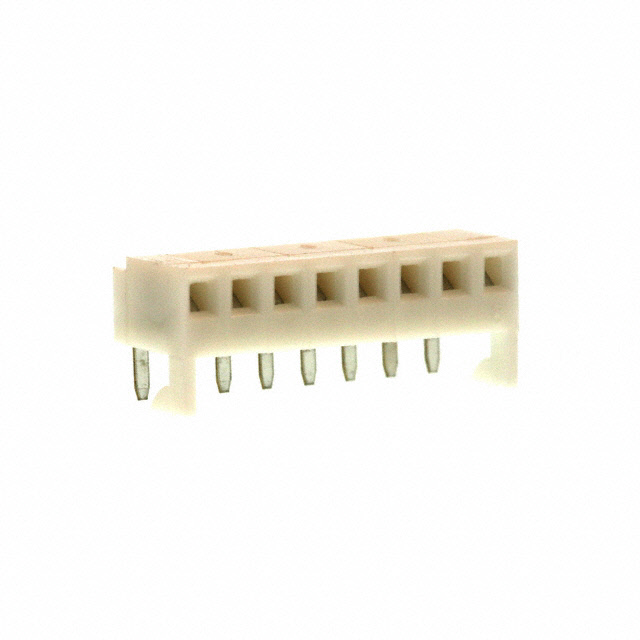

Molex 0022152086	Square	Automotive General Purpose Medical Telecommunications	Brass	2.54 µm	100 µin	Cat Ear Female Non-Gendered	Nylon Polyamide (PA)	100 çin	2.54 çm	Push-Pull	8	UL94 V-0	Board Edge Right Angle Through Hole	Board to Board Cable	2.5 A	Solder	All	0.185 in	4.7 mm	White	250 VAC	0.1 "	2.54 mm	1	Tin	Receptacle	Board Hooks	80 °C	-40 C	0.132 in	3.35 mm
Molex 0022152096	Square	Automotive General Purpose Medical Telecommunications	Brass	2.54 µm	100 µin	Cat Ear Female Non-Gendered	Nylon Polyamide (PA)	100 çin	2.54 çm	Push-Pull	9	UL94 V-0	Board Edge Right Angle Through Hole	Board to Board Cable	2.5 A	Solder	All	0.185 in	4.7 mm	White	250 VAC	0.1 "	2.54 mm	1	Tin	Receptacle	Board Hooks	80 °C	-40 C	0.132 in	3.35 mm
Molex 0022152036	Square	Automotive General Purpose Medical Telecommunications	Brass	2.54 µm	100 µin	Cat Ear Female Non-Gendered	Nylon Polyamide (PA)	100 çin	2.54 çm	Push-Pull		UL94 V-0	Board Edge Right Angle Through Hole	Board to Board Cable	2.5 A	Solder	All	0.185 in	4.7 mm	White	250 VAC	0.1 "	2.54 mm	1	Tin	Receptacle	Board Hooks	80 °C	-40 C	0.132 in	3.35 mm
Molex 0022154105	Square	Automotive General Purpose Medical Telecommunications	Phosphor Bronze	2.54 µm	100 µin	Cat Ear Female Non-Gendered	Nylon Polyamide (PA)	100 çin	2.54 çm	Push-Pull	10	UL94 V-0	Board Edge Right Angle Through Hole	Board to Board Cable	4 A	Solder	All	0.185 in	4.7 mm	White	250 VAC	0.1 "	2.54 mm	1	Tin	Receptacle	Board Hooks	105 ░C	-40 C	0.132 in	3.35 mm
Molex 0022154202	Square	Automotive General Purpose Medical Telecommunications	Brass	2.54 µm	100 µin	Cat Ear Female Non-Gendered	Nylon Polyamide (PA)	100 çin	2.54 çm	Push-Pull	20	UL94 V-0	Right Angle Through Hole	Board to Board Cable	2.5 A	Solder	All	0.185 in	4.7 mm	White	250 VAC	0.1 "	2.54 mm	1	Tin	Receptacle	Board Hooks	80 °C	-40 C	0.132 in	3.35 mm
Molex 0022154074	Square	Automotive General Purpose Medical Telecommunications	Brass	2.54 µm	100 µin	Cat Ear Female	Nylon Polyamide (PA)	100 çin	2.54 çm	Push-Pull	7	UL94 V-0	Right Angle Through Hole	Board to Board Cable	2.5 A	Solder	All	0.185 in	4.7 mm	White	250 VAC	0.1 "	2.54 mm	1	Tin	Receptacle		80 °C	-40 C	0.132 in	3.35 mm
Molex 0022153153			Phosphor Bronze								15	UL94 V-0	Right Angle Through Hole			Solder					200 V						Low Insertion Force (LIF)	105 ░C	-40 C			Contacts Bottom	Polyester	6.6 mm	0.26 in	Tin	Straight	0.3 mm	FFC	0.1 "	2.54 mm
Molex 0022153043			Phosphor Bronze								4	UL94 V-0	Right Angle Through Hole			Solder					200 V						Low Insertion Force (LIF)	105 ░C	-40 C			Contacts Bottom	Polyester	6.6 mm	0.26 in	Tin	Straight	0.3 mm	FFC	0.1 "	2.54 mm
