QPC02 Series

Catalog

CONN JUMPER SHORTING .100" GOLD

Part	Height [z]	Height [z]	Gender	Pitch	Pitch	Contact Finish Thickness	Housing Material	Type	Current Rating (Amps)	Color	Material Flammability Rating	Contact Finish	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid)

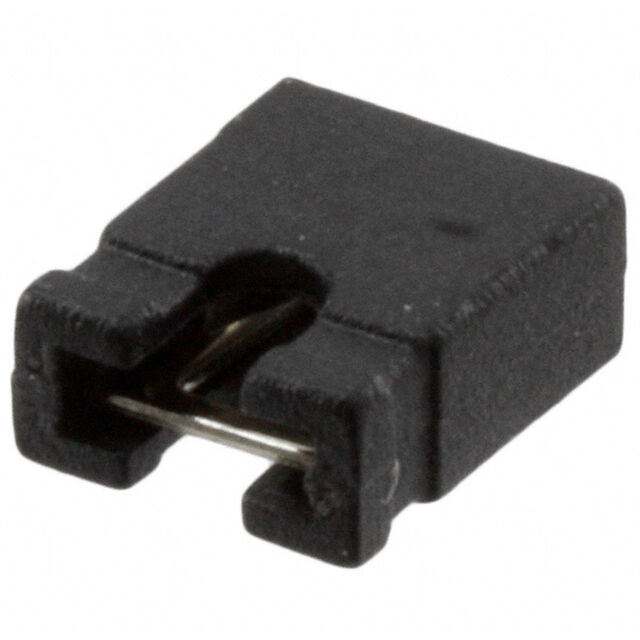

Sullins Connector Solutions QPC02SXGN-RC	5.97 mm	0.235 in	Female Sockets	0.1 "	2.54 mm	Flash	Polybutylene Terephthalate (PBT)	Open Top	3 A	Black	UL94 V-0	Gold	1 x 2	2
Sullins Connector Solutions QPC02QXGN-RC	5.97 mm	0.235 in	Female Sockets	0.1 "	2.54 mm	Flash	Polybutylene Terephthalate (PBT)	Open Top	3 A	Black	UL94 V-0	Gold	1 x 2	2
Sullins Connector Solutions QPC02SXHN-M290RC			Female Sockets	0.1 "	2.54 mm	Flash	Polybutylene Terephthalate (PBT)	Open Top	3 A		UL94 V-0	Gold	1 x 2	2
Sullins Connector Solutions QPC02RXGN-RC	5.97 mm	0.235 in	Female Sockets	0.1 "	2.54 mm	Flash	Polybutylene Terephthalate (PBT)	Open Top	3 A	Black	UL94 V-0	Gold	1 x 2	2
