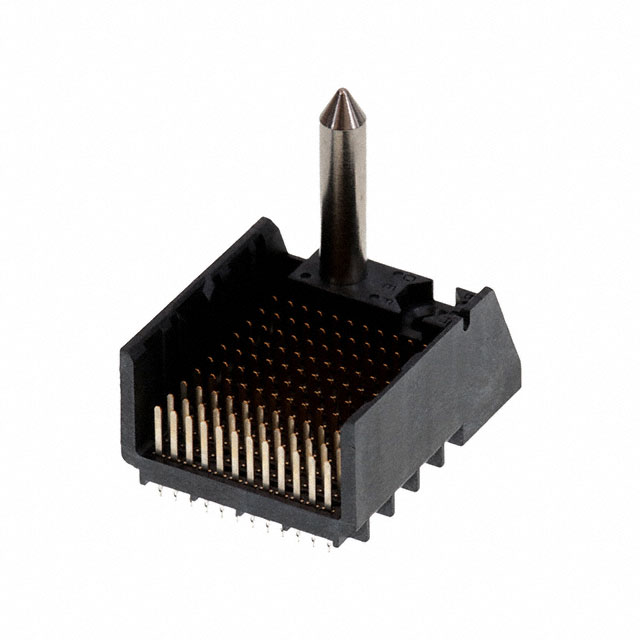

2007809 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
IMP100S,H,V4P10C,LG,OEW39,4.9
| Part | Color | Contact Finish | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Number of Columns | Termination | Mounting Type | Number of Positions Loaded | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Number of Positions | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Connector Type | Voltage Rating | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Black | Gold | UL94 V-0 | 85 °C | -55 °C | 10 | Press-Fit | Through Hole | All | 40 | 80 | 120 | 12 | 0.76 Ám | 30 Áin | 0.075 in | 1.91 mm | Header Male Pins | 30 VDC | Guide Left Impact |
 TE Connectivity Raychem Cable Protection | Black | Gold | UL94 V-0 | 85 °C | -55 °C | 10 | Press-Fit | Through Hole | All | 120 | 12 | 0.76 Ám | 30 Áin | 0.075 in | 1.91 mm | Header Male Pins | 30 VAC | Guide Left Impact |
