17EHD015 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

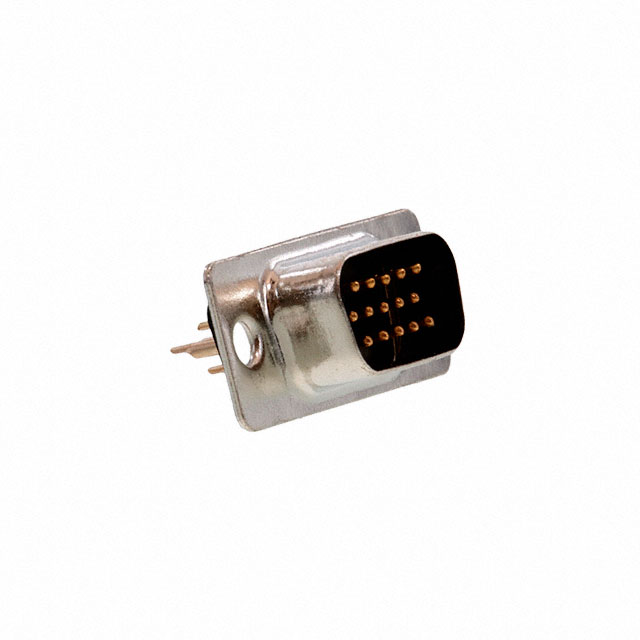

CONN D-SUB HD PLUG 15P SLDR CUP
| Part | Color | Dielectric Material | Contact Form | Voltage Rating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Shell Material, Finish | Current Rating (Amps) | Flange Feature | Flange Feature | Number of Rows [custom] | Material Flammability Rating | Features | Mounting Type | Connector Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Style | Contact Finish | Number of Positions | Contact Finish Thickness | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Black | Glass Filled Nylon Polyamide (PA) | Stamped | 125 VDC | Copper Alloy | -55 C | 105 ░C | Signal | Nickel Plated Steel | 3 A | Housing/Shell | 4-40 | 3 | UL94 V-0 | Grounding Indents | Free Hanging (In-Line) | Plug Male Pins | (DE E) High Density | 1 | D-Sub High Density | Gold | 15 | Flash | |
 Amphenol ICC (Commercial Products) | Black | Glass Filled Nylon Polyamide (PA) | Stamped | 125 VDC | Copper Alloy | -55 C | 105 ░C | Signal | Nickel Plated Steel | 3 A | Housing/Shell (Unthreaded) | 3 | UL94 V-0 | Free Hanging (In-Line) | Receptacle Female Sockets | (DE E) High Density | 1 | D-Sub High Density | Gold | 15 | Flash | |||
 Amphenol ICC (Commercial Products) | Black | Glass Filled Nylon Polyamide (PA) | Stamped | 125 VDC | Copper Alloy | -55 C | 105 ░C | Signal | Nickel Plated Steel | 3 A | Housing/Shell | 4-40 | 3 | UL94 V-0 | Board Lock | Through Hole | Receptacle Female Sockets | (DE E) High Density | 1 | D-Sub High Density | Gold | 15 | Flash | Solder |
Amphenol ICC (Commercial Products) | Black | Glass Filled Nylon Polyamide (PA) | Stamped | 125 VDC | Copper Alloy | -55 C | 105 ░C | Signal | Nickel Plated Steel | 3 A | Housing/Shell (Unthreaded) | 3 | UL94 V-0 | Through Hole | Receptacle Female Sockets | (DE E) High Density | 1 | D-Sub High Density | Gold | 15 | Flash | Solder | ||
 Amphenol ICC (Commercial Products) | Black | Glass Filled Nylon Polyamide (PA) | Stamped | 125 VDC | Copper Alloy | -55 C | 105 ░C | Signal | Nickel Plated Steel | 3 A | Housing/Shell (Unthreaded) | 3 | UL94 V-0 | Grounding Indents | Free Hanging (In-Line) | Plug Male Pins | (DE E) High Density | 1 | D-Sub High Density | Gold | 15 | Flash | ||
Amphenol ICC (Commercial Products) | Black | Glass Filled Nylon Polyamide (PA) | Stamped | 125 VDC | Copper Alloy | -55 C | 105 ░C | Signal | Nickel Plated Steel | 3 A | Housing/Shell | 4-40 | 3 | UL94 V-0 | Free Hanging (In-Line) | Receptacle Female Sockets | (DE E) High Density | 1 | D-Sub High Density | Gold | 15 | Flash |
