A22K1 Series

Catalog

SWITCH ROCKER DPDT 0.4VA 28V

Part	Mechanical Life	Electrical Life	Circuit	Actuator Type	Switch Function	Mounting Type	Actuator Marking	Termination Style	Voltage Rating - AC	Voltage Rating - DC	Features	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Current Rating (Amps)	Approval Agency
NKK Switches A22K1W-DA	100000 Cycles	50000 Cycles	DPDT	Concave (Curved)	On-On	Through Hole	No Marking	Wire Wrap	28 V	28 V	Process Sealed	85 °C	-30 ░C	Black	0.4 VA	CSA UL
NKK Switches A22K1H	100000 Cycles	50000 Cycles	DPDT	Actuator Arm Cap Required	On-On	Right Angle Through Hole	No Marking	PC Pin	28 V	28 V	Process Sealed	85 °C	-30 ░C		0.4 VA	CSA UL
NKK Switches A22K1B-EA	100000 Cycles	50000 Cycles	DPDT	Concave (Curved)	On-On	Through Hole	No Marking	PC Pin	28 V	28 V	Process Sealed	85 °C	-30 ░C	Black	0.4 VA	CSA UL

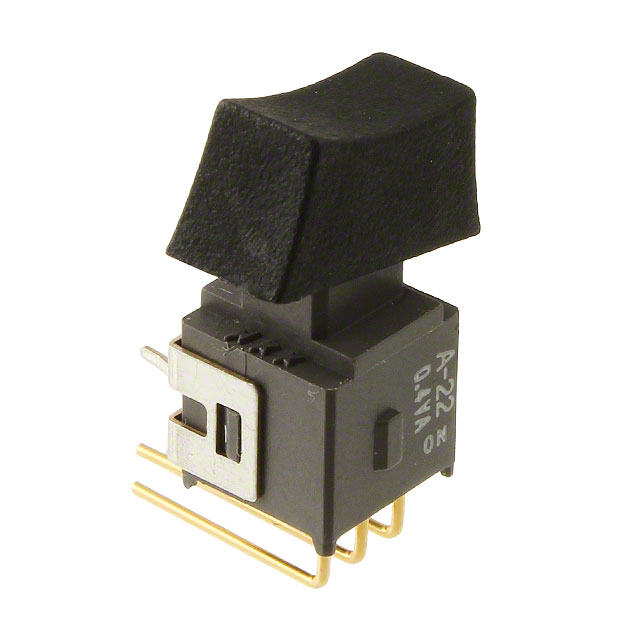

NKK Switches A22K1H-EA	100000 Cycles	50000 Cycles	DPDT	Concave (Curved)	On-On	Right Angle Through Hole	No Marking	PC Pin	28 V	28 V	Process Sealed	85 °C	-30 ░C	Black	0.4 VA	CSA UL
NKK Switches A22K1V-DA	100000 Cycles	50000 Cycles	DPDT	Concave (Curved)	On-On	Right Angle Through Hole Vertical	No Marking	PC Pin	28 V	28 V	Process Sealed	85 °C	-30 ░C	Black	0.4 VA	CSA UL
NKK Switches A22K1B-DA	100000 Cycles	50000 Cycles	DPDT	Concave (Curved)	On-On	Through Hole	No Marking	PC Pin	28 V	28 V	Process Sealed	85 °C	-30 ░C	Black	0.4 VA	CSA UL
NKK Switches A22K1P-DA	100000 Cycles	50000 Cycles	DPDT	Concave (Curved)	On-On	Through Hole	No Marking	PC Pin	28 V	28 V	Process Sealed	85 °C	-30 ░C	Black	0.4 VA	CSA UL
