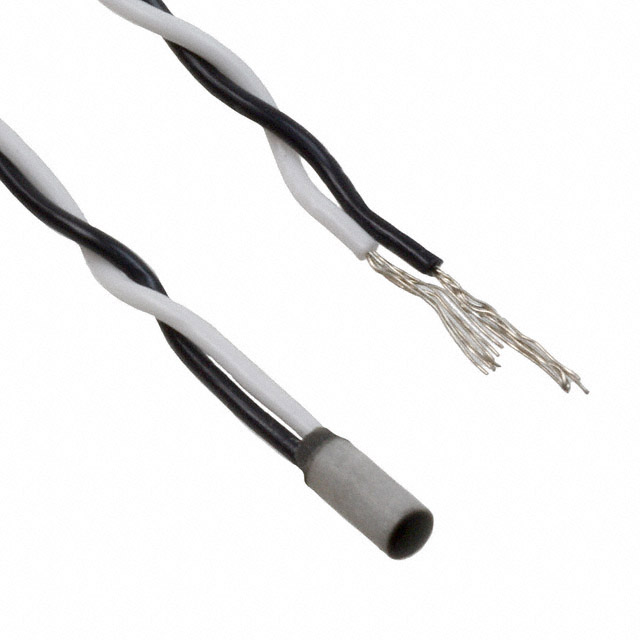

HEL-705 Series

Catalog

SENSOR RTD

Part	Operating Temperature [Max]	Operating Temperature [Min]	Resistance @ 0°C	Package / Case	Current	Resistance Tolerance	Mounting Type	Termination	Accuracy	RTD Material	Resistance Tolerance
Honeywell Sensing and Productivity Solutions HEL-705-U-0-60-00	260 ░C	-70 °C	1000 Ohms	Cylindrical Probe Plastic	1 mA	±0.2%	Free Hanging	Wire Leads	0.3 °C	Platinum (Pt)
Honeywell Sensing and Productivity Solutions HEL-705-U-0-12-C1
Honeywell Sensing and Productivity Solutions HEL-705-U-0-18-00
Honeywell Sensing and Productivity Solutions HEL-705-U-0-24-00	260 ░C	-70 °C	1000 Ohms	Cylindrical Probe Ceramic	1 mA	±0.2%	Free Hanging	Wire Leads	0.5 °C	Platinum (Pt)
Honeywell Sensing and Productivity Solutions HEL-705-U-1-12-C1	260 ░C	-70 °C	1000 Ohms	Cylindrical Probe Ceramic	1 mA		Free Hanging	Wire Leads	0.3 °C	Platinum (Pt)	0.1 %
Honeywell Sensing and Productivity Solutions HEL-705-T-1-12-00	260 ░C	-70 °C	100 Ohms	Cylindrical Probe Ceramic	1 mA		Free Hanging	Wire Leads	0.3 °C	Platinum (Pt)	0.1 %
