TDSR1360 Series

Catalog

DISPLAY 7SEG 0.51" SGL RED 10DIP

Part	Wavelength - Peak	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Millicandela Rating	Color	Power Dissipation (Max) [Max]	Digit/Alpha Size	Digit/Alpha Size	Common Pin	Display Type	Voltage - Forward (Vf) (Typ)	Package / Case	Package / Case	Package / Case	Current - Test	Number of Characters [custom]

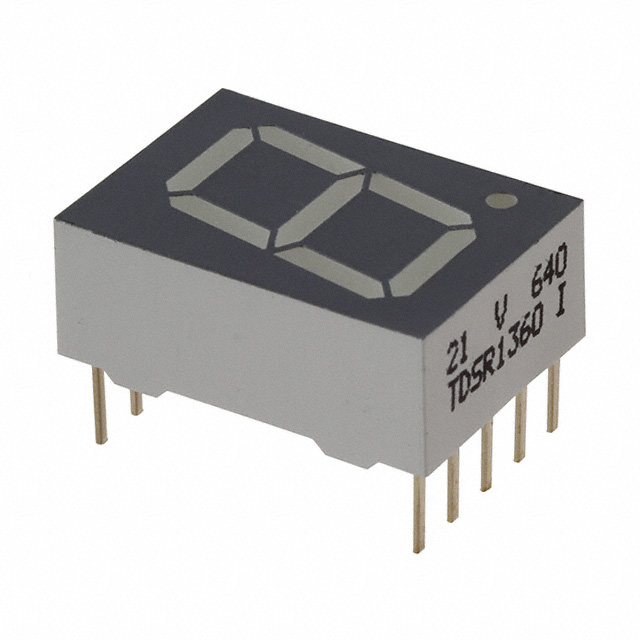

Vishay General Semiconductor - Diodes Division TDSR1360	650 nm	6.4 mm	17.5 mm	0.482 in	0.252 in	0.689 in	12.25 mm	3.6 mcd	Red	185 mW	0.51 in	13 mm	Common Cathode	7-Segment	1.8 V	0.6 in	15.24 mm	10-DIP	1 mA	1

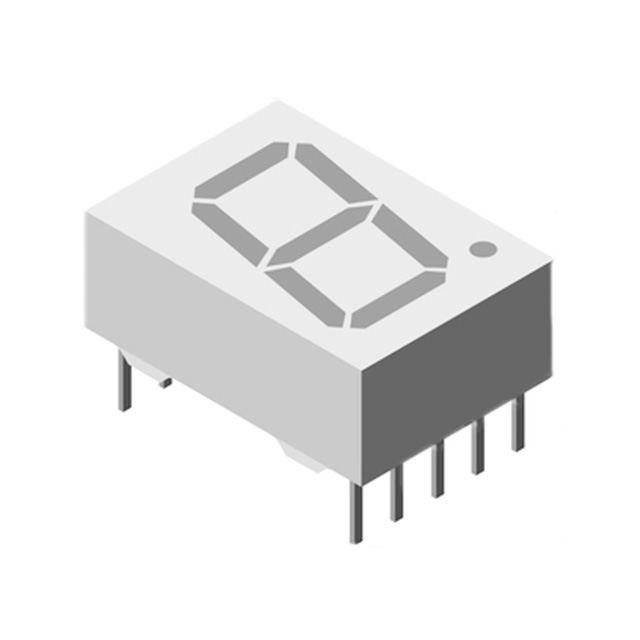

Vishay General Semiconductor - Diodes Division TDSR1360-IK	650 nm	6.4 mm	17.5 mm	0.482 in	0.252 in	0.689 in	12.25 mm	3.6 mcd	Red	185 mW	0.51 in	13 mm	Common Cathode	7-Segment	1.8 V	0.6 in	15.24 mm	10-DIP	1 mA	1
