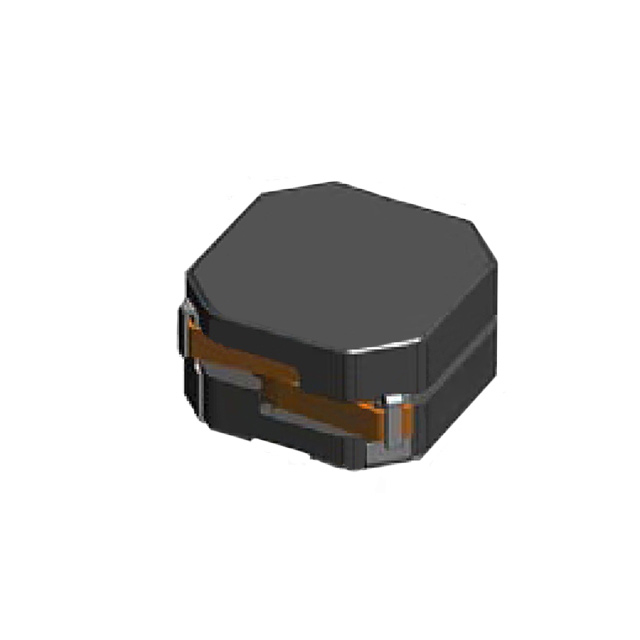

DD1217AS Series
Manufacturer: Murata Electronics
Beta
⌘K
FIXED IND 6.8UH 4.8A 27.6MOHM SM
| Part | Tolerance | Inductance | DC Resistance (DCR) [Max] | Current Rating (Amps) | Shielding | Current - Saturation (Isat) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Inductance Frequency - Test | Package / Case | Type | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Material - Core |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | 30 % | 6.8 µH | 27.6 mOhm | 4.8 A | Shielded | 7 A | 4.5 mm | 0.177 in | 100 kHz | Nonstandard | Drum Core Wirewound | Surface Mount | 8 mm | 0.315 in | 8 mm | 0.315 in | Ferrite |
Murata Electronics | 20 % | 15 µH | 52.8 mOhm | 3.5 A | Shielded | 4.4 A | 4.5 mm | 0.177 in | 100 kHz | Nonstandard | Drum Core Wirewound | Surface Mount | 8 mm | 0.315 in | 8 mm | 0.315 in | Ferrite |
