S12B-PH Series

Catalog

CONN HEADER R/A 12POS 2MM

Part	Style	Insulation Material	Fastening Type	Contact Shape	Mounting Type	Voltage Rating	Contact Material	Termination	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Finish - Post	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Number of Positions Loaded	Shrouding	Contact Length - Post [x]	Contact Length - Post	Contact Type	Number of Rows	Connector Type	Insulation Color	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Features	Number of Rows [custom]	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating
JST Sales America Inc. S12B-PH-KL	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	Detent Lock	Square	Right Angle Through Hole	100 V	Copper Alloy	Press-Fit Solder	0.079 "	2 mm	12	Tin	2 A	85 °C	-25 °C	UL94 V-0	All	Shrouded - 4 Wall	0.134 "	3.4 mm	Male Pin	1	Header	Gray	4.8 mm	0.189 in

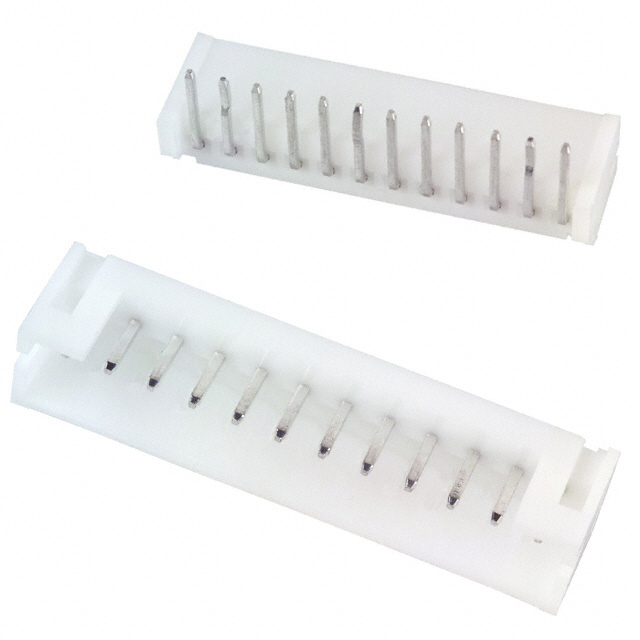

JST Sales America Inc. S12B-PH-K-S	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	Detent Lock	Square	Right Angle Through Hole	100 V	Brass	Press-Fit Solder	0.079 "	2 mm	12	Tin	2 A	85 °C	-25 °C	UL94 V-0	All	Shrouded - 4 Wall	0.134 "	3.4 mm	Male Pin	1	Header	Natural	4.8 mm	0.189 in	0.13 in	3.3 mm

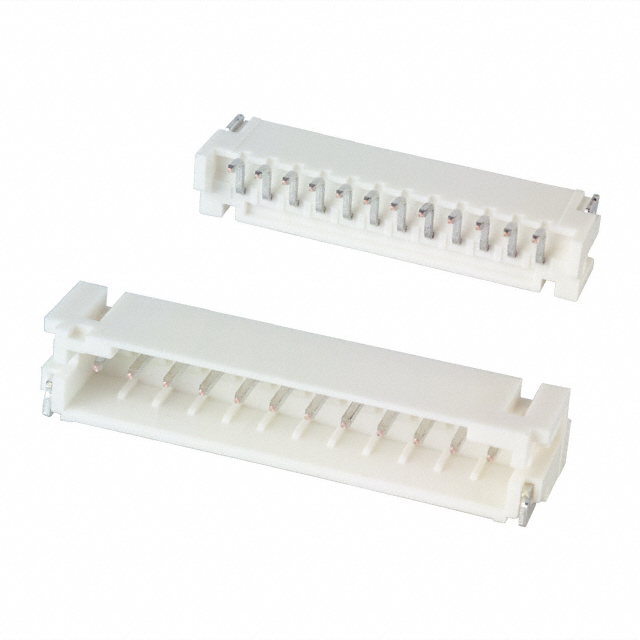

JST Sales America Inc. S12B-PH-SM4-TB	Board to Cable/Wire	Nylon 6T Polyamide (PA6T)	Detent Lock	Square	Right Angle Surface Mount	100 V	Copper Alloy	Solder	0.079 "	2 mm	12	Tin	2 A	85 °C	-25 °C	UL94 V-0	All	Shrouded - 4 Wall			Male Pin	1	Header	Natural	5.51 mm	0.217 in	0.13 in	3.3 mm	Solder Retention

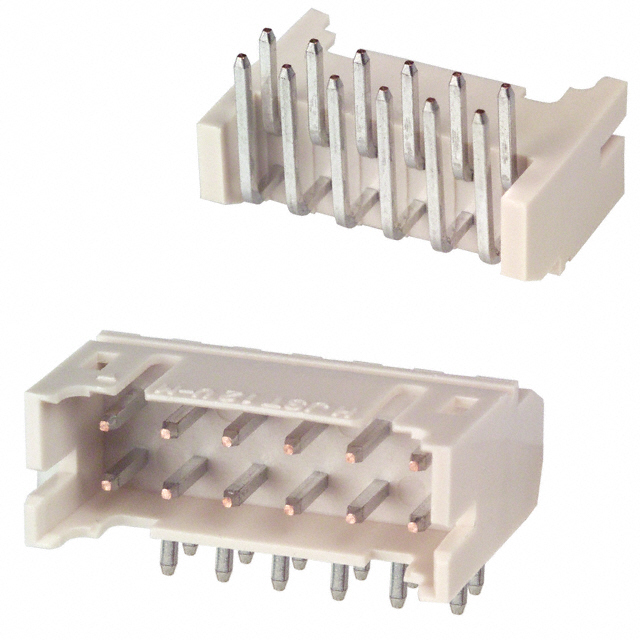

JST Sales America Inc. S12B-PHDSS	Board to Cable/Wire	Glass Filled Nylon Polyamide (PA)	Detent Lock	Square	Right Angle Through Hole	250 V	Copper Alloy	Solder	0.079 "	2 mm	12	Tin	3 A	85 °C	-25 °C	UL94 V-0	All	Shrouded - 4 Wall		3 mm	Male Pin		Header	Natural	5 mm	0.197 "	0.114 in	2.9 mm		2	0.118 in	2 mm	0.079 in
