2823143 Series

Catalog

BOARD CONNECTOR, 2 ROW(S), MALE, STRAIGHT, SOLDER TERMINAL

Part	Features	Fastening Type	Insulation Material	Number of Rows	Connector Type	Number of Positions Loaded	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Termination	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Shrouding	Contact Material	Contact Type	Mounting Type	Current Rating (Amps)	Contact Finish - Mating	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating
TE Connectivity Raychem Cable Protection 2823143-6	Pick and Place	Push-Pull	Thermoplastic	2	Breakaway Header	All	UL94 V-0	-40 °C	105 ░C	Square	Solder	Tin	0.079 in	2 mm	6	3.94 µin	0.1 µm	1.5 mm	0.059 "	2.54 µm	100 µin	4 mm	0.157 in	Unshrouded	Phosphor Bronze	Male Pin	Surface Mount	2 A	Gold	Black	0.079 in	2 mm	125 VAC

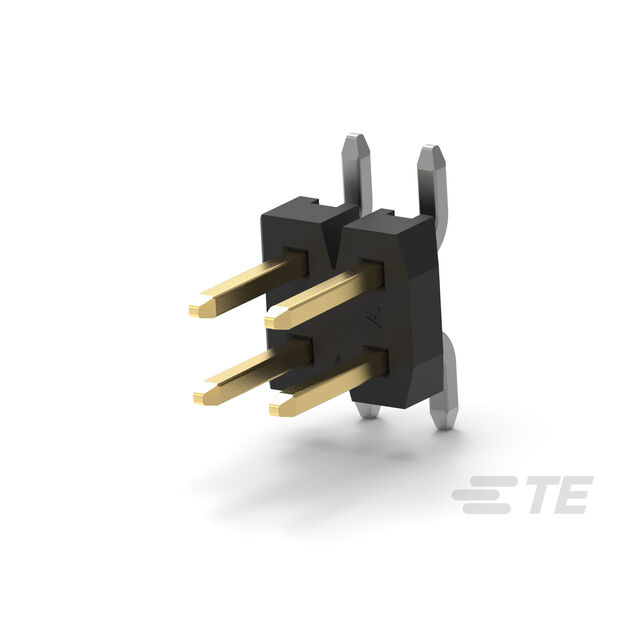

TE Connectivity Raychem Cable Protection 2823143-4	Pick and Place	Push-Pull	Thermoplastic	2	Breakaway Header	All	UL94 V-0	-40 °C	105 ░C	Square	Solder	Tin	0.079 in	2 mm	4	3.94 µin	0.1 µm	1.5 mm	0.059 "	2.54 µm	100 µin	4 mm	0.157 in	Unshrouded	Phosphor Bronze	Male Pin	Surface Mount	2 A	Gold	Black	0.079 in	2 mm	125 VAC
