SFSA480 Series

Manufacturer: SWISSBIT

Catalog

SSD, INTERNAL, 2.5 INCH, SATA 6 GB/S (SATA III), 480 GB, TLC NAND, AES 256-BIT

Part	Memory Type	Type	Form Factor	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Memory Size	Speed - Read	Speed - Write	Voltage - Supply	Form Factor	Current - Max [Max]

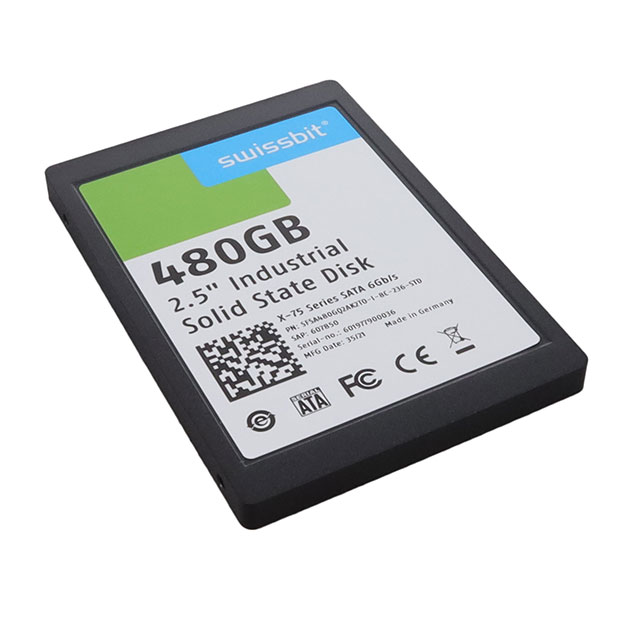

SWISSBIT SFSA480GQ2AK2TO-I-8C-236-STD	Solid State Drive (SSD) FLASH - NAND (TLC)	SATA III	2.5 "	85 °C	-40 C	100 mm	70 mm	7 mm	480 GB	565 MB/s	490 MB/s

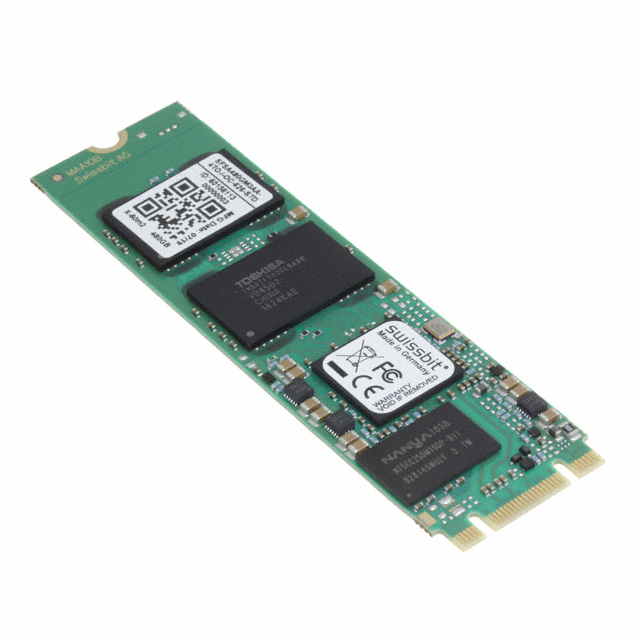

SWISSBIT SFSA480GM3AA4TO-C-OC-626-STD	Solid State Drive (SSD) FLASH - NAND (MLC)	SATA III		70 °C	0 °C	80 mm	22 mm	3.6 mm	480 GB	520 MB/s	450 MB/s	3.3 V	M.2 Module	960 mA
SWISSBIT SFSA480GM3AA4TO-I-OC-626-STD	Solid State Drive (SSD) FLASH - NAND (MLC)	SATA III		85 °C	-40 C	80 mm	22 mm	3.6 mm	480 GB	520 MB/s	450 MB/s	3.3 V	M.2 Module	960 mA
SWISSBIT SFSA480GQ1AA4TO-I-OC-226-STD	Solid State Drive (SSD) FLASH - NAND (MLC)	SATA III	2.5 "	85 °C	-40 C				480 GB	525 MB/s	460 MB/s	3.3 V 5 VDC		740 mA
SWISSBIT SFSA480GQ1AA8TO-I-OC-22P-STD	Solid State Drive (SSD) FLASH - NAND (pSLC)	SATA III	2.5 "	85 °C	-40 C	80 mm	22 mm	3.6 mm	480 GB	520 MB/s	450 MB/s			610 mA
SWISSBIT SFSA480GV3AA4TO-C-OC-226-STD	Solid State Drive (SSD) FLASH - NAND (MLC)	SATA III		70 °C	0 °C	54 mm	39 mm	4 mm	480 GB	520 MB/s	450 MB/s		Slim-SATA	750 mA

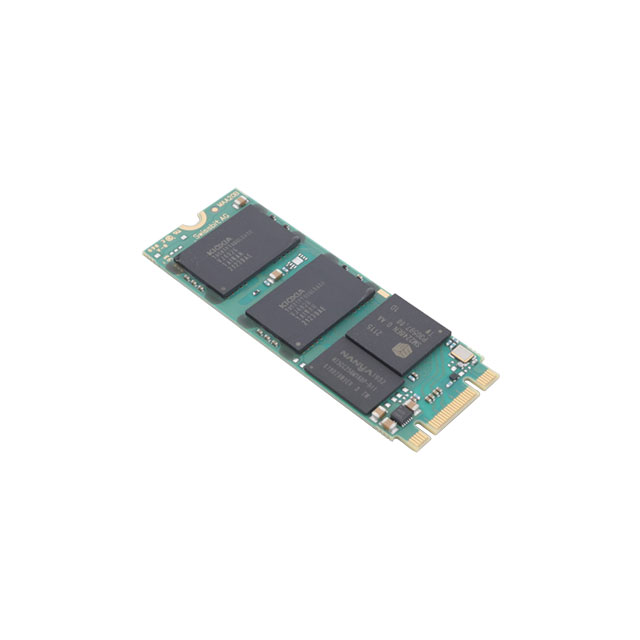

SWISSBIT SFSA480GM3AA4TO-I-OC-426-STD	Solid State Drive (SSD) FLASH - NAND (MLC)	SATA III		85 °C	-40 C	80 mm	22 mm	3.6 mm	480 GB	520 MB/s	450 MB/s	3.3 V	M.2 Module	960 mA
SWISSBIT SFSA480GU4AA4TO-C-OC-226-STD	Solid State Drive (SSD) FLASH - NAND (MLC)	SATA III		70 °C	0 °C	2 in	29.85 mm	3.3 mm	480 GB	520 MB/s	450 MB/s	3.3 V	mSATA	960 mA
SWISSBIT SFSA480GQ2AK2TO-C-8C-236-STD	Solid State Drive (SSD) FLASH - NAND (TLC)	SATA III	2.5 "	70 °C	0 °C	100 mm	70 mm	7 mm	480 GB	565 MB/s	490 MB/s
SWISSBIT SFSA480GQ1AA8TO-C-OC-22P-STD	Solid State Drive (SSD) FLASH - NAND (pSLC)	SATA III	2.5 "	70 °C	0 °C	80 mm	22 mm	3.6 mm	480 GB	520 MB/s	450 MB/s			610 mA
