PR20C06VB Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

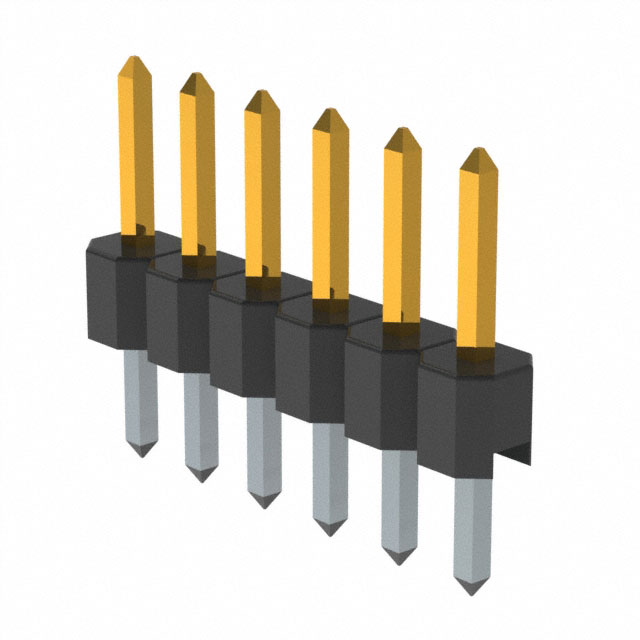

CONN HEADER VERT 6POS 2MM
| Part | Mounting Type | Contact Material | Pitch - Mating | Pitch - Mating | Number of Rows | Contact Finish Thickness - Mating | Shrouding | Contact Type | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Insulation Height [z] | Insulation Height [z] | Overall Contact Length | Overall Contact Length | Contact Length - Mating | Contact Length - Mating | Connector Type | Insulation Material | Contact Finish - Mating | Insulation Color | Number of Positions | Termination | Contact Length - Post [custom] | Contact Length - Post | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | Through Hole | Copper Zinc | 0.079 " | 2 mm | 1 | Flash | Unshrouded | Male Pin | All | -55 C | 105 ░C | Push-Pull | 2 mm | 0.079 in | 0.343 in | 8.7 mm | 0.154 in | 3.91 mm | Header | Polyethylene | Gold | Black | 6 | Solder | 0.11 in | 2.79 mm | Square |
