FTE-107 Series

Catalog

CONN HEADER SMD 14POS 0.8MM

Part	Insulation Height [z]	Insulation Height [z]	Number of Positions	Contact Finish - Mating	Insulation Material	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Shrouding	Connector Type	Mounting Type	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Finish - Post	Number of Rows	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Termination	Contact Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Features	Insulation Height	Insulation Height

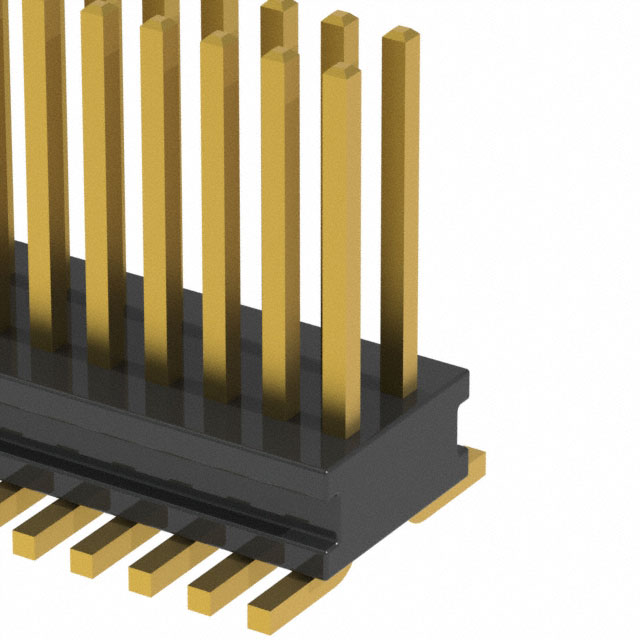

Samtec Inc. FTE-107-02-G-DV	0.055 in	1.4 mm	14	Gold	Liquid Crystal Polymer (LCP)	4.45 mm	0.175 in	-55 °C	125 °C	Push-Pull	Unshrouded	Header	Surface Mount	Black	0.031 in	0.8 mm	Square	Gold	2	Phosphor Bronze	3 µin	0.076 µm	2.7 A	UL94 V-0	10 çin	0.25 çm	1.2 mm	0.047 in	All	Solder	Male Pin

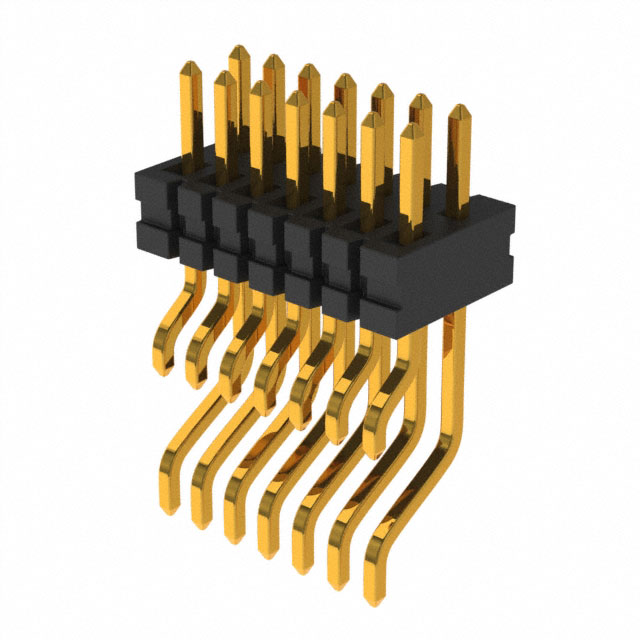

Samtec Inc. FTE-107-01-G-DH-K			14	Gold	Liquid Crystal Polymer (LCP)			-55 °C	125 °C	Push-Pull	Unshrouded	Header	Surface Mount Right Angle	Black	0.031 in	0.8 mm	Square	Gold	2	Phosphor Bronze			2.7 A	UL94 V-0	10 çin	0.25 çm	1.2 mm	0.047 in	All	Solder	Male Pin	1.9 mm	0.075 in	Pick and Place	3.05 mm	0.12 in
Samtec Inc. FTE-107-03-G-DH			14	Gold	Liquid Crystal Polymer (LCP)	3.05 mm	0.12 in	-55 °C	125 °C	Push-Pull	Unshrouded	Header	Surface Mount Right Angle	Black	0.031 in	0.8 mm	Square	Gold	2	Phosphor Bronze			2.7 A	UL94 V-0	10 çin	0.25 çm	1.2 mm	0.047 in	All	Solder	Male Pin				3.05 mm	0.12 in
Samtec Inc. FTE-107-03-G-DV	0.055 in	1.4 mm	14	Gold	Liquid Crystal Polymer (LCP)	3.05 mm	0.12 in	-55 °C	125 °C	Push-Pull	Unshrouded	Header	Surface Mount	Black	0.031 in	0.8 mm	Square	Gold	2	Phosphor Bronze			2.7 A	UL94 V-0	10 çin	0.25 çm	1.2 mm	0.047 in	All	Solder	Male Pin
Samtec Inc. FTE-107-03-G-DH-K-TR			14	Gold	Liquid Crystal Polymer (LCP)	3.05 mm	0.12 in	-55 °C	125 °C	Push-Pull	Unshrouded	Header	Surface Mount Right Angle	Black	0.031 in	0.8 mm	Square	Gold	2	Phosphor Bronze			2.7 A	UL94 V-0	10 çin	0.25 çm	1.2 mm	0.047 in	All	Solder	Male Pin			Pick and Place	3.05 mm	0.12 in

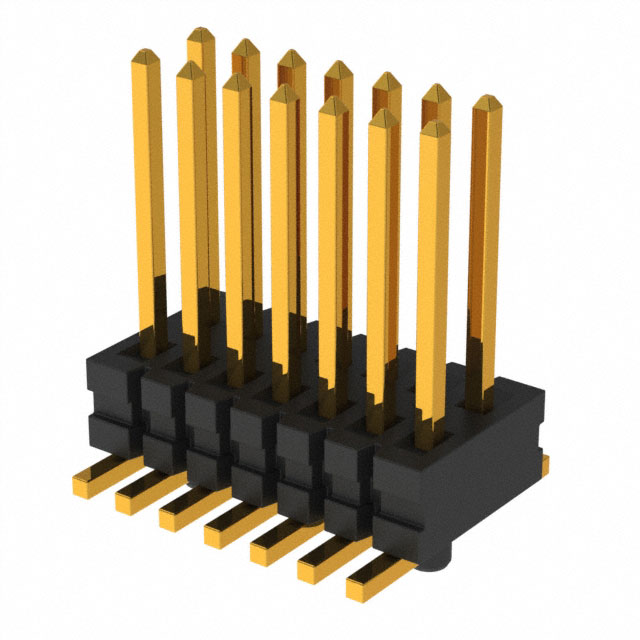

Samtec Inc. FTE-107-01-G-DV-A	0.055 in	1.4 mm	14	Gold	Liquid Crystal Polymer (LCP)			-55 °C	125 °C	Push-Pull	Unshrouded	Header	Surface Mount	Black	0.031 in	0.8 mm	Square	Gold	2	Phosphor Bronze			2.7 A	UL94 V-0	10 çin	0.25 çm	1.2 mm	0.047 in	All	Solder	Male Pin	1.9 mm	0.075 in	Board Guide

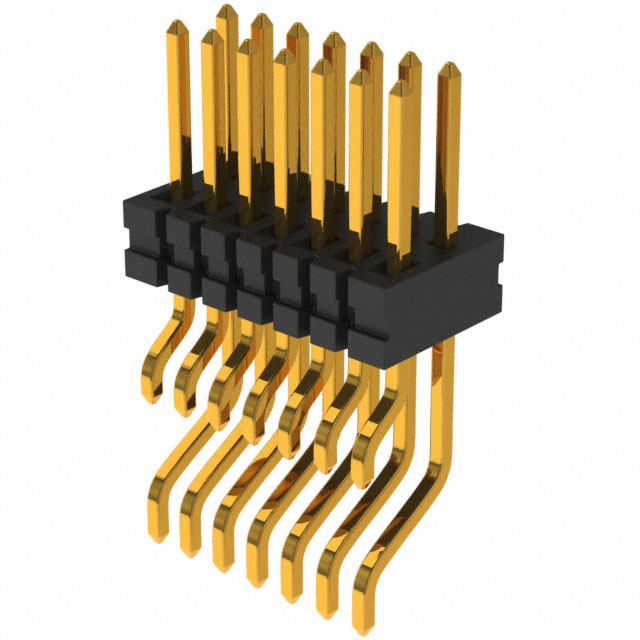

Samtec Inc. FTE-107-02-G-DH-TR			14	Gold	Liquid Crystal Polymer (LCP)	4.45 mm	0.175 in	-55 °C	125 °C	Push-Pull	Unshrouded	Header	Surface Mount Right Angle	Black	0.031 in	0.8 mm	Square	Gold	2	Phosphor Bronze			2.7 A	UL94 V-0	10 çin	0.25 çm	1.2 mm	0.047 in	All	Solder	Male Pin				3.05 mm	0.12 in

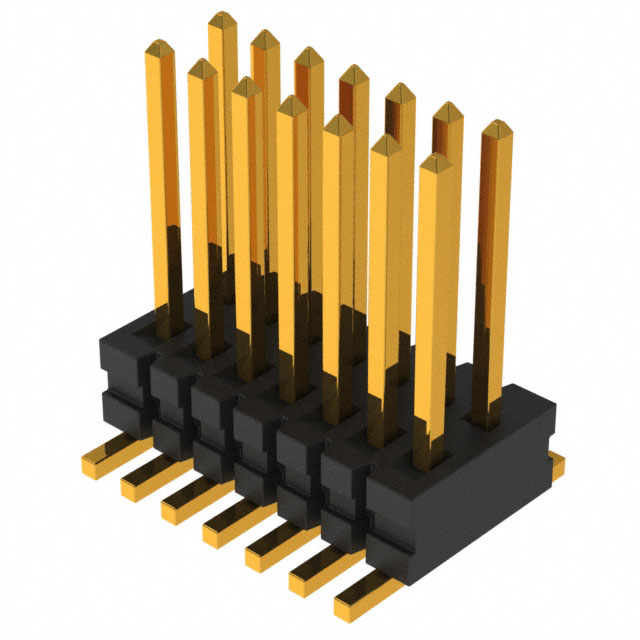

Samtec Inc. FTE-107-01-G-DV	0.055 in	1.4 mm	14	Gold	Liquid Crystal Polymer (LCP)			-55 °C	125 °C	Push-Pull	Unshrouded	Header	Surface Mount	Black	0.031 in	0.8 mm	Square	Gold	2	Phosphor Bronze	3 µin	0.076 µm	2.7 A	UL94 V-0	10 çin	0.25 çm	1.2 mm	0.047 in	All	Solder	Male Pin	1.9 mm	0.075 in
Samtec Inc. FTE-107-02-G-DV-A	0.055 in	1.4 mm	14	Gold	Liquid Crystal Polymer (LCP)	4.45 mm	0.175 in	-55 °C	125 °C	Push-Pull	Unshrouded	Header	Surface Mount	Black	0.031 in	0.8 mm	Square	Gold	2	Phosphor Bronze			2.7 A	UL94 V-0	10 çin	0.25 çm	1.2 mm	0.047 in	All	Solder	Male Pin			Board Guide
Samtec Inc. FTE-107-01-G-DV-ES-TR	0.055 in	1.4 mm	14	Gold	Liquid Crystal Polymer (LCP)			-55 °C	125 °C	Push-Pull	Unshrouded	Header	Surface Mount	Black	0.031 in	0.8 mm	Square	Gold	2	Phosphor Bronze			2.7 A	UL94 V-0	10 çin	0.25 çm	1.2 mm	0.047 in	All	Solder	Male Pin	1.9 mm	0.075 in	End Shrouds
