EL100D1 Series

Catalog

SSR RELAY SPST-NO 10A 3-100V

Part	Mounting Type	Termination Style	Termination Style	Package / Case	On-State Resistance (Max) [Max]	Voltage - Load [Min]	Voltage - Load [Max]	Approval Agency	Output Type	Load Current	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]

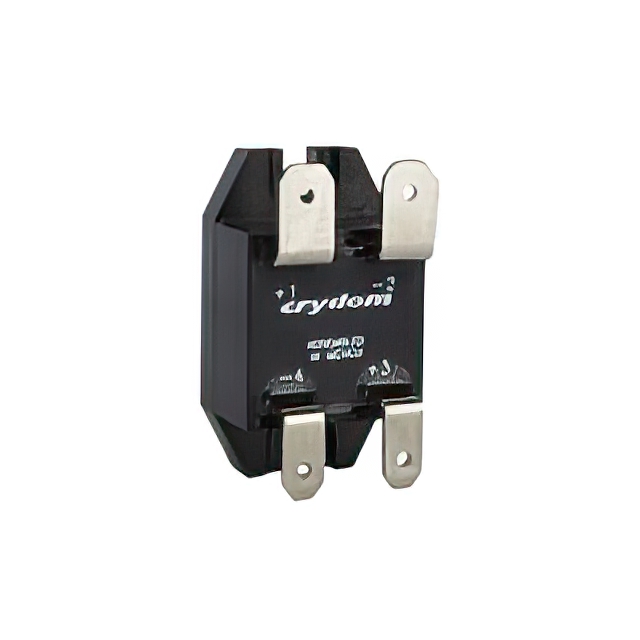

Sensata-Crydom EL100D10-12N	Chassis Mount	0.187 in 0.25 in	Quick Connect	Module	10 mOhms	3 V	100 V	CE cURus TUV	DC	10 A	14 V	10 V	80 °C	-30 ░C
Sensata-Crydom EL100D10-05N	Chassis Mount	0.187 in 0.25 in	Quick Connect	Module	10 mOhms	3 V	100 V	CE cURus TUV	DC	10 A	8 VDC	4 V	80 °C	-30 ░C
Sensata-Crydom EL100D10-24	Chassis Mount	0.187 in 0.25 in	Quick Connect	Module	10 mOhms	3 V	100 V	CE cURus TUV	DC	10 A	27 V	21 V	80 °C	-30 ░C
Sensata-Crydom EL100D10-12	Chassis Mount	0.187 in 0.25 in	Quick Connect	Module	10 mOhms	3 V	100 V	CE cURus TUV	DC	10 A	14 V	10 V	80 °C	-30 ░C
