BG305 Series

Manufacturer: GCT

Catalog

2W, 2.54MM PTH HDR,U SHAPED,DUAL

Part	Contact Finish Thickness - Post	Contact Finish - Mating	Termination	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Finish - Post	Number of Positions	Number of Positions Loaded	Contact Material	Mounting Type	Current Rating (Amps)	Insulation Height	Insulation Height	Insulation Color	Contact Type	Number of Rows	Contact Shape	Shrouding	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating

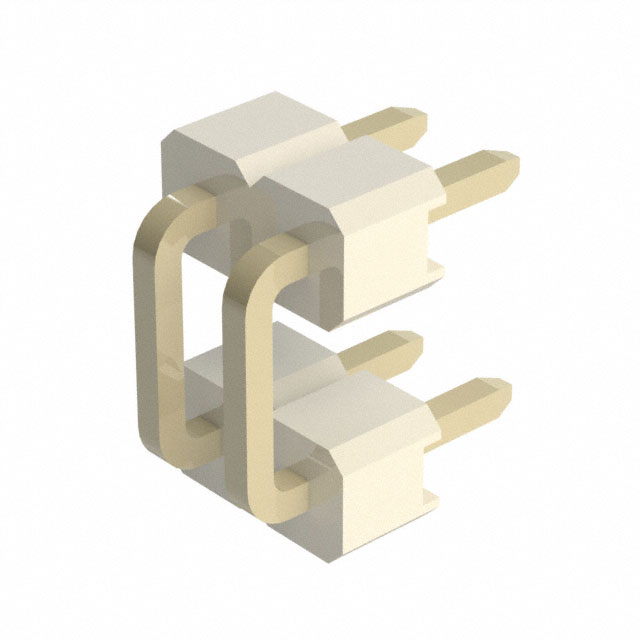

GCT BG305-02-A-0500-L-G	Flash	Gold	Solder	0.1 "	2.54 mm	UL94 V-0	Gold	2	All	Brass	Through Hole	3 A	0.098 "	2.5 mm	Natural	Male Pin	1	Square	Unshrouded	Header	-40 C	105 ░C	Push-Pull	0.118 in	3 mm	3 mm	0.118 in	Flash

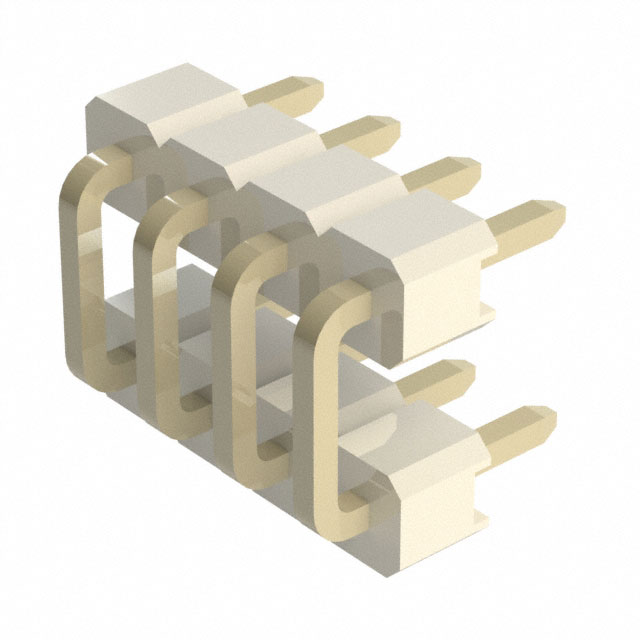

GCT BG305-04-A-0500-L-D	Flash	Gold	Solder	0.1 "	2.54 mm	UL94 V-0	Gold	4	All	Brass	Through Hole	3 A	0.098 "	2.5 mm	Natural	Male Pin	1	Square	Unshrouded	Header	-40 C	105 ░C	Push-Pull	0.118 in	3 mm	3 mm	0.118 in	Flash

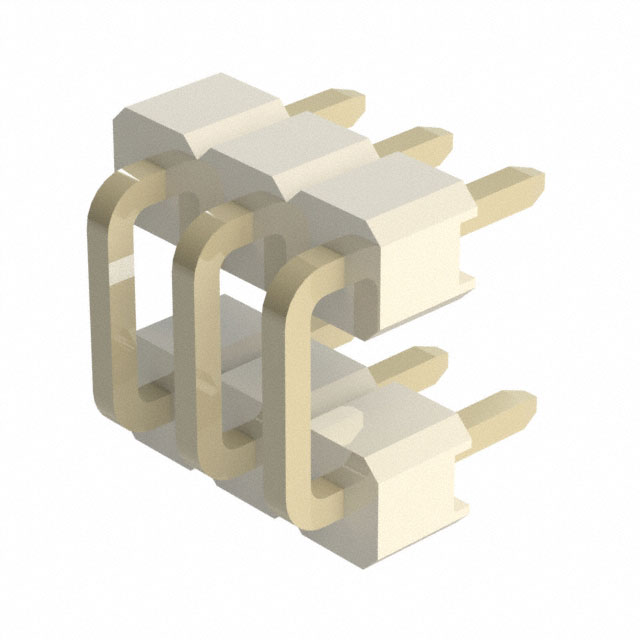

GCT BG305-03-A-0500-L-D	Flash	Gold	Solder	0.1 "	2.54 mm	UL94 V-0	Gold		All	Brass	Through Hole	3 A	0.098 "	2.5 mm	Natural	Male Pin	1	Square	Unshrouded	Header	-40 C	105 ░C	Push-Pull	0.118 in	3 mm	3 mm	0.118 in	Flash
GCT BG305-05-A-0500-L-D	Flash	Gold	Solder	0.1 "	2.54 mm	UL94 V-0	Gold	5	All	Brass	Through Hole	3 A	0.098 "	2.5 mm	Natural	Male Pin	1	Square	Unshrouded	Header	-40 C	105 ░C	Push-Pull	0.118 in	3 mm	3 mm	0.118 in	Flash
GCT BG305-06-A-0500-L-D	Flash	Gold	Solder	0.1 "	2.54 mm	UL94 V-0	Gold	6	All	Brass	Through Hole	3 A	0.098 "	2.5 mm	Natural	Male Pin	1	Square	Unshrouded	Header	-40 C	105 ░C	Push-Pull	0.118 in	3 mm	3 mm	0.118 in	Flash
