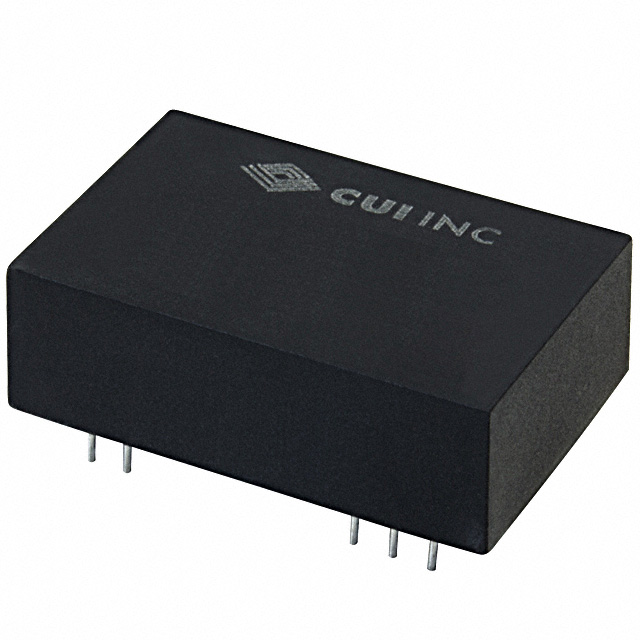

PVB3-D24 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER +/-5V 3W

Part	Standard Number	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Applications	Approval Agency	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Voltage - Isolation	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Output 2	Current - Output (Max) [Max]	Package / Case	Power (Watts)	Features	Type	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
CUI Inc. PVB3-D24-D5-D	55024 55032	5 V	-40 C	105 ░C	18 V	ITE (Commercial)	EN	Through Hole	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	81 %	3000 V	36 V	2	-5 V	0.3 A	24-DIP Module 10 Leads	3 W	OCP SCP	Isolated Module
CUI Inc. PVB3-D24-D12-D	55024 55032	12 V	-40 C	105 ░C	18 V	ITE (Commercial)	EN	Through Hole	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	81 %	3000 V	36 V	2	-12 V		24-DIP Module 10 Leads	3 W	OCP SCP	Isolated Module	125 mA
CUI Inc. PVB3-D24-D15-D	55024 55032	15 V	-40 C	105 ░C	18 V	ITE (Commercial)	EN	Through Hole	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	84 %	3000 V	36 V	2	-15 V		24-DIP Module 10 Leads	3 W	OCP SCP	Isolated Module		100 mA	100 mA
CUI Inc. PVB3-D24-S5-D	55024 60950-1	5 V	-40 C	105 ░C	18 V	ITE (Commercial)	CB Scheme EN IEC UL	Through Hole	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	81 %	3000 V	36 V	1		600 mA	24-DIP Module 10 Leads	3 W	OCP SCP	Isolated Module
