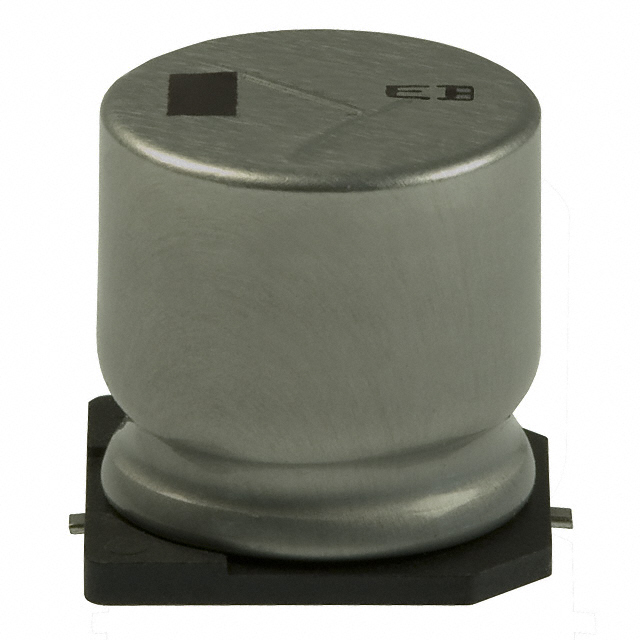

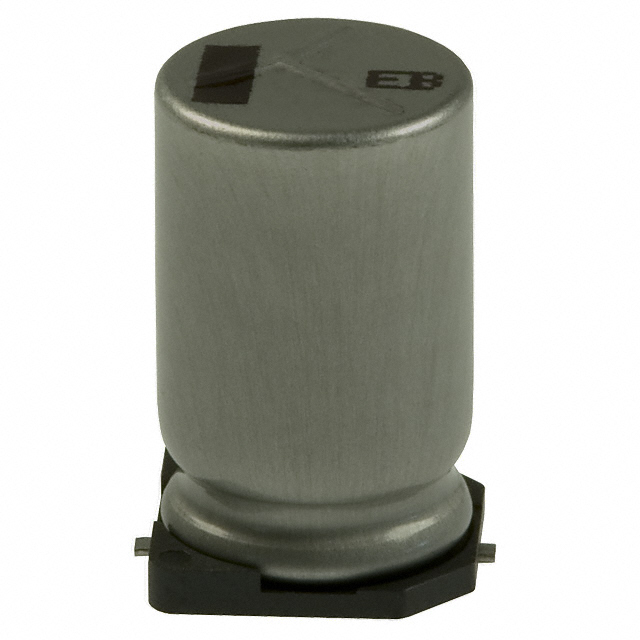

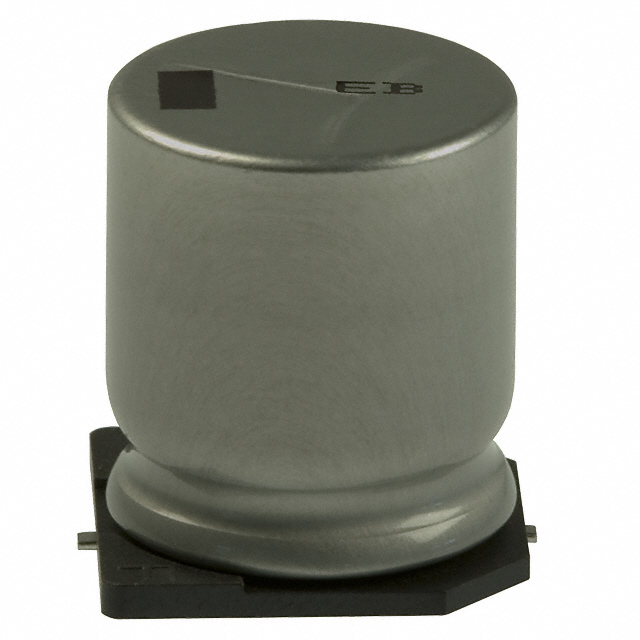

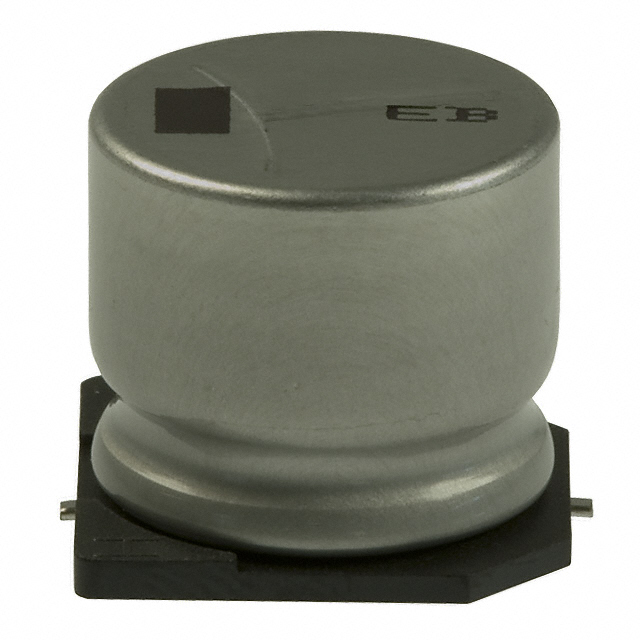

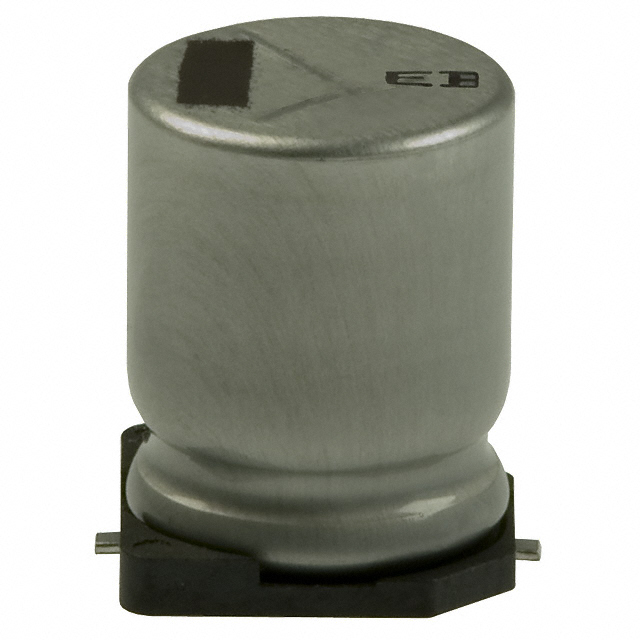

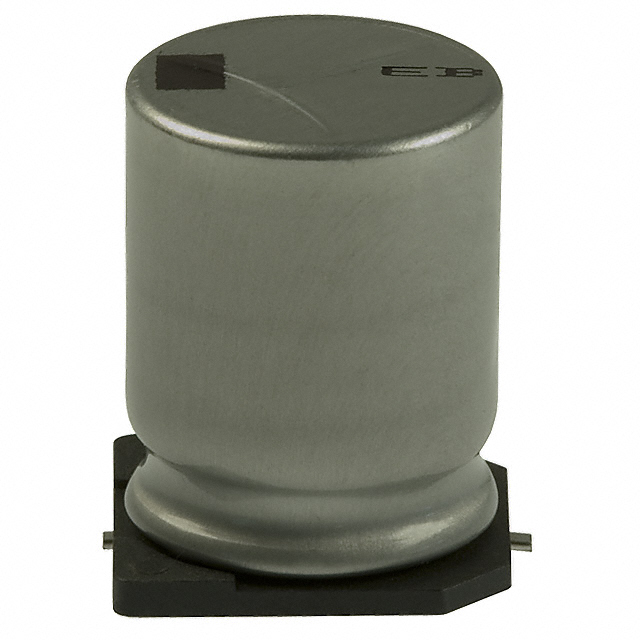

EEV-EB Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM 10UF 20% 450V SMD

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Polarization	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Mounting Type	Ripple Current @ Low Frequency	Voltage - Rated	Tolerance	Applications	Ripple Current @ High Frequency	Height - Seated (Max)	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales EEV-EB2W100SM	17 mm	0.669 in	Polar	5000 Hrs	-25 °C	105 ░C	10 µF	Radial Can - SMD	0.709 "	18 mm	0.748 in	19 mm	19 mm	0.748 in	Surface Mount	155 mA	450 V	20 %	General Purpose	310 mA
Panasonic Industrial Automation Sales EEV-EB2V470M	22 mm	0.866 in	Polar	5000 Hrs	-25 °C	105 ░C	47 µF	Radial Can - SMD	0.709 "	18 mm	0.748 in	19 mm	19 mm	0.748 in	Surface Mount	335 mA	350 V	20 %	General Purpose
Panasonic Industrial Automation Sales EEV-EB2G100SM	17 mm	0.669 in	Polar	5000 Hrs	-25 °C	105 ░C	10 µF	Radial Can - SMD	0.63 in	16 mm	0.669 in	17 mm	17 mm	0.669 in	Surface Mount	125 mA	400 V	20 %	General Purpose	250 mA
Panasonic Industrial Automation Sales EEV-EB2D470SM	17 mm	0.669 in	Polar	5000 Hrs	-25 °C	105 ░C	47 µF	Radial Can - SMD	0.709 "	18 mm	0.748 in	19 mm	19 mm	0.748 in	Surface Mount	330 mA	200 V	20 %	General Purpose	600 mA
Panasonic Industrial Automation Sales EEV-EB2C680M	22 mm	0.866 in	Polar	5000 Hrs	-25 °C	105 ░C	68 µF	Radial Can - SMD	0.63 in	16 mm	0.669 in	17 mm	17 mm	0.669 in	Surface Mount	412.5 mA	160 V	20 %	General Purpose	750 mA
Panasonic Industrial Automation Sales EEV-EB2W220M	22 mm	0.866 in	Polar	5000 Hrs	-25 °C	105 ░C	22 µF	Radial Can - SMD	0.709 "	18 mm	0.748 in	19 mm	19 mm	0.748 in	Surface Mount	280 mA	450 V	20 %	General Purpose	560 mA
Panasonic Industrial Automation Sales EEV-EB2G220M	22 mm	0.866 in	Polar	5000 Hrs	-25 °C	105 ░C	22 µF	Radial Can - SMD	0.63 in	16 mm	0.669 in	17 mm	17 mm	0.669 in	Surface Mount	205 mA	400 V	20 %	General Purpose	410 mA
Panasonic Industrial Automation Sales EEV-EB2D101M	22 mm	0.866 in	Polar	5000 Hrs	-25 °C	105 ░C	100 µF	Radial Can - SMD	0.709 "	18 mm	0.748 in	19 mm	19 mm	0.748 in	Surface Mount	583 mA	200 V	20 %	General Purpose	1.06 A
Panasonic Industrial Automation Sales EEV-EB2D100Q	17 mm	0.669 in	Polar	4000 Hrs	-25 °C	105 ░C	10 µF	Radial Can - SMD	0.394 in	10 mm	0.406 in	10.3 mm	10.3 mm	0.406 "	Surface Mount	44 mA	200 V	20 %	General Purpose	80 mA
Panasonic Industrial Automation Sales EEV-EB2C100Q			Polar	3000 Hrs	-25 °C	105 ░C	10 µF	Radial Can - SMD	0.394 in	10 mm	0.406 in	10.3 mm	10.3 mm	0.406 "	Surface Mount	38.5 mA	160 V	20 %	General Purpose	70 mA	14 mm	0.551 "
