D01-982 Series

Catalog

SUB-MIN SKT/CARRIER ROHS COMPLIANT: YES

Part	Operating Temperature [Max]	Operating Temperature [Min]	Insertion Force [Max]	Insertion Force [Min]	Features	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Min]	Contact Finish	Length - Overall [x]	Length - Overall [x]	Socket Depth	Socket Depth	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Termination

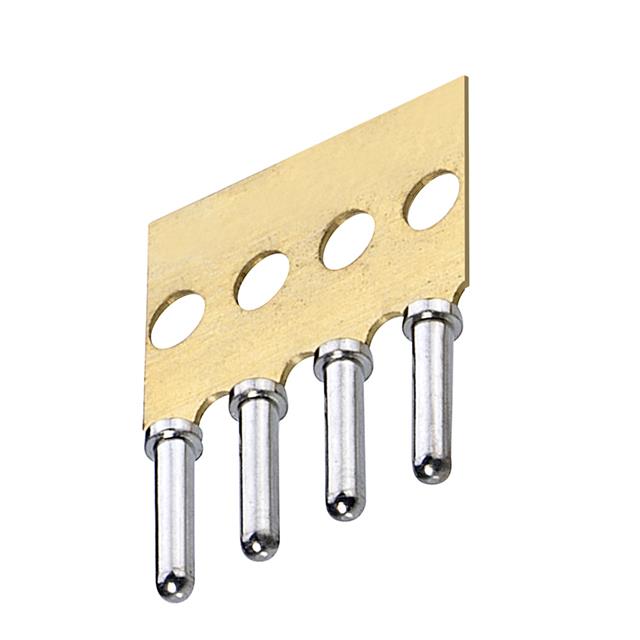

Harwin Inc. D01-9820401	100 °C	-55 C	6 N	2 N	Strip of 4	1.09 mm	0.043 in	0.99 mm	0.039 in	Gold	0.193 in	4.9 mm	4.45 mm	0.175 "	No Tail	0.057 in	1.45 mm	Beryllium Copper	Solder

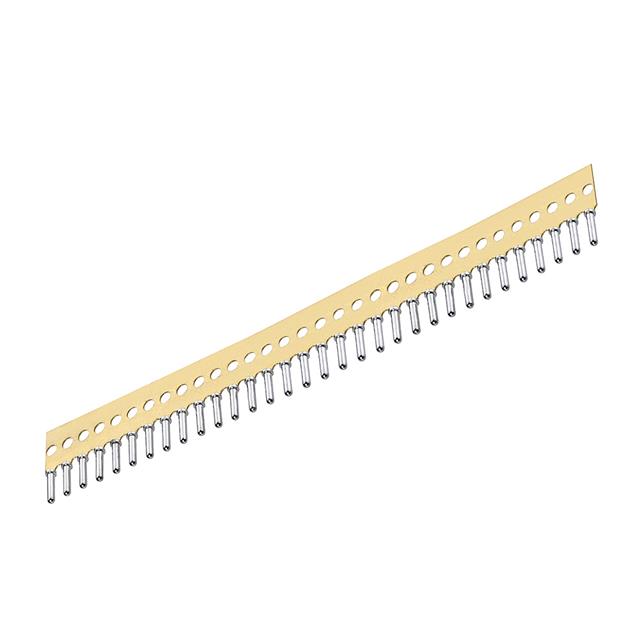

Harwin Inc. D01-9823201	100 °C	-55 C	6 N	2 N	Strip of 32	1.09 mm	0.043 in	0.99 mm	0.039 in	Gold	0.193 in	4.9 mm	4.45 mm	0.175 "	No Tail	0.057 in	1.45 mm	Beryllium Copper	Solder

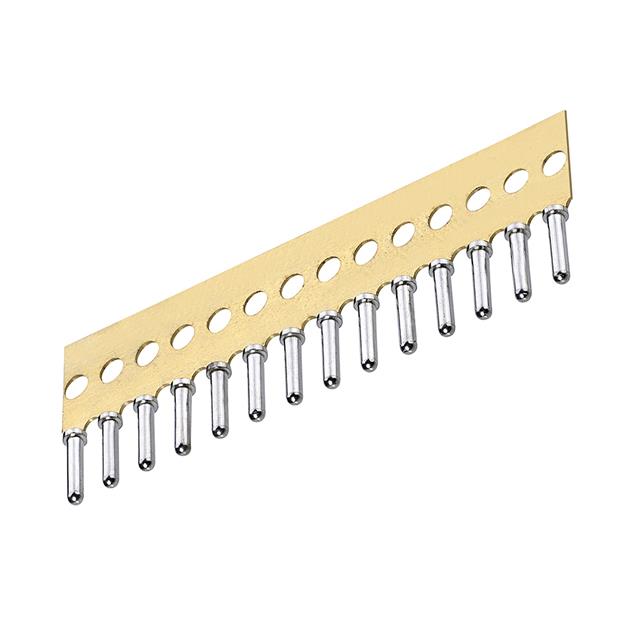

Harwin Inc. D01-9821401	100 °C	-55 C	6 N	2 N	Strip of 14	1.09 mm	0.043 in	0.99 mm	0.039 in	Gold	0.193 in	4.9 mm	4.45 mm	0.175 "	No Tail	0.057 in	1.45 mm	Beryllium Copper	Solder

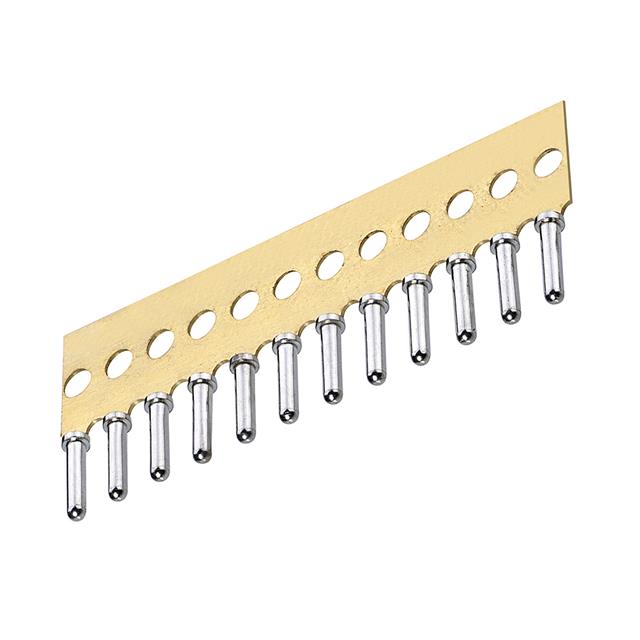

Harwin Inc. D01-9821201	100 °C	-55 C	6 N	2 N	Strip of 12	1.09 mm	0.043 in	0.99 mm	0.039 in	Gold	0.193 in	4.9 mm	4.45 mm	0.175 "	No Tail	0.057 in	1.45 mm	Beryllium Copper	Solder
Harwin Inc. D01-9822001	100 °C	-55 C	6 N	2 N	Strip of 20	1.09 mm	0.043 in	0.99 mm	0.039 in	Gold	0.193 in	4.9 mm	4.45 mm	0.175 "	No Tail	0.057 in	1.45 mm	Beryllium Copper	Solder

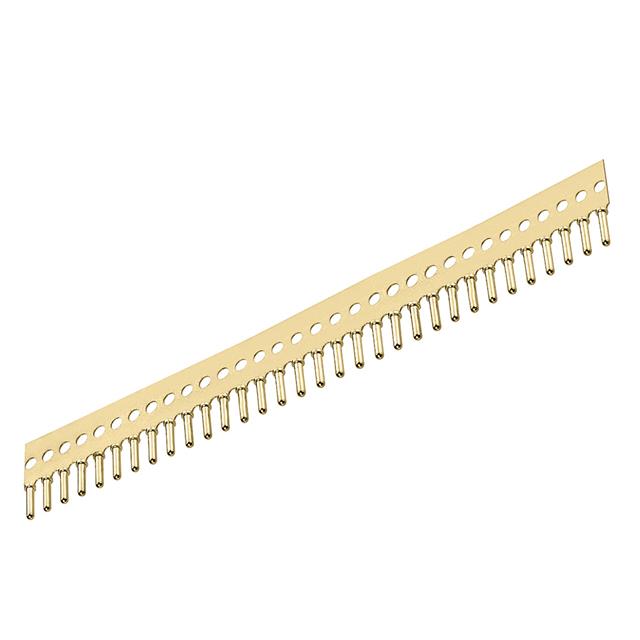

Harwin Inc. D01-9823205	100 °C	-55 C	6 N	2 N	Strip of 32	1.09 mm	0.043 in	0.99 mm	0.039 in	Gold	0.193 in	4.9 mm	4.45 mm	0.175 "	No Tail	0.057 in	1.45 mm	Beryllium Copper	Solder
Harwin Inc. D01-9821001	100 °C	-55 C	6 N	2 N	Strip of 10	1.09 mm	0.043 in	0.99 mm	0.039 in	Gold	0.193 in	4.9 mm	4.45 mm	0.175 "	No Tail	0.057 in	1.45 mm	Beryllium Copper	Solder
Harwin Inc. D01-9821601	100 °C	-55 C	6 N	2 N		1.09 mm	0.043 in	0.99 mm	0.039 in	Gold	0.193 in	4.9 mm	4.45 mm	0.175 "	No Tail	0.057 in	1.45 mm	Beryllium Copper	Solder
