NPTC392 Series

Catalog

CONN HDR 78POS 0.1 TIN SMD

Part	Insulation Material	Contact Shape	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Insulation Height [z]	Insulation Height	Number of Rows [custom]	Connector Type	Termination	Current Rating (Amps)	Number of Positions	Features	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Insulation Color	Fastening Type	Number of Positions Loaded	Contact Type	Contact Finish - Post	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]
Sullins Connector Solutions NPTC392KFMP-RC	Nylon 6T Polyamide (PA6T)	Square	Phosphor Bronze	0.1 in	2.54 mm	Surface Mount	0.299 "	7.6 mm	2	Header	Solder	3 A	78	Board Guide	UL94 V-0	0.1 "	2.54 mm	Black	Push-Pull	All	Female Socket	Tin	250 V	125 °C	-40 C

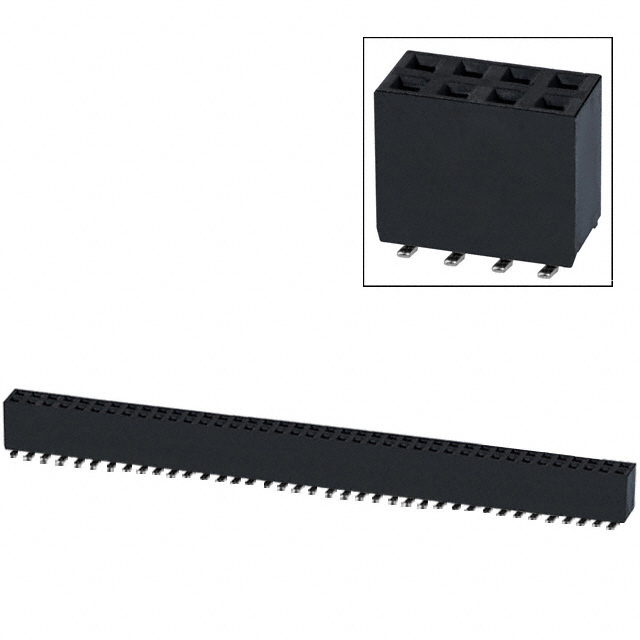

Sullins Connector Solutions NPTC392KFMS-RC	Nylon 6T Polyamide (PA6T)	Square	Phosphor Bronze	0.1 in	2.54 mm	Surface Mount	0.299 "	7.6 mm	2	Header	Solder	3 A	78		UL94 V-0	0.1 "	2.54 mm	Black	Push-Pull	All	Female Socket	Tin	250 V	125 °C	-40 C
