2180850 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

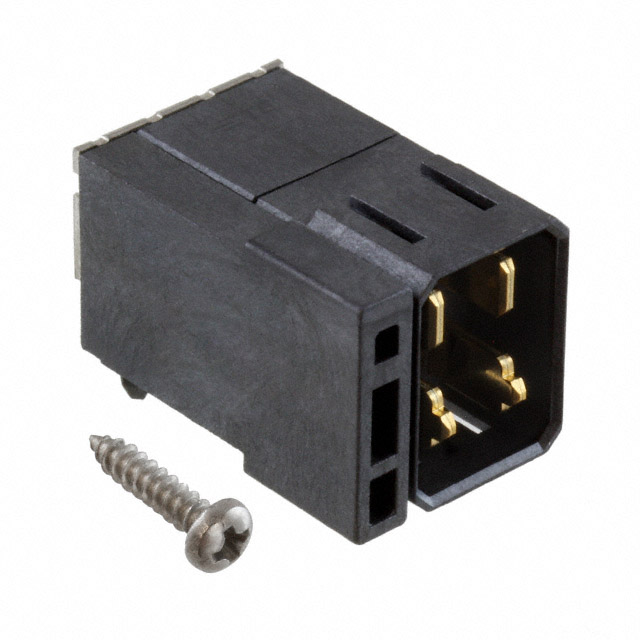

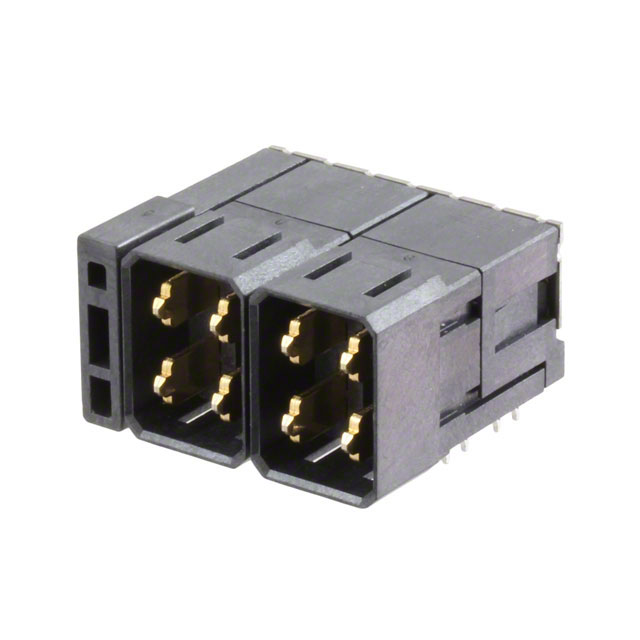

CONN HEADER BLADE PWR EDGE MNT
| Part | Color | Material Flammability Rating | Mounting Type | Features | Connector Type | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Number of Positions Loaded | Contact Finish | Number of Columns | Number of Rows | Termination | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Black | UL94 V-0 | Board Edge Right Angle Through Hole | Board Guide | Header Male Blades | Blade Power | 0.76 Ám | 30 Áin | All | Gold | 4 | 2 | Press-Fit | 15 A | 85 °C | -55 °C |
TE Connectivity Raychem Cable Protection | Black | UL94 V-0 | Board Edge Right Angle Through Hole | Board Guide | Header Male Blades | Blade Power | 0.76 Ám | 30 Áin | All | Gold | 2 | Press-Fit | 15 A | 85 °C | -55 °C | |
 TE Connectivity Raychem Cable Protection | Black | UL94 V-0 | Board Edge Right Angle Through Hole | Board Guide | Header Male Blades | Blade Power | 0.76 Ám | 30 Áin | All | Gold | 2 | 2 | Press-Fit | 15 A | 85 °C | -55 °C |
