SCNRF-6AAN Series
Manufacturer: Suntsu Electronics, Inc
Beta
⌘K
CONN SMA JACK STR 50 OHMS
| Part | Body Finish | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Voltage Rating | Dielectric Material | Number of Ports | Fastening Type | Mounting Type | Impedance | Shield Termination | Connector Style | Features | Contact Termination | Housing Color | Mounting Feature | Center Contact Material | Connector Type | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

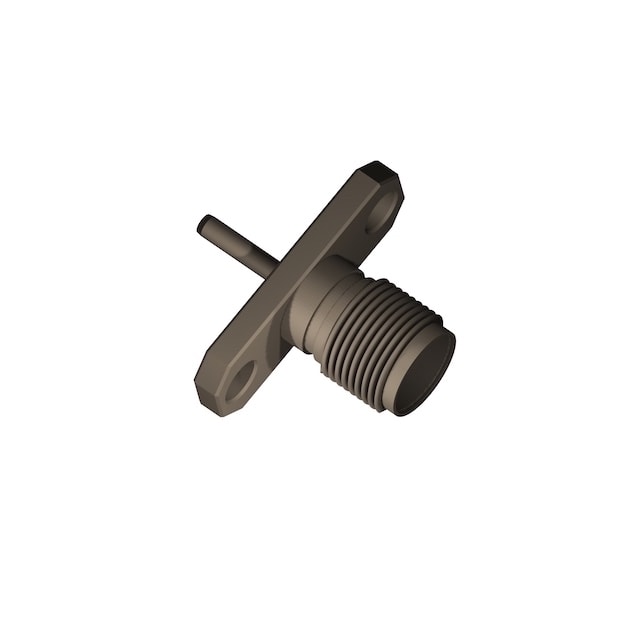

 Suntsu Electronics, Inc | Gold | Brass | -55 C | 85 °C | Gold | 335 V | Polytetrafluoroethylene (PTFE) | 1 | Threaded | Panel Mount | 50 Ohms | Solder | SMA | Extended Insulation | Solder | Gold | Flange | Beryllium Copper | Female Socket Jack | 6000 MHz |

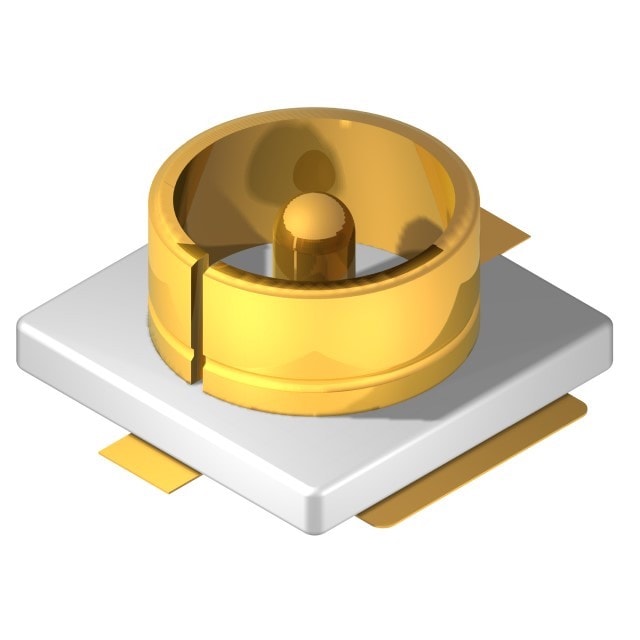

 Suntsu Electronics, Inc | Gold | Brass | -40 C | 90 °C | Gold | 200 V | 1 | Snap-On | Panel Mount | 50 Ohms | Solder | IPEX MHFI Ultra Miniature (UM) Ultra Miniature (UM) I-PEX MHFI | Solder | Gold | Copper Alloy | Female Socket Jack | 6000 MHz |
