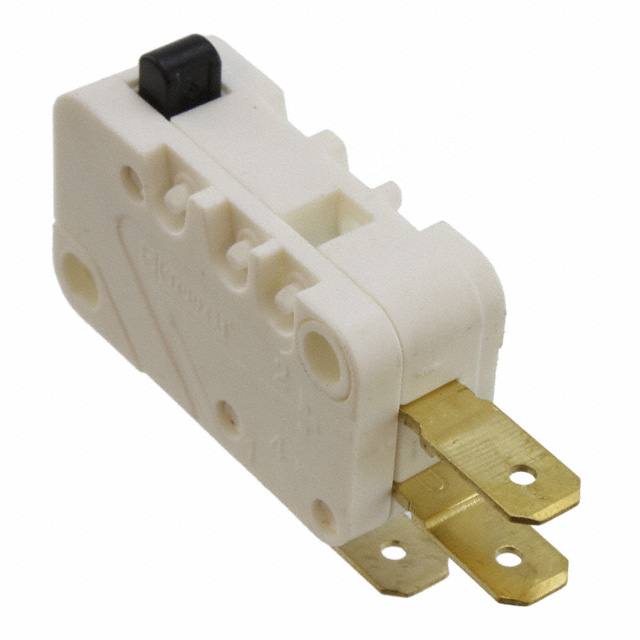

831612 Series
Manufacturer: Crouzet
Beta
⌘K
SWITCH SNAP ACT SPST-NO 20A 250V
| Part | Circuit | Release Force | Operating Force | Termination Style | Actuator Type | Mechanical Life | Mounting Type | Overtravel | Overtravel | Current Rating (Amps) | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Operating Position | Operating Position |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Crouzet | SPST-NO | 20 gf | 82 gf | Quick Connect | Round (Pin Plunger) | 20000000 Cycles | Chassis Mount | 1.2 mm | 0.047 " | 20 A | Off-Mom | -20 ░C | 125 °C | 250 V | 14.7 mm | 0.579 in |
