6453 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

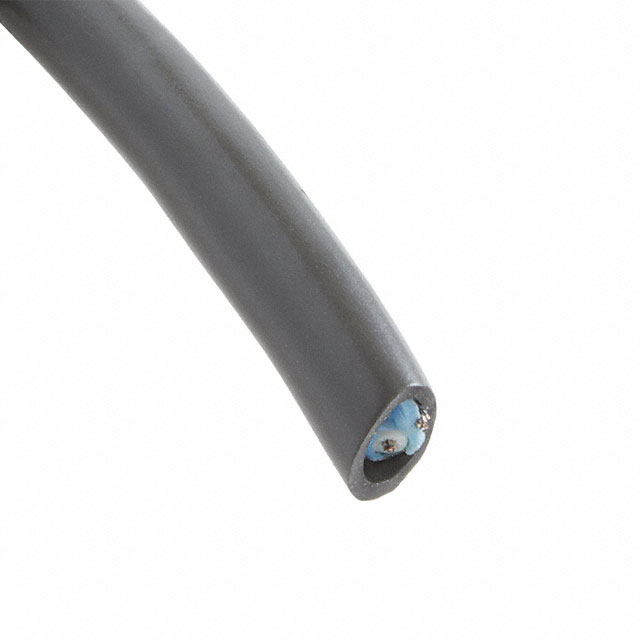

MULTIPAIR CABLE, RS-485, SHIELDED, 1 PAIR, 22 AWG, 0.35 MM², 1000 FT, 304.8 M
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Shield Material | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Jacket Color | Number of Conductors | Voltage | Jacket (Insulation) Material | Shield Coverage | Cable Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | -20 C | 60 °C | 1000 ft | 304.8 m | 7 | 30 AWG | Braid Foil | 1.067 mm | 0.042 in | Copper Tinned | Aluminum Copper Tinned | 22 AWG | 0.284 in | 7.21 mm | High Density Polyethylene (HDPE) | Black | 2 | 300 V | Poly-Vinyl Chloride (PVC) | 65 % 100 % | Multi-Conductor | Drain Wire |
