90309 Series

Catalog

CONN HEADER VERT 16POS 2MM

Part	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Termination	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Insulation Height	Insulation Height	Fastening Type	Contact Material	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Mounting Type	Features	Number of Positions Loaded	Number of Positions	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Insulation Color	Contact Finish - Mating	Number of Rows	Insulation Material	Connector Type	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post
Amphenol ICC (FCI) 90309-516LF	UL94 V-0	4 mm	0.157 in	Solder	Shrouded - 2 Wall	15 µin	0.38 µm	0.079 in	2 mm	Square	5.6 mm	0.22 in	Push-Pull	Copper Alloy	0.122 "	3.1 mm	2 A	Through Hole	Keying Slot	All	16	Male Pin	0.079 in	2 mm	200 V	Cream	Gold GXT™	2	Thermoplastic	Header
Amphenol ICC (FCI) 90309-924LF	UL94 V-0	4 mm	0.157 in	Solder	Shrouded - 2 Wall	8 Áin	0.203 Ám	0.079 in	2 mm	Square	5.6 mm	0.22 in	Push-Pull	Copper Alloy	0.122 "	3.1 mm	2 A	Through Hole	Keying Slot	All		Male Pin	0.079 in	2 mm	200 V	Cream	Gold GXT™	2	Thermoplastic	Header	24
Amphenol ICC (FCI) 90309-022LF	UL94 V-0	4 mm	0.157 in	Solder	Shrouded - 2 Wall	8 Áin	0.203 Ám	0.079 in	2 mm	Square	5.6 mm	0.22 in	Push-Pull	Copper Alloy	0.122 "	3.1 mm	2 A	Through Hole	Keying Slot	All		Male Pin	0.079 in	2 mm	200 V	Cream	Gold GXT™	2	Thermoplastic	Header	22 positions	2 çm	78.7 çin	Tin

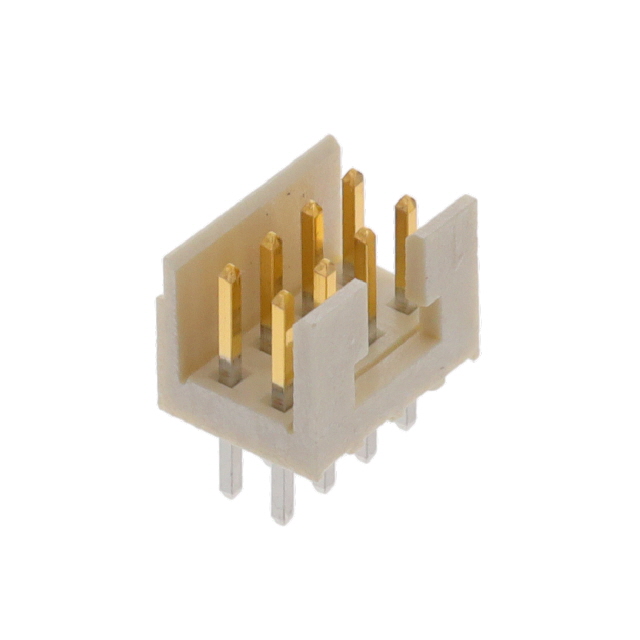

Amphenol ICC (FCI) 90309-108LF	UL94 V-0	4 mm	0.157 in	Solder	Shrouded - 2 Wall	30 Áin	0.76 Ám	0.079 in	2 mm	Square	5.6 mm	0.22 in	Push-Pull	Copper Alloy	0.122 "	3.1 mm	2 A	Through Hole	Keying Slot	All		Male Pin	0.079 in	2 mm	200 V	Cream	Gold GXT™	2	Thermoplastic	Header	8	2 çm	78.7 çin	Tin
Amphenol ICC (FCI) 90309-130LF	UL94 V-0	4 mm	0.157 in	Solder	Shrouded - 2 Wall	30 Áin	0.76 Ám	0.079 in	2 mm	Square	5.6 mm	0.22 in	Push-Pull	Copper Alloy	0.122 "	3.1 mm	2 A	Through Hole	Keying Slot	All		Male Pin	0.079 in	2 mm	200 V	Cream	Gold GXT™	2	Thermoplastic	Header	30	2 çm	78.7 çin	Tin
Amphenol ICC (FCI) 90309-114	UL94 V-0	4 mm	0.157 in	Solder	Shrouded - 2 Wall	30 Áin	0.76 Ám	0.079 in	2 mm	Square	5.6 mm	0.22 in	Push-Pull	Copper Alloy	0.122 "	3.1 mm	2 A	Through Hole	Keying Slot	All		Male Pin	0.079 in	2 mm	200 V	Cream	Gold GXT™	2	Thermoplastic	Header	14	2 çm	78.7 çin	Tin
Amphenol ICC (FCI) 90309-116LF	UL94 V-0	4 mm	0.157 in	Solder	Shrouded - 2 Wall	30 Áin	0.76 Ám	0.079 in	2 mm	Square	5.6 mm	0.22 in	Push-Pull	Copper Alloy	0.122 "	3.1 mm	2 A	Through Hole	Keying Slot	All	16	Male Pin	0.079 in	2 mm	200 V	Cream	Gold GXT™	2	Thermoplastic	Header		2 çm	78.7 çin	Tin
Amphenol ICC (FCI) 90309-608LF	UL94 V-0	4 mm	0.157 in	Solder	Shrouded - 2 Wall	30 Áin	0.76 Ám	0.079 in	2 mm	Square	5.6 mm	0.22 in	Push-Pull	Copper Alloy	0.122 "	3.1 mm	2 A	Through Hole	Keying Slot	All		Male Pin	0.079 in	2 mm	200 V	Cream	Gold GXT™	2	Thermoplastic	Header	8
Amphenol ICC (FCI) 90309-014	UL94 V-0	4 mm	0.157 in	Solder	Shrouded - 2 Wall	8 Áin	0.203 Ám	0.079 in	2 mm	Square	5.6 mm	0.22 in	Push-Pull	Copper Alloy	0.122 "	3.1 mm	2 A	Through Hole	Keying Slot	All		Male Pin	0.079 in	2 mm	200 V	Cream	Gold GXT™	2	Thermoplastic	Header	14	2 çm	78.7 çin	Tin
Amphenol ICC (FCI) 90309-124LF	UL94 V-0	4 mm	0.157 in	Solder	Shrouded - 2 Wall	30 Áin	0.76 Ám	0.079 in	2 mm	Square	5.6 mm	0.22 in	Push-Pull	Copper Alloy	0.122 "	3.1 mm	2 A	Through Hole	Keying Slot	All		Male Pin	0.079 in	2 mm	200 V	Cream	Gold GXT™	2	Thermoplastic	Header	24	2 çm	78.7 çin	Tin
