920-0076 Series
Manufacturer: Schmartboard, Inc.
Beta
⌘K

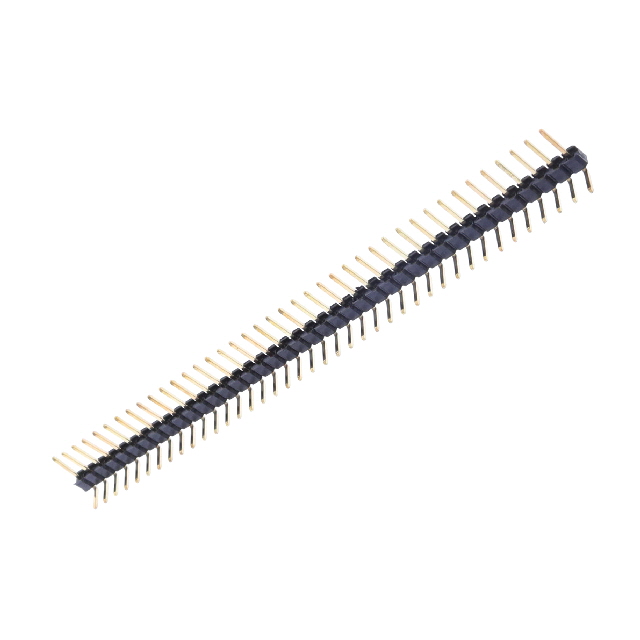

0.1" SPACING 40-SINGLE ROW RIGHT ANGLE HEADERS
| Part | Contact Finish - Post | Number of Positions Loaded | Contact Shape | Number of Positions | Connector Type | Contact Type | Contact Length - Post | Contact Length - Post | Insulation Height | Insulation Height | Mounting Type | Contact Finish - Mating | Contact Length - Mating | Contact Length - Mating | Shrouding | Pitch - Mating | Pitch - Mating | Insulation Color | Termination | Fastening Type | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Schmartboard, Inc. | Gold | All | Square | 40 | Header Breakaway | Male Pin | 0.118 in | 3 mm | 0.1 in | 2.54 mm | Right Angle Through Hole | Gold | 6 mm | 0.236 in | Unshrouded | 0.1 " | 2.54 mm | Black | Solder | Push-Pull | 1 |
