3.5-V to 60-V, 5-A synchronous voltage regulator
3.5-V to 60-V, 5-A synchronous voltage regulator
| Part | Qualification | Frequency - Switching [Max] | Frequency - Switching [Min] | Supplier Device Package | Voltage - Input (Min) [Min] | Voltage - Output (Max) | Voltage - Input (Max) [Max] | Output Type | Number of Outputs | Package / Case | Output Configuration | Topology | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output | Function | Voltage - Output (Min/Fixed) | Mounting Type | Grade | Synchronous Rectifier | Voltage - Output | Outputs and Type | Outputs and Type | Board Type | Utilized IC / Part | Main Purpose | Voltage - Input [Max] | Voltage - Input [Min] | Supplied Contents | Regulator Topology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | AEC-Q100 | 500 kHz | 200 kHz | 30-WQFN (6x4) | 3.5 V | 57 V | 60 V | Adjustable | 1 | 30-WFQFN Exposed Pad | Positive | Buck | -40 °C | 125 ¯C | 5 A | Step-Down | 1 V | Surface Mount Wettable Flank | Automotive | |||||||||||
 Texas Instruments | 500 kHz | 200 kHz | 30-WQFN (6x4) | 3.5 V | 57 V | 60 V | Adjustable | 1 | 30-WFQFN Exposed Pad | Positive | Buck | -40 °C | 125 ¯C | 5 A | Step-Down | 1 V | Surface Mount Wettable Flank | |||||||||||||

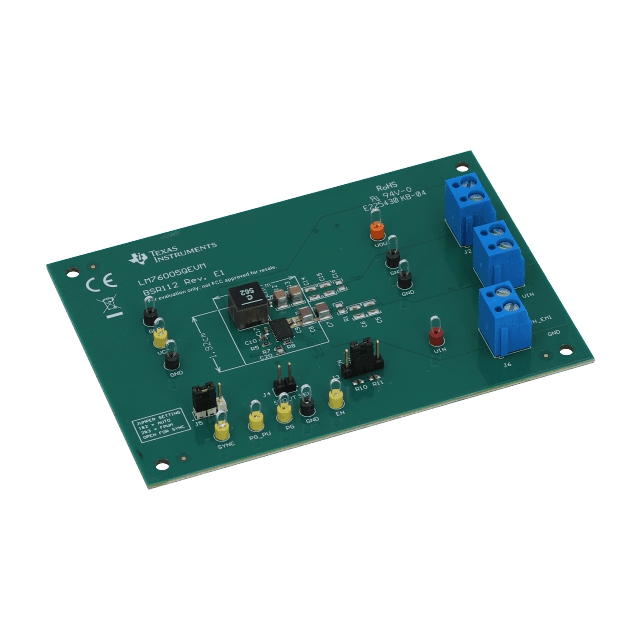

 Texas Instruments | 5 A | 1 V | Non-Isolated | 1 | Fully Populated | LM76005-Q1 | DC/DC Step Down | 60 V | 3.5 V | Board(s) | Buck |
