SN74LVC1GU04 Series

Single 1.65-V to 5.5-V inverter

Catalog

Single 1.65-V to 5.5-V inverter

Part	Logic Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Input Logic Level - High [Max]	Input Logic Level - High [Min]	Package / Case	Input Logic Level - Low [Max]	Input Logic Level - Low [Min]	Supplier Device Package	Number of Inputs	Max Propagation Delay @ V, Max CL [Max]	Number of Circuits	Current - Quiescent (Max) [Max]	Mounting Type	Current - Output High, Low [y]	Current - Output High, Low [x]	Max Propagation Delay @ V, Max CL	Supplier Device Package [x]	Supplier Device Package [y]
Texas Instruments SN74LVC1GU04DBVR	Inverter	5.5 V	1.65 V	-40 °C	125 °C	4.13 V	1.24 V	SC-74A SOT-753	1.38 V	0.41 V	SOT-23-5	1	3.5 ns	1	10 µA	Surface Mount	32 mA	32 mA
Texas Instruments SN74LVC1GU04DCKR	Inverter	5.5 V	1.65 V	-40 °C	125 °C	4.13 V	1.24 V	5-TSSOP SC-70-5 SOT-353	1.38 V	0.41 V	SC-70-5	1	3.5 ns	1	10 µA	Surface Mount	32 mA	32 mA
Texas Instruments 74LVC1GU04DRLRG4	Inverter	5.5 V	1.65 V	-40 °C	125 °C	4.13 V	1.24 V	SOT-553	1.38 V	0.41 V	SOT-5	1	3.5 ns	1	10 µA	Surface Mount	32 mA	32 mA
Texas Instruments SN74LVC1GU04DSFR	Inverter	5.5 V	1.65 V	-40 °C	125 °C	4.13 V	1.24 V	6-XFDFN	1.38 V	0.41 V	6-SON (1x1)	1	3.5 ns	1	10 µA	Surface Mount	32 mA	32 mA
Texas Instruments 74LVC1GU04DBVRG4	Inverter	5.5 V	1.65 V	-40 °C	125 °C	4.13 V	1.24 V	SC-74A SOT-753	1.38 V	0.41 V	SOT-23-5	1	3.5 ns	1	10 µA	Surface Mount	32 mA	32 mA

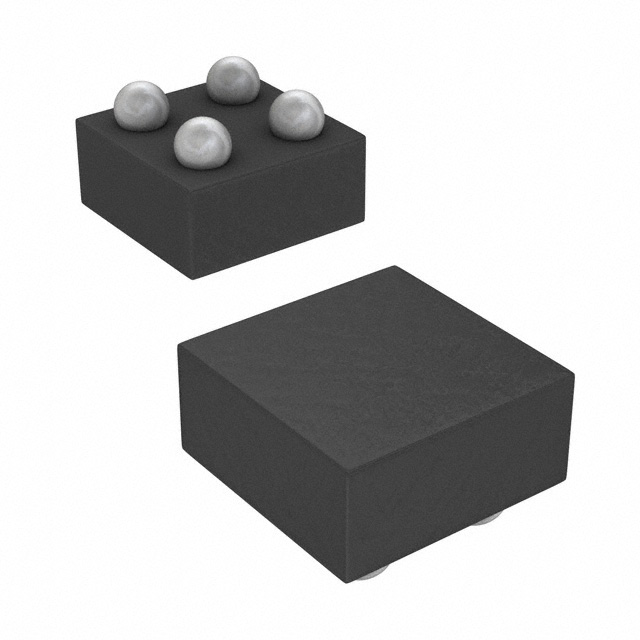

Texas Instruments SN74LVC1GU04YZTR	Inverter	5.5 V	1.65 V	-40 °C	85 °C	4.13 V	1.24 V	4-UFBGA DSBGA	1.38 V	0.41 V	4-DSBGA	1		1	10 µA	Surface Mount	32 mA	32 mA	3 ns	0.9	0.9
Texas Instruments 74LVC1GU04DCKTE4	Inverter	5.5 V	1.65 V	-40 °C	125 °C	4.13 V	1.24 V	5-TSSOP SC-70-5 SOT-353	1.38 V	0.41 V	SC-70-5	1	3.5 ns	1	10 µA	Surface Mount	32 mA	32 mA
Texas Instruments 74LVC1GU04DBVTG4	Inverter	5.5 V	1.65 V	-40 °C	125 °C	4.13 V	1.24 V	SC-74A SOT-753	1.38 V	0.41 V	SOT-23-5	1	3.5 ns	1	10 µA	Surface Mount	32 mA	32 mA
Texas Instruments SN74LVC1GU04DRLR	Inverter	5.5 V	1.65 V	-40 °C	125 °C	4.13 V	1.24 V	SOT-553	1.38 V	0.41 V	SOT-5	1	3.5 ns	1	10 µA	Surface Mount	32 mA	32 mA
Texas Instruments 74LVC1GU04DCKRG4	Inverter	5.5 V	1.65 V	-40 °C	125 °C	4.13 V	1.24 V	5-TSSOP SC-70-5 SOT-353	1.38 V	0.41 V	SC-70-5	1	3.5 ns	1	10 µA	Surface Mount	32 mA	32 mA

Catalog

Single 1.65-V to 5.5-V inverter

Key Features

• Available in the Texas InstrumentsNanoFree™ PackageSupports 5-V VCCOperationInputs Accept Voltages to 5.5 VUnbuffered OutputMaximum tpdof 3.7 ns at 3.3 VLow Power Consumption, 10-µA Maximum ICC±24-mA Output Drive at 3.3 VIoffSupports Live Insertion, Partial-Power-Down Mode, and Back-Drive ProtectionLatch-Up Performance Exceeds 100 mA Per JESD 78, Class IIESD Protection Exceeds JESD 222000-V Human-Body Model (A114-A)200-V Machine Model (A115-A)1000-V Charged-Device Model (C101)Available in the Texas InstrumentsNanoFree™ PackageSupports 5-V VCCOperationInputs Accept Voltages to 5.5 VUnbuffered OutputMaximum tpdof 3.7 ns at 3.3 VLow Power Consumption, 10-µA Maximum ICC±24-mA Output Drive at 3.3 VIoffSupports Live Insertion, Partial-Power-Down Mode, and Back-Drive ProtectionLatch-Up Performance Exceeds 100 mA Per JESD 78, Class IIESD Protection Exceeds JESD 222000-V Human-Body Model (A114-A)200-V Machine Model (A115-A)1000-V Charged-Device Model (C101)

Description

This single inverter gate is designed for 1.65-V to5.5-V VCCoperation. The SN74LVC1GU04 device contains one inverter with an unbuffered output and performs the Boolean function Y =A. NanoFree package technology is a major breakthrough in device packaging concepts, using the die as the package. This single inverter gate is designed for 1.65-V to5.5-V VCCoperation. The SN74LVC1GU04 device contains one inverter with an unbuffered output and performs the Boolean function Y =A. NanoFree package technology is a major breakthrough in device packaging concepts, using the die as the package.
