337-052 Series
Manufacturer: EDAC Inc.
Beta
⌘K

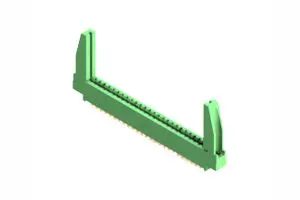

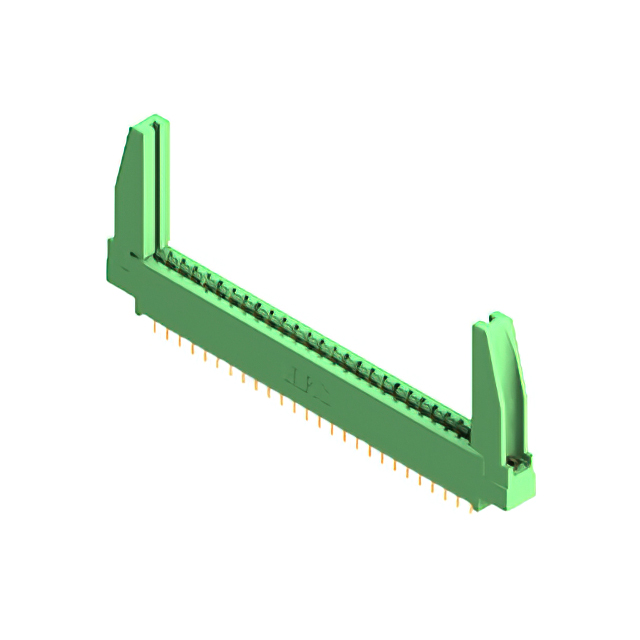

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 52 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Termination Rows [custom] | Gender | Number of Positions/Bay/Row | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Number of Rows [custom] | Color | Number of Positions | Card Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Read Out | Pitch | Pitch | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Mounting Type | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | 26 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 2 | Green | 52 | Non Specified - Dual Edge | Solder | 0.25 Ám | 10 Áin | Dual | 3.96 mm | 0.156 in | Copper Alloy | -40 C | 105 ░C | M3 Threaded Insert Top Mount Opening | Through Hole | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | 26 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 2 | Green | 52 | Non Specified - Dual Edge | Solder Eyelet(s) | 0.25 Ám | 10 Áin | Dual | 3.96 mm | 0.156 in | Copper Alloy | -40 C | 105 ░C | 4-40 Threaded Insert Top Mount Opening | Board Edge Straddle Mount | Card Extender Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | 26 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 2 | Green | 52 | Non Specified - Dual Edge | Solder | 0.25 Ám | 10 Áin | Dual | 3.96 mm | 0.156 in | Copper Alloy | -40 C | 105 ░C | 4-40 Threaded Insert Top Mount Opening | Through Hole | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | 26 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 2 | Green | 52 | Non Specified - Dual Edge | Solder | 0.25 Ám | 10 Áin | Dual | 3.96 mm | 0.156 in | Copper Alloy | -40 C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | Through Hole | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | 26 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 2 | Green | 52 | Non Specified - Dual Edge | Solder | 0.25 Ám | 10 Áin | Dual | 3.96 mm | 0.156 in | Copper Alloy | -40 C | 105 ░C | Through Hole | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | 26 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 2 | Green | 52 | Non Specified - Dual Edge | Solder Eyelet(s) | 0.25 Ám | 10 Áin | Dual | 3.96 mm | 0.156 in | Copper Alloy | -40 C | 105 ░C | Side Mount Opening Unthreaded | Board Edge Straddle Mount | Card Extender | 0.128 " | 3.25 mm |
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | 26 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 2 | Green | 52 | Non Specified - Dual Edge | Solder Eyelet(s) | 0.25 Ám | 10 Áin | Dual | 3.96 mm | 0.156 in | Copper Alloy | -40 C | 105 ░C | M3 Threaded Insert Top Mount Opening | Through Hole | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | 26 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 2 | Green | 52 | Non Specified - Dual Edge | Solder | 0.25 Ám | 10 Áin | Dual | 3.96 mm | 0.156 in | Copper Alloy | -40 C | 105 ░C | 4-40 Threaded Insert Top Mount Opening | Through Hole | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | 26 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 2 | Green | 52 | Non Specified - Dual Edge | Wire Wrap | 0.25 Ám | 10 Áin | Dual | 3.96 mm | 0.156 in | Copper Alloy | -40 C | 105 ░C | Flush Mount Side Opening Unthreaded | Through Hole | 0.128 " | 3.25 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | 26 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 2 | Green | 52 | Non Specified - Dual Edge | Wire Wrap | 0.25 Ám | 10 Áin | Dual | 3.96 mm | 0.156 in | Copper Alloy | -40 C | 105 ░C | M3 Threaded Insert Top Mount Opening | Through Hole |
