RF1-04 Series
Manufacturer: Adam Tech
Beta
⌘K

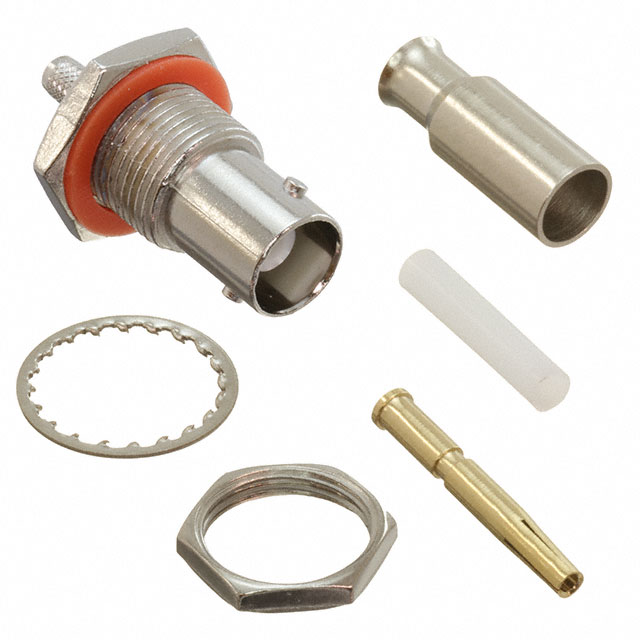

NIPT CRIMP BNC STRAIGHT JACK-RG5
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Center Contact Plating | Voltage Rating | Body Finish | Dielectric Material | Shield Termination | Fastening Type | Center Contact Material | Housing Color | Impedance | Number of Ports | Connector Type | Mounting Type | Features | Contact Termination | Frequency - Max [Max] | Connector Style | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | -65 ░C | 85 °C | Zinc | Nickel | 500 V | Nickel | Polyoxymethylene (POM) | Crimp | Bayonet Lock | Brass | Natural | 50 Ohms | 1 | Female Socket Jack | Panel Mount | Code A | Crimp | 4 GHz | BNC | Bulkhead - Rear Side Nut |
