EPM7128 Series
Manufacturer: Altera
Beta
⌘K
IC CPLD 128MC 10NS 144TQFP
| Part | Package / Case | Number of Gates | Number of I/O | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Supply - Internal [Min] | Voltage Supply - Internal [Max] | Delay Time tpd(1) Max [Max] | Mounting Type | Number of Logic Elements/Blocks | Programmable Type | Number of Macrocells | Supplier Device Package | Number of I/O [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Altera | 144-LQFP | 2500 | 100 | 0 °C | 70 °C | 2.375 V | 2.625 V | 10 ns | Surface Mount | 8 | In System Programmable | 128 | 144-TQFP (20x20) | |
 Altera | 84-LCC (J-Lead) | 2500 | -40 ¯C | 85 C | 4.5 V | 5.5 V | 10 ns | Surface Mount | 8 | In System Programmable | 128 | 84-PLCC (29.31x29.31) | 68 | |
 Altera | 256-BGA | 2500 | 100 | 0 °C | 70 °C | 3 V | 3.6 V | 10 ns | Surface Mount | 8 | In System Programmable | 128 | 256-FBGA (17x17) | |
 Altera | 100-TQFP | 2500 | 84 | 0 °C | 70 °C | 4.75 V | 5.25 V | 10 ns | Surface Mount | 8 | In System Programmable | 128 | 100-TQFP (14x14) | |
 Altera | 144-LQFP | 2500 | 100 | 0 °C | 70 °C | 3 V | 3.6 V | 7.5 ns | Surface Mount | 8 | EE PLD | 128 | 144-TQFP (20x20) | |
 Altera | 160-BQFP | 2500 | 100 | 0 °C | 70 °C | 4.75 V | 5.25 V | 7.5 ns | Surface Mount | 8 | EE PLD | 128 | 160-PQFP (28x28) | |

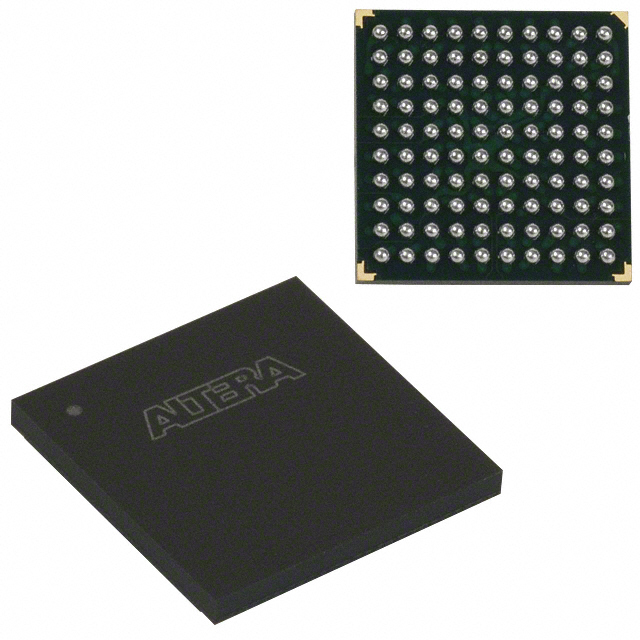

 Altera | 100-LBGA | 2500 | 84 | 0 °C | 70 °C | 3 V | 3.6 V | 10 ns | Surface Mount | 8 | In System Programmable | 128 | 100-FBGA (11x11) | |
Altera | 256-BGA | 2500 | 100 | 0 °C | 70 °C | 3 V | 3.6 V | 7.5 ns | Surface Mount | 8 | EE PLD | 128 | 256-FBGA (17x17) | |
 Altera | 100-BQFP | 2500 | 84 | 0 °C | 70 °C | 4.75 V | 5.25 V | 20 ns | Surface Mount | 8 | EE PLD | 128 | 100-PQFP (20x14) | |
 Altera | 84-LCC (J-Lead) | 2500 | 0 °C | 70 °C | 3 V | 3.6 V | 10 ns | Surface Mount | 8 | EE PLD | 128 | 84-PLCC (29.31x29.31) | 68 |
