TPS65273 Series

Catalog

TPS65273V DC TO DC CONVERTER AND SWITCHING REGULATOR CHIP 1V/1.1V OUTPUT EVALUATION BOARD

Part	Outputs and Type	Outputs and Type	Board Type	Supplied Contents	Voltage - Output	Main Purpose	Regulator Topology	Frequency - Switching	Contents	Utilized IC / Part	Current - Output	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Input (Min) [Min]	Output Configuration	Function	Mounting Type	Frequency - Switching [Min]	Frequency - Switching [Max]	Supplier Device Package	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Output (Max) [Max]	Package / Case	Package / Case [x]	Package / Case [y]	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Voltage - Output (Min/Fixed)	Output Type

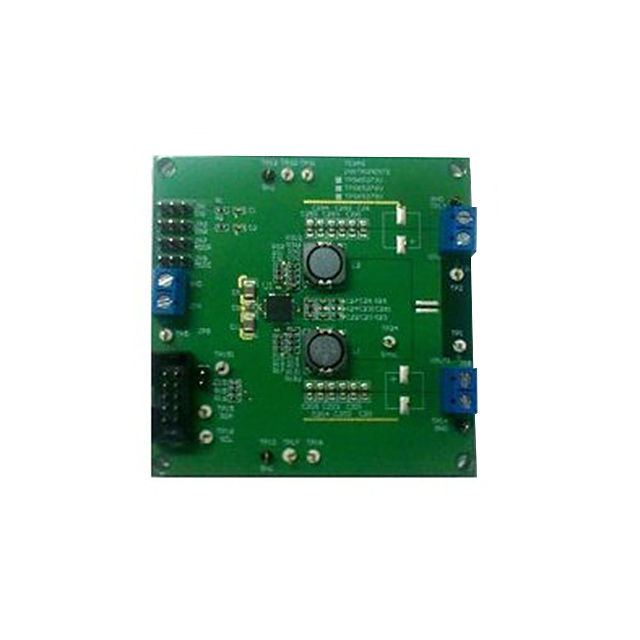

Texas Instruments TPS65273VEVM	2	2 Non-Isolated Outputs Non-Isolated	Fully Populated	Board(s)	1 V 1.1 V	DC/DC Step Down	Buck	500 kHz	Board(s)	TPS65273V	3.5 A	18 V	4.5 V

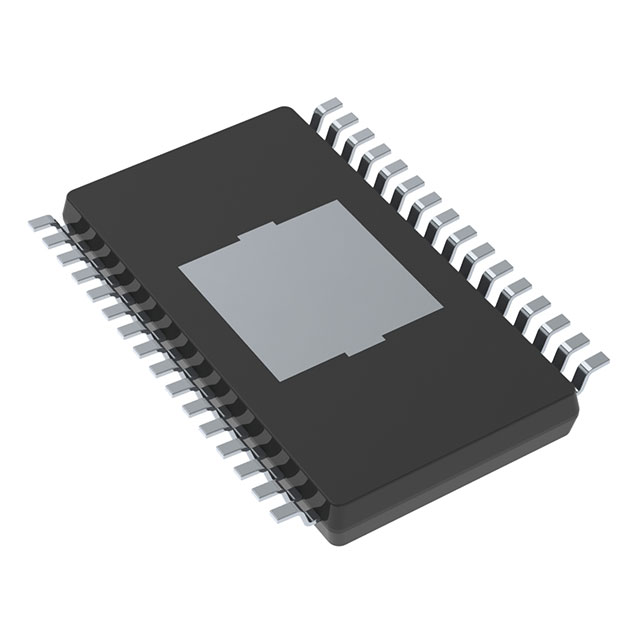

Texas Instruments TPS65273VDAPR											3.5 A			4.5 V	Positive	Step-Down	Surface Mount	200 kHz	1.6 MHz	32-HTSSOP	18 V	2	1.95 V	32-PowerTSSOP	0.24 in	6.1 mm	85 C	-40 ¯C	Buck	0.68 V	Programmable
Texas Instruments TPS65273VRHHR											3.5 A			4.5 V	Positive	Step-Down	Surface Mount	200 kHz	1.6 MHz	36-VQFN (6x6)	18 V	2	1.95 V	36-VFQFN Exposed Pad			85 C	-40 ¯C	Buck	0.68 V	Programmable
Texas Instruments TPS65273VRHHT											3.5 A			4.5 V	Positive	Step-Down	Surface Mount	200 kHz	1.6 MHz	36-VQFN (6x6)	18 V	2	1.95 V	36-VFQFN Exposed Pad			85 C	-40 ¯C	Buck	0.68 V	Programmable

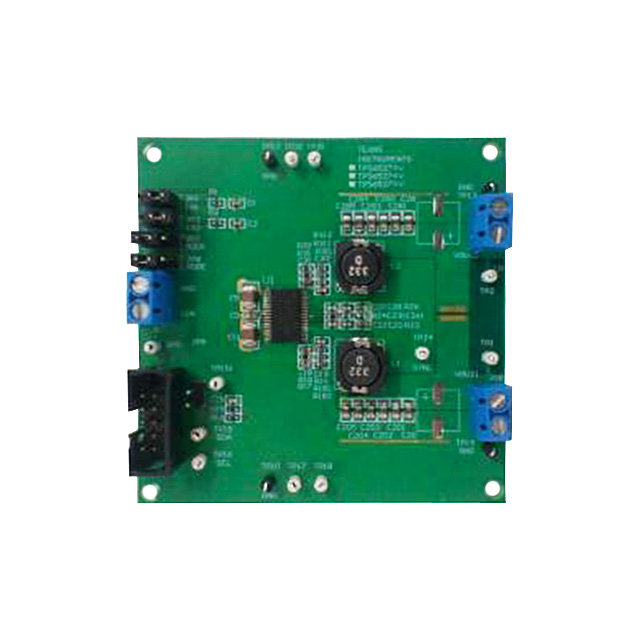

Texas Instruments TPS65273VTEVM	2	2 Non-Isolated Outputs Non-Isolated	Fully Populated	Board(s)	1 V 1.1 V	DC/DC Step Down	Buck	500 kHz	Board(s)	TPS65273V	3.5 A	18 V	4.5 V
