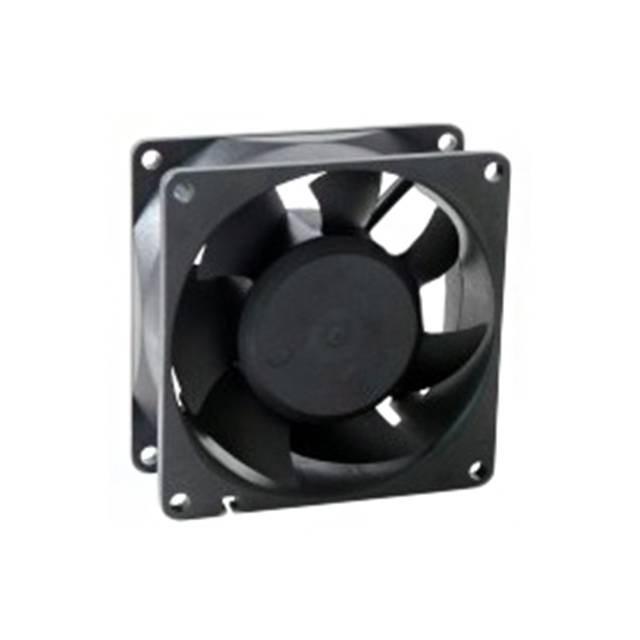

MR8032 Series

Catalog

FAN AXIAL 80X32MM 12VDC WIRE

Part	Current Rating (Amps)	Material - Blade	Material - Frame	RPM	Voltage - Rated	Approval Agency	Noise	Bearing Type	Termination	Fan Type	Weight	Weight	Size / Dimension [z]	Size / Dimension [x]	Static Pressure	Static Pressure	Width [y]	Air Flow	Air Flow	Features
Mechatronics Fan Group MR8032H12B1+6-FSR	0.7 A	Plastic	Plastic	6000 RPM	12 VDC	CE cUL TUV UL	48.6 dB(A)	Ball	4 Wire Leads	Tubeaxial	145.15 g	0.32 lb	80 mm	80 mm	190 Pa	0.763 in H2O	32 mm	2.04 m³/min	73 CFM	Auto Restart PWM Control Speed Sensor (Tach)
Mechatronics Fan Group MR8032H24B2-FSR	0.35 A	Plastic	Plastic	6000 RPM	24 VDC	CE cUL TUV UL	48.6 dB(A)	Ball	3 Wire Leads	Tubeaxial	145.15 g	0.32 lb	80 mm	80 mm	190 Pa	0.763 in H2O	32 mm	2.04 m³/min	73 CFM	Auto Restart Locked Rotor Sensor
Mechatronics Fan Group MR8032E12B-FSR	0.86 A	Plastic	Plastic	6500 RPM	12 VDC	CE cUL TUV UL	50.4 dB(A)	Ball	2 Wire Leads	Tubeaxial	145.15 g	0.32 lb	80 mm	80 mm	221.7 Pa	0.89 in H2O	32 mm	2.21 m³/min	79 CFM	Auto Restart
Mechatronics Fan Group MR8032E24B-FSR	430 mA	Plastic	Plastic	6500 RPM	24 VDC	CE cUL TUV UL	50.4 dB(A)	Ball	2 Wire Leads	Tubeaxial	145.15 g	0.32 lb	80 mm	80 mm	221.7 Pa	0.89 in H2O	32 mm	2.21 m³/min	79 CFM	Auto Restart
Mechatronics Fan Group MR8032H24B-FSR	0.35 A	Plastic	Plastic	6000 RPM	24 VDC	CE cUL TUV UL	48.6 dB(A)	Ball	2 Wire Leads	Tubeaxial	145.15 g	0.32 lb	80 mm	80 mm	189.3 Pa	0.76 in H2O	32 mm	2.04 m³/min	73 CFM	Auto Restart
Mechatronics Fan Group MR8032M24B-FSR	270 mA	Plastic	Plastic	5500 RPM	24 VDC	CE cUL TUV UL	45.2 dB(A)	Ball	2 Wire Leads	Tubeaxial	145.15 g	0.32 lb	80 mm	80 mm	159.4 Pa	0.64 in H2O	32 mm	1.88 m³/min	67 CFM	Auto Restart
Mechatronics Fan Group MR8032L24B1-FSR	0.21 A	Plastic	Plastic	5000 RPM	24 VDC	CE cUL TUV UL	41.6 dB(A)	Ball	3 Wire Leads	Tubeaxial	145.15 g	0.32 lb	80 mm	80 mm	132.8 Pa	0.533 in H2O	32 mm	1.71 m³/min	61 CFM	Auto Restart Speed Sensor (Tach)
Mechatronics Fan Group MR8032L12B1-FSR	0.42 A	Plastic	Plastic	5000 RPM	12 VDC	CE cUL TUV UL	41.6 dB(A)	Ball	3 Wire Leads	Tubeaxial	145.15 g	0.32 lb	80 mm	80 mm	132.8 Pa	0.533 in H2O	32 mm	1.71 m³/min	61 CFM	Auto Restart Speed Sensor (Tach)
Mechatronics Fan Group MR8032M12B2-FSR	0.54 A	Plastic	Plastic	5500 RPM	12 VDC	CE cUL TUV UL	45.2 dB(A)	Ball	3 Wire Leads	Tubeaxial	145.15 g	0.32 lb	80 mm	80 mm	159.4 Pa	0.64 in H2O	32 mm	1.88 m³/min	67 CFM	Auto Restart Locked Rotor Sensor
Mechatronics Fan Group MR8032H12B-FSR	0.7 A	Plastic	Plastic	6000 RPM	12 VDC	CE cUL TUV UL	48.6 dB(A)	Ball	2 Wire Leads	Tubeaxial	145.15 g	0.32 lb	80 mm	80 mm	189.3 Pa	0.76 in H2O	32 mm	2.04 m³/min	73 CFM	Auto Restart
