2M1-SP4 Series
Manufacturer: Carling Technologies
Beta
⌘K

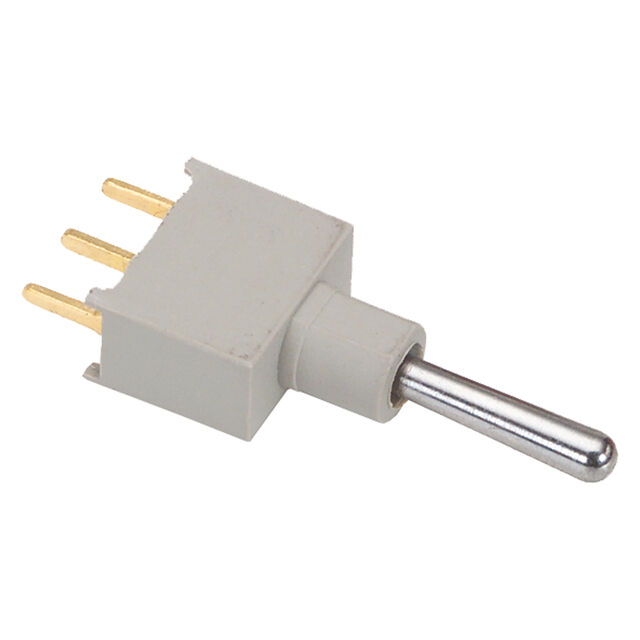

SWITCH TOGGLE SPDT 5A 125V
| Part | Actuator Material | Electrical Life | Termination Style | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Ingress Protection | Bushing Thread | Mounting Type | Features | Voltage Rating - DC | Actuator Type | Voltage Rating - AC | Illumination | Circuit | Actuator Length [x] | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carling Technologies | Brass Chrome Plated | 50000 Cycles | PC Pin | Mom-Off-Mom | 85 °C | -30 ░C | 5 A | IP67 - Dust Tight Waterproof | Unthreaded | Right Angle Through Hole | Epoxy Sealed Terminals | 28 V | Standard Round | 125 V | Non-Illuminated | SPDT | 10.4 mm | |
 Carling Technologies | Brass Chrome Plated | 50000 Cycles | PC Pin | Mom-Off-Mom | 85 °C | -30 ░C | 5 A | IP67 - Dust Tight Waterproof | 15/32-32 | Panel Mount | Epoxy Sealed Terminals | 28 V | Anti-Rotation | 125 V | Non-Illuminated | SPDT | 17.5 mm | 11.91 mm |
