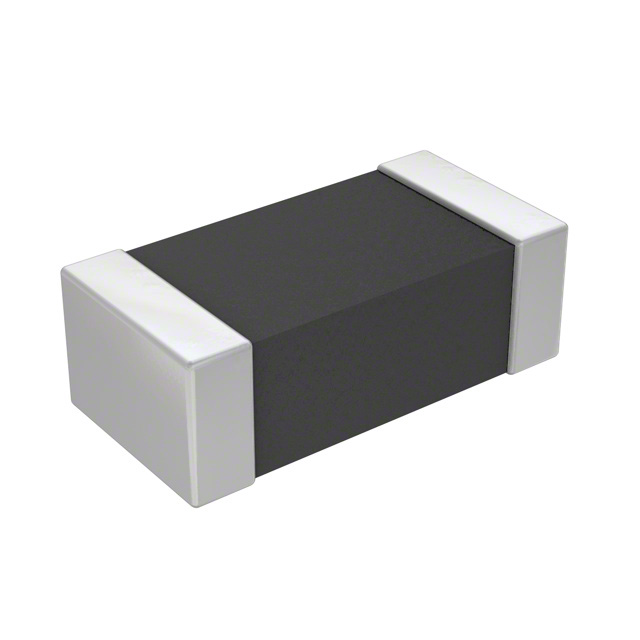

MZ2029 Series

Catalog

FERRITE BEAD 1 KOHM 0805 1LN

Part	DC Resistance (DCR) (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [Max] [z]	Height (Max) [z]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Lines	Package / Case	Impedance @ Frequency	Filter Type	Current Rating (Max) [Max]	DC Resistance (DCR) (Max)	Current Rating (Max)
Bourns Inc. MZ2029-102Y	450 mOhm	0.079 in	0.047 in	1.2 mm	2 mm	0.043 in	1.1 mm	-55 C	125 °C	Surface Mount	1	0805	1 kOhms	Power Signal Line	100 mA
Bourns Inc. MZ2029-202Y		0.079 in	0.047 in	1.2 mm	2 mm	0.043 in	1.1 mm	-55 C	125 °C	Surface Mount	1	0805	2 kOhms	Power Signal Line		600 mOhm	50 mA
